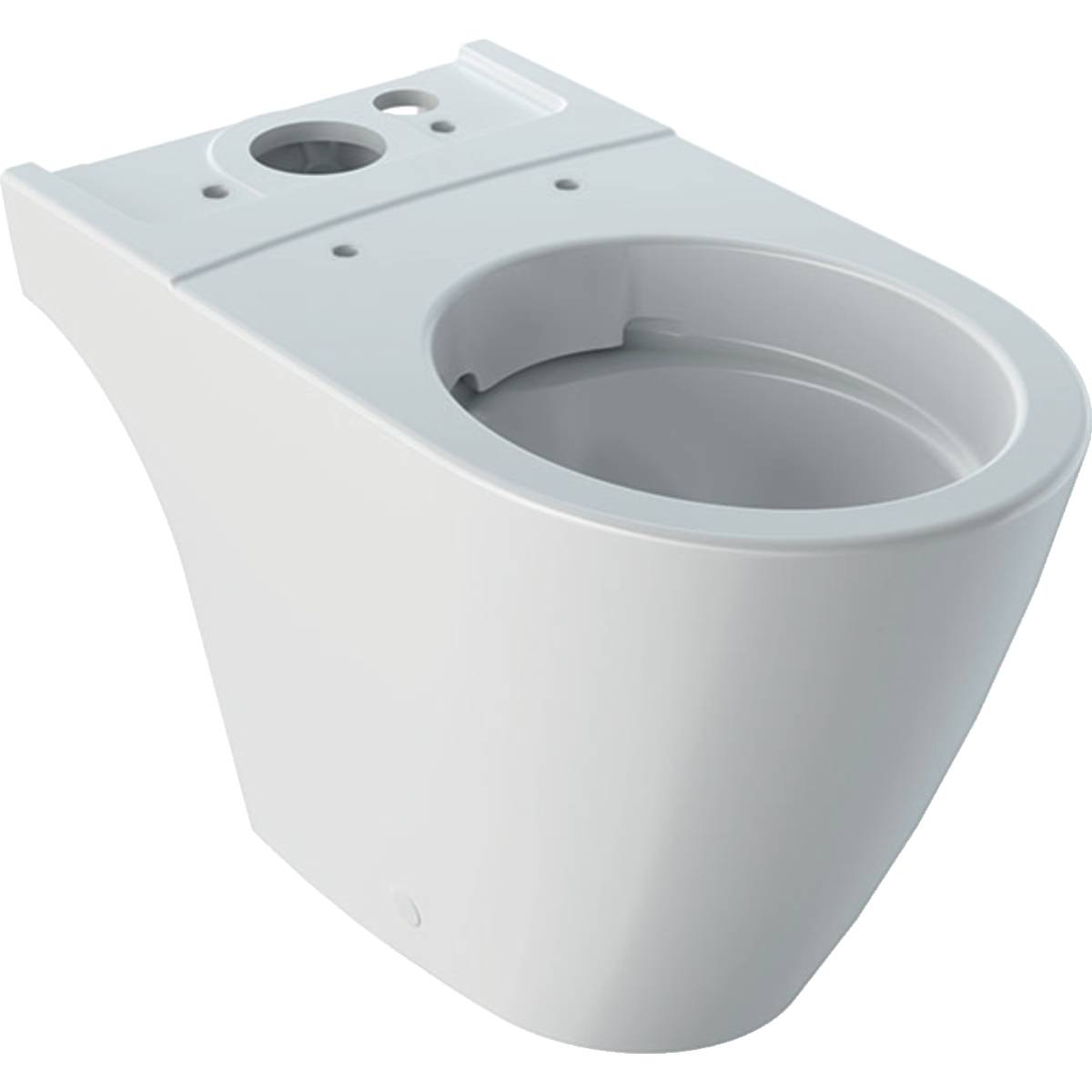

iCon Floor-Standing WC For Close-Coupled Exposed Cistern, Washdown, Shrouded, Rimfree

iCon Floor-Standing WC For Close-Coupled Exposed Cistern, Washdown, Shrouded, Rimfree

Verified by manufacturer 8 months ago

Geberit Sales Ltd

Floor-standing WC for close-coupled exposed cistern.

Jump to:
+44 (0)1926 516800 www.geberit.co.uk

Application

For close-coupled exposed cistern.

Description

Floor-standing WC for close-coupled exposed cistern.


Features and benefits:

  • Rimfree.
  • Floor-standing.
  • Washdown WC.
  • Type 1, full flush volume 6 L, in accordance with EN 997.
  • Multidirectional outlet.
  • Hidden fastening.
  • Shrouded.

General information

Color

White

Material

Vitreous china

Length

635 mm

Width

355 mm

Height

400 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Pedestal, washdown.

Pan height

355 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Multi-directional.

Seat holes

Standard pattern.

Integral accessories

Fastening material.

Cistern

Not required.

500.409.01.1, iCon exposed cistern, close-coupled, dual flush, bottom water supply connection, white.

Seats

Not required.

574120000, iCon seat & cover, white.

574130000, iCon soft close seat & cover, white.

500.670.01.1, iCon soft close seat & cover with quick release hinges, white.

574950000, iCon slim soft close seat & cover, white.

Show more

Standard

WC flushing cisterns.

To BS EN 14055.
