IAE PlasProtek Bollard
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type

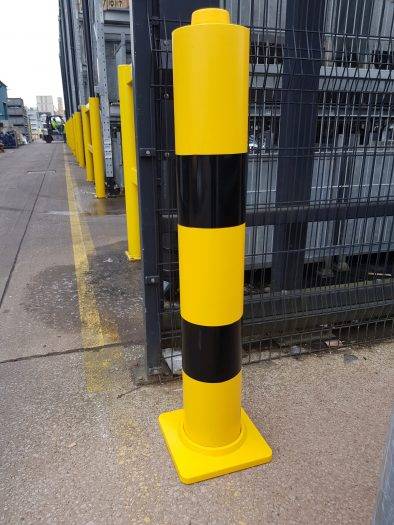

Highly visible protection bollard for demarcation and safety.
Application
Suitable for industrial and commercial environments, IAE’s PlasProtek Plastic Bollard is particularly suitable for protecting pedestrian walkways and equipment.
The plastic sleeved steel core bollard provides a highly visible barrier which reduces the risk of both physical injury to staff and damage to machinery.
The bollards are suitable for use in warehouses, manufacturing facilities and distribution centres.
Description
Key points:
- High visibility protection bollard
- Replaceable plastic sleeve
- Fixed steel core
- Shock absorbing air gap
- Available in high volume
Details:
IAE’s PlasProtek Bollard is a plastic sleeved steel core unit for protecting pedestrian zones and equipment.

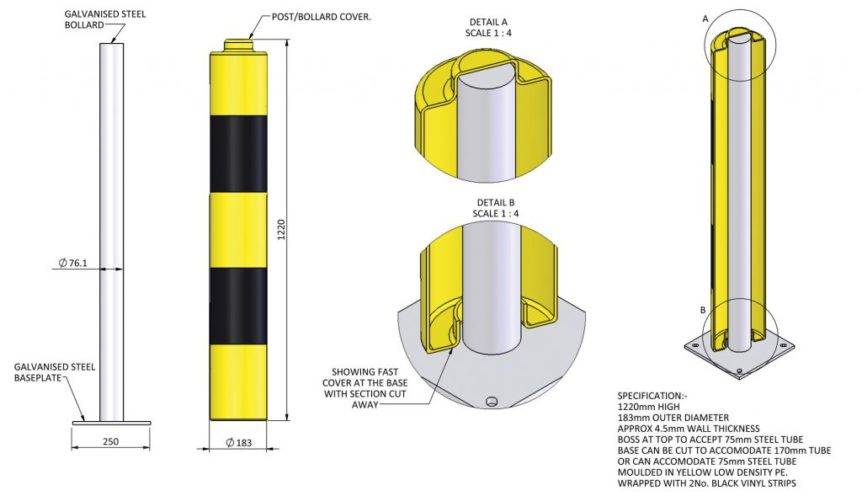

The PlasProtek bollard unit is made up of a tubular steel core welded to a bolt down base plate, with a removable LDPE plastic cover sleeve.
The tubular steel core is 76 mm diameter circular hollow section.
The cover sleeve is 1200 mm high and 183 mm in diameter.
These dimensions leave an air gap between the steel core and outer sleeve that allows a measure of shock absorption, so that light impacts don't damage the centre core or the ground fixings, requiring expensive replacement and repair work.
The sleeve is left loose to rotate freely around the core allowing glancing blows roll off without damaging the inner core.
The sleeve is bright yellow and includes 2no. black bands for maximum visibility.
If the sleeve is scratched or damaged, it can be simply slid off and replaced with a new one.
The bollards are typically used in groups either along pedestrian walkways to highlight and define pedestrian zones or around machinery and equipment. They can also be used near doorways and against structural columns and racking to highlight edges and guard against impact.
The bollards are an effective way to minimise the risk of injury to workers and minimise the risk of damage to equipment and buildings.
Specifying IAE’s PlasProtek Bollard:
The PlasProtek Bollard is an exclusive product to IAE’s Industrial Fit Out Division.
The bollards are produced in high volume and have been installed in facilities across the UK.
General information
Color | Yellow Black |
Finish | Galvanized |
Material | Steel Low density polyethylene (LDPE) |
Shape | Circle |
Length | 1220 mm |
Width | 183 mm Manufacturer guidanceDiameter. |
Height | 1220 mm |
Warranty description | Two year |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Specification data - Plastics bollards
Material | Low density polyethylene. |
Steel reinforcement | Tubular steel core. |
Dimensions | |
Size and profile | Steel core: 76 mm diameter; Cover sleeve: 183 mm diameter. |
Height | 1220 mm. |
Top profile | Stepped. |
Base | Baseplate, 250 x 250 mm.Manufacturer guidanceBase plated for bolt down. |
Finishes | |
Colour | Yellow. |
Applied finishes | Black vinyl strips. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/kg Self declared |
Recyclability | Highly recyclable carbon steel core |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
IAE PlasProtek Bollard Specification Sheet
Case studies
PlasProtek Bollard Cover Sleeve - Bristol
