IAE Lightwood Smoking Shelter
Verified by manufacturer 1 month ago
ISO 9001 Quality Management
Certificate type

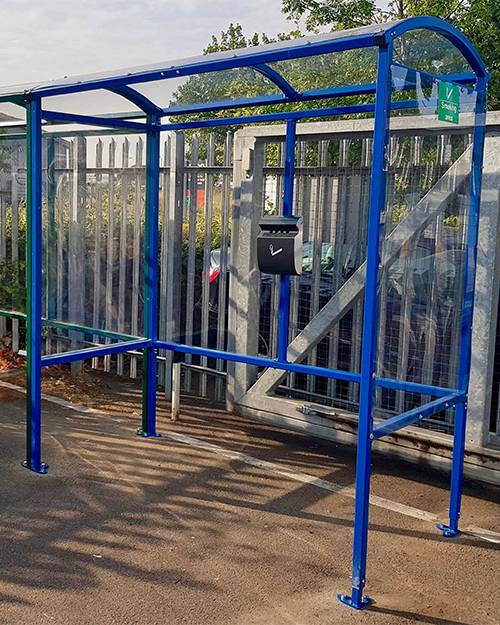

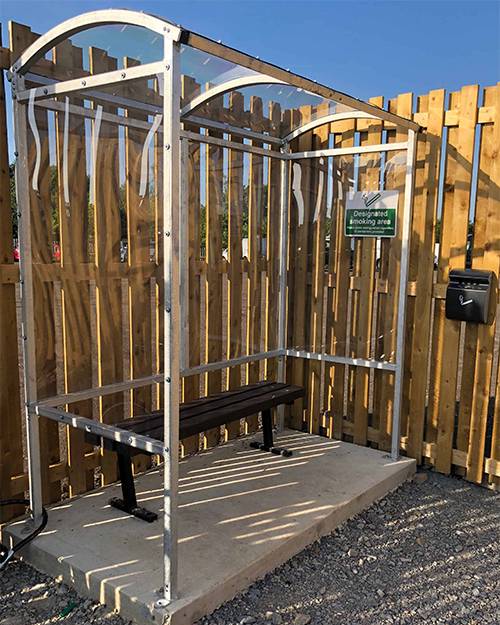

A steel-framed, 3 person smoking shelter. With UV resistant PETG cladding.
Application
Suitable for providing a sheltered smoking area for small industrial or commercial sites. The IAE lightwood shelter has a capacity of up to 3 people.
Perfect for small university campuses and workplaces, bus stops and anywhere a small sheltered smoking/waiting area is required.
A range of accompanying IAE furniture is available.
Description
The Lightwood Smoking Shelter provides a cost effective smoking shelter suitable for up to 3 people, in a wide range of environments.
Perfect for small university campuses and workplaces, bus stops and anywhere a small sheltered smoking/waiting area is required.
The IAE Lightwood smoking shelter is fitted with UV resistant PETG roof panels as standard, that resist discolouring due to sun exposure, and the galvanized steel frame will resist rust and corrosion. This allows our shelters to last for a long time, even in the worst of conditions.
Features and benefits:
- Cost effective solution for sheltered smoking/waiting areas.
- Robust 40x40mm SHS steel frame assembled with anti-tamper bolts.
- 3 mm UV resistant PETG cladding.
- Adjustable feet for easy on-site levelling.
- Compliant with all smoking legislation.
- Hot dip galvanized to BS EN ISO 1461.
Options:
- Powder-coating to a wide range of colours.
- A range of accompanying IAE furniture available.
General information
Color | Black Blue Green Grey Yellow |
Finish | Powder-coated Galvanized |
Material | Steel Polyethylene |
Shape | Rectangle |
Length | 2150 mm |
Width | 1100 mm |
Height | 2355 mm |
Warranty description | Two year |
Uniclass | |
CAWS | B91/390 Smoking shelter |
Specification data - Semi-closed shelters
Shelter description | Rectangular, with curved roof. |
Dimensions | |
Plan size | 2000 x 950 mm. |
Height | 2244 mm. |
Frame | |
Material | Structural steel.Guidance for specification option: 50 x 50 mm SHS frame. |
Finish | Galvanized.Guidance for specification option: As standard. Galvanized and powder-coatedGuidance for specification option: Optional. |
Colour | RAL 1021.RAL 5015.RAL 6005.RAL 7016.RAL 9005. |
Cladding | |
Material | Polyethylene terephthalate glycol (PETG) and perforated arch plate. |
Colour | Clear. |
Roof covering | Polyethylene terephthalate glycol (PETG). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/kg Self declared |
Recyclability | 80 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
