IAE Duex Mesh Guard Barrier
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type
Internal mesh safety barrier system for guarding mezzanine edges and hazardous areas.
Application

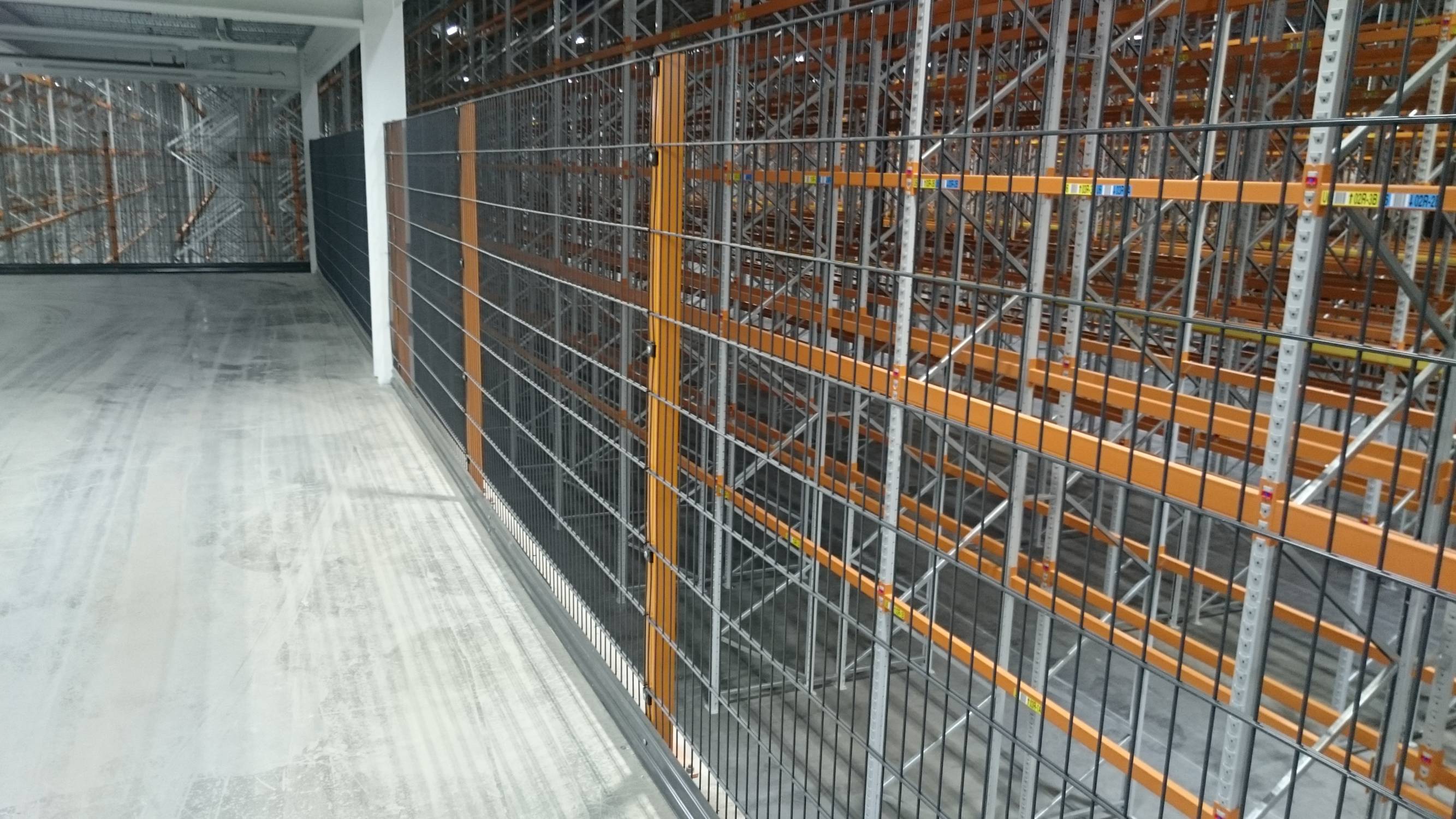

Primarily used as a safety barrier for warehousing and manufacturing facilities, IAE’s Duex Mesh Guard Barrier provides a guard against falls from height, and other potentially hazardous areas.
This version of the system includes a full height welded mesh panel and is designed for guarding mezzanine edges and other potential hazards, such as machinery and handling equipment.
The system can also be used to restrict access to vulnerable areas and provide a basic level of security inside a facility.
Description
IAE’s Duex Mesh Guard Barrier system is designed to provide protection against falls and potentially hazardous areas.
The system has been load tested up to 1.5 kN/m in line with BS 6180:2011 Barriers in and about buildings guidelines. This ensures the system is suitable for areas such as balconies, mezzanines and platforms in industrial manufacturing and warehouse storage buildings.

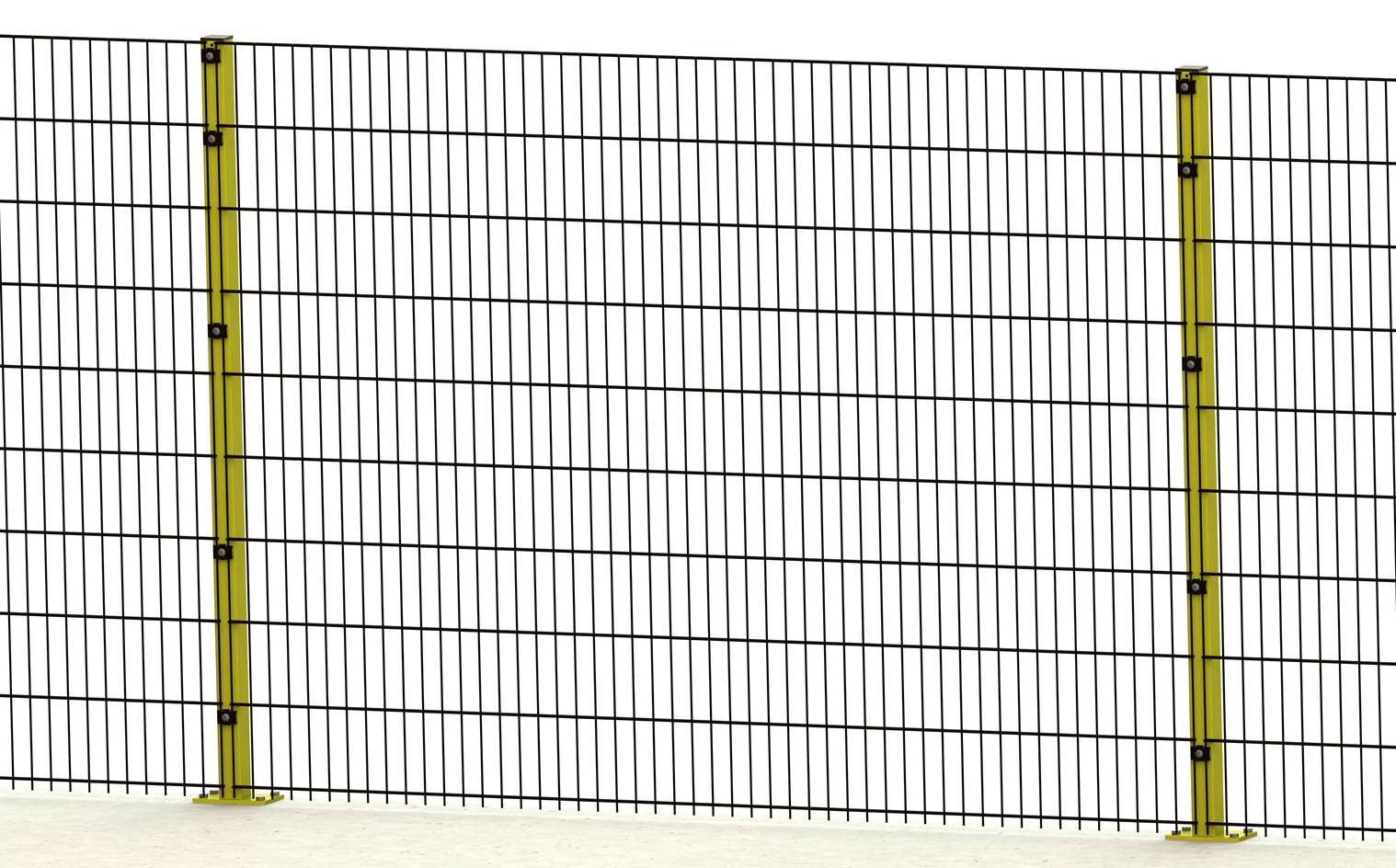

The barrier is made up of bolt down posts and welded mesh panels.
Features and benefits:
- Mesh safety barrier.
- Fall protection .
- Machinery guarding.
- 1800 mm high.
- Load tested to BS 6180:2011 at 1.5 kN/m.
- Security fittings.
- Matching handrail system available.
Specification:
Standard posts are 60 x 60 x 2 mm square hollow section uprights with a welded 10 mm thick base plate. The base plates are slotted so the posts can be secured to the floor with 4 no. M12 anchors bolts.
The base plates are offset so the plate is positioned behind the fence line, which avoids creating a trip hazard in the walkway.
The mesh panel is an IAE Duex 656 welded mesh panel, made up from 5 mm vertical wires, and twin 6 mm horizontal wires.
The support posts and welded mesh panels create a full area barrier 1800 mm high.
The mesh panel is fixed to the posts using fencing clips and M8 security bolts threaded into inserts in the post.
Components are manufactured from carbon steel and galvanized to BS EN 1461 as standard.
The standard powder coated finish for the system is RAL 1021 yellow for the posts, and RAL 9005 black for the mesh panel.
Access gates:
The system can be supplied with manual swing access gates to provide access to fenced off areas when necessary.
Access gates are typically supplied with either digital keypad or key access, and quick release push pad escape locking mechanisms to restrict access to hazardous areas.
Specifying IAE Duex Mesh Guard Barrier:
IAE Duex Mesh Guard Barrier is a standard system of IAE’s Fencing Division.
The system has been installed in many facilities across the UK, is tried and tested, and can be specified with confidence.
General information
Color | Black Yellow Green |
Finish | Powder-coated |
Material | Carbon steel |
Shape | Rectangle |
Length | 2530 mm Guidance for specification option: Per standard bay. |
Width | 120 mm Guidance for specification option: Across base plates. |
Height | 1800 mm |
Warranty description | Two year |
Uniclass | |
CAWS | Q40/220 Steel fencing K30/170 Mesh panel partitions |
Specification data - Welded metal mesh
Material | Carbon steel.Guidance for specification option: Galvanized to BS EN 1461. |
Dimensions | |
Mesh size | 120 mm.Guidance for specification option: Width across base plates. |
Wire diameter | 5 mm (vertical); 6 mm (horizontal). |
Height | 1800 mm. |
Finish | Powder-coated. |
Colour | RAL 1021 yellow (posts); RAL 9005 black (mesh). |
Posts | 60 x 60 x 2 mm. |
Length | 2530 mm. Guidance for specification option: Per standard bay. |
Load | To BS 6180:2011, 1.5 kN/m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/kg Self declared |
Recyclability | 95 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
