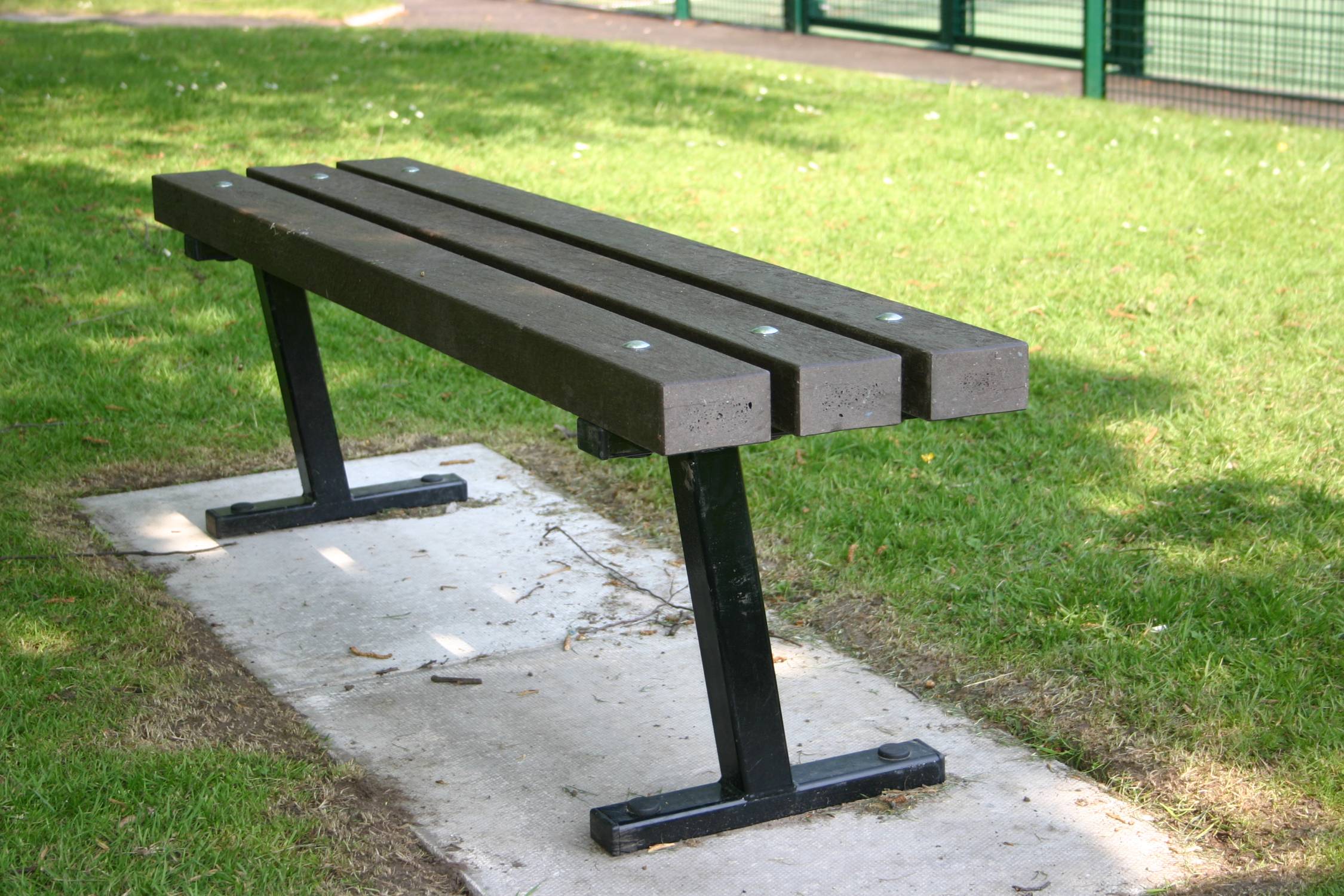

IAE Alton Recycled Plastic Bench

Verified by manufacturer 1 month ago

IAE Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Durable outdoor bench for industrial sites and open areas. 100% Recycled plastic pales.

Jump to:
BOS
+44 (0)1782 339320 Website

Application

The IAE Alton Bench provides seating for up to 3no adults, and is suitable for all outdoor environments.


With a simple, robust and cost-effective design, the Alton bench is able to withstand frequent use in high traffic areas, making it ideal for industrial and commercial spaces.


The Alton bench is commonly used to provide seating in smoking and break areas, creating a comfortable spot for staff and employees to relax away from their workstation.


The bench will withstand harsh weather, and so can be installed in open areas, but is typically fitted underneath shelters or canopies.


Typical use scenarios include:

  • Industrial Units
  • Warehouses
  • Factories
  • Manufacturing Facilities

Description

Manufactured by IAE in the United Kingdom.


Alton Benches are held in stock and available for immediate despatch.


The IAE Alton Bench is a highly durable seat manufactured from steel and solid recycled plastic profile.


2no welded steel frames provide the support, while 3no recycled plastic profiles provide the seat. The components are held together using standard galvanised fasteners.


Plastic profile was chosen for the seat as it is warmer to the touch than steel, while being more durable than standard wooden benches.


The 2no steel end frames are welded together and hot dip galvanised to BS EN ISO 1461 specification (with the option of black RAL 9005 polymer powder coating) to prevent corrosion.


The 3no plastic profiles are 1500x100x50mm solid recycled plastic boards with an imitation grain finish. The solid plastic material eliminates the risk of chipping, cracking or splintering typically associated with wood or veneer finishes.


The bench is supplied loose to minimise carriage and storage costs, and is easily assembled on site.


The bolt-down support frames are suitable for securing to any solid surface, and can easily be removed and repositioned as needed.

General information

Color

Brown

Black

Finish

Powder-coated

Galvanized

Material

Steel

Plastic

Shape

Rectangle

Length

1500 mm

Width

350 mm

Height

445 mm

Warranty description

Two year

Uniclass

Pr_40_30_29_84 Street and site benchesPrimary

CAWS

Q50/33 Benches

Q50/220 Benches

Specification data - Street and site benches

Length

1500 mm.

Base

Support frame bolted to the ground.

Material

Steel and 100% recycled plastic.

Finish as delivered

Galvanized to BS EN ISO 1461.

Galvanized to BS EN ISO 1461 and powder-coated.

Colours

Not applicable.

Guidance for specification option:

Galvanized only.

RAL 9005 Black.

Manufacturer guidance

Plastic parts are brown in colour.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/kg

Self declared

Recyclability

Highly recyclable materials

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Certificate
