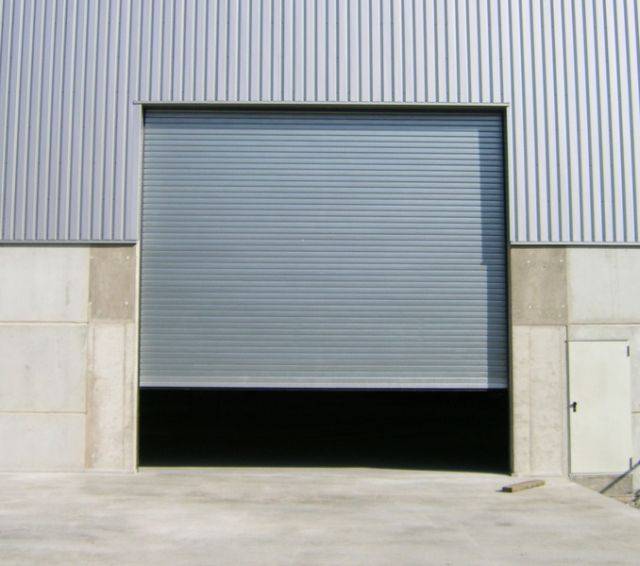

i100 Elite SR4 Steel Security Shutter

Name: i100 Elite SR4 Steel Security Shutter
Brand: Roché Systems Ltd
SKU: hvw3rwvJ17SdfoK2xj93nj

Verified by manufacturer 11 days ago

Roché Systems Ltd

Third party certifications:

Secured By Design
Certificate type
QA Certificate
Certificate type

LPCB SR4 insurance approved steel security roller shutter with 81 mm high slats.

Jump to:

BOS

03330347967 Website

Application

Suitable for high security commercial sites where burglary resistance is a priority.

Description

LPCB SR4 insurance approved double skinned steel security roller shutter with 81 mm high slats.

Features and benefits:

Tested by the Loss Prevention Certification Board (LPCB) to LPS 1175 (7.0) SR4 and awarded insurance approved 'Secured by Design' status.
Galvanized steel bottom rail with rubber weather seal.
Span up to 3 m in width and an area up to 35 m² (Outboard motor required).
Bullet locking system fixed to each guide channel.
Suitable for internal face fix only.
Guide channel depth: 85 mm.

General information

Color	- Manufacturer guidance Galvanized finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). Consult manufacturer and insert requirements.
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_84_73 Roller shuttersPrimary
CAWS	L20/60 Doors L20/610 Roller shutters/ curtains

Product range	High Security Steel Shutters

Specification data - Roller shutters

Opening sizes	3000 x 5000 mm. Guidance for specification option: Available up to 3000 x 5000 mm (w x h). 4m² (tubular) or 35m² (outboard). Manufacturer guidance Enclosure size (internal face fix): Dependent on height. <2600 mm: 400 mm. 2600–3500 mm: 450 mm. 3600–5000 mm: 600 mm.
Arrangement	Vertical, external face fix. Vertical, internal face fix. Vertical, reveal fix.
Shutter curtain.	-
Lath material	22 mm thick flat double skinned steel, 100 mm in height. Bottom slat: Steel with brush weather seals.
Profile	81 mm.
Finish and colour	Galvanized. Guidance for specification option: Standard. Polyester powder coated, BS. Guidance for specification option: Insert colour requirement. Polyester powder coated, RAL. Guidance for specification option: Insert colour requirement.
Frame and guides	-
Material	Enclosure: Roll formed steel with end plates. Guide channels: 85 mm deep steel.
Finish	Galvanized. Guidance for specification option: Standard. Polyester powder coated, BS. Guidance for specification option: Insert colour requirement. Polyester powder coated, RAL. Guidance for specification option: Insert colour requirement.
Colour	- Manufacturer guidance Galvanized finish as standard. Option to powder coat any RAL/ BS colour (surcharge applies).
Operation	-
Mode	GfA three phase motor with push button control. NRG Economy tubular motor with internal rocker or external key switch.
Control	Push button. Key switch.
Accessories	None. Crank handle. Manual override facility. Manufacturer guidance Numerous control option variants such as group, remote or mobile phone activation are available.
