I-Swim 3 - Pool Hoist

Verified by manufacturer 5 months ago

W8022001-01 STD - 180 kg - Fix Seat

CareSpaces by Wealden Rehab Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

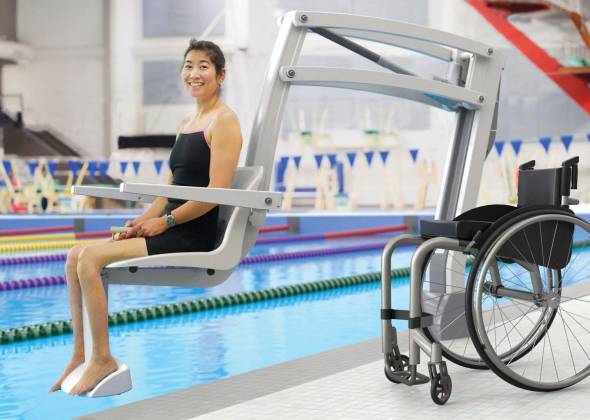

The I-Swim 3 is a flexible pool hoist for wellness and rehab facilities, offering 180/250kg lift capacity, various seat options, and a 360° rotation.

Jump to:
BOS
+44 (0)1634 949988 Website

Application

The I-Swim 3 is primarily designed for the transfer of disabled individuals to and from pools, making it an essential facility in a wide range of pool deck areas, particularly in leisure & wellness centres and rehabilitation centres. Its applications include:


  1. Versatility in Pool Types: The lift can be easily configured for use in both above-ground or in-ground pools and spas, providing architects with a flexible solution for different pool designs.
  2. Customisable for User Needs: With options for a spreader bar, fixed seat, removable seat, or removable stretcher, the I-Swim 3 can be tailored to meet the specific needs of users, offering architects a product that can adapt to various user requirements.
  3. Ease of Use for Pool Assistants: Equipped with a detachable and rechargeable battery, the I-Swim 3 brings a new level of convenience to pool access. Its powered lift, lower, and rotation capabilities ensure smooth and confident transfers, which is a significant consideration for architects when designing user-friendly and accessible pool environments.

Description

The I-Swim 3 is a state-of-the-art pool lift, designed with innovation and versatility to cater to a variety of needs. This smart solution is particularly suitable for pool decks, leisure & wellness centres, and rehabilitation facilities. It boasts a range of features and benefits:


  1. Flexibility in Configuration: The lifting boom arms of the I-Swim 3 are designed for great flexibility, offering multiple configurations to accommodate both above-ground and in-ground pools. The arms can be adjusted into four different positions to suit various pool deck designs.
  2. Variety in Sizes: The product is available in two sizes - Standard, which has a lifting capacity of 180 kg, and Maxi, which can lift up to 250 kg. This range ensures that the lift can accommodate a broad spectrum of users.
  3. Seating and Stretcher Options: The I-Swim 3 can be equipped with different types of seating - a fixed seat, a removable seat, or a stretcher, providing versatility in its application.
  4. 360° Powered Rotation: It features a powered rotation mechanism that can rotate 360 degrees, facilitating easy and convenient operation.
  5. Powered Lifting and Lowering: The lift's powered lifting and lowering capability enhances its functionality, making it easy to use.
  6. Detachable, Rechargeable Battery Pack: The inclusion of a detachable and rechargeable battery pack adds to the practicality and ease of use.
  7. Customisable Lift Fixing Feet: Lift fixing feet, which are ordered separately, come in square and round options, allowing for customisation according to specific pool deck requirements.
  8. Regulatory Compliance: The I-Swim 3 complies with several regulations including:
  • Directive 2006/42/CE
  • Directive 2004/108/EC
  • UNI EN ISO 10535
  • 93/42/CEE
  • Machine Directive
  • EMC Electromagnetic Compatibility
  • Hoist For The Transfer of Disabled Persons
  • Medical Device Directive

General information

Color

White

Finish

Powder-coated

Material

Aluminium

Stainless steel

Shape

Other

Length

1450 mm

Width

620 mm

Height

2220 mm

2340 mm

Warranty description

Two year

Uniclass

Pr_65_80_47_64 Poolside hoistsPrimary

CAWS

N13/490 Hoist systems

Specification data - Poolside hoists

Standard

UNI EN ISO 10535.

Format

Floor-standing (fixed).

Form

Multiple position.

Frame

-

Material

Aluminium and stainless steel.

Finish

Powder-coated.

Lifting mechanism

-

Capacity

180 kg.

Maximum arm travel

1450 mm.

Lifting travel

1350 mm.

Swing Radius

1630 mm (maximum); 1140 (minimum).

Operation

Powered.

Guidance for specification option:

  • Tension: 24 V.
  • Battery charger included.
  • Battery duration: 50 cycles.

Seat

-

Type

Fix seat.

Guidance for specification option:

Part W8022531.

Restraint

Not required.

Stability belt (W8020538).

Colour

White.

Rotation

360°.

Controls

4 buttons pendant switch.
Emergency stop.
Battery load indicator.

Accessories

Not required.

Lift carrier (W8020536).

Lift cover (W8020537).

Additional battery (W8020539).

Square foot (W8021000).

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy
