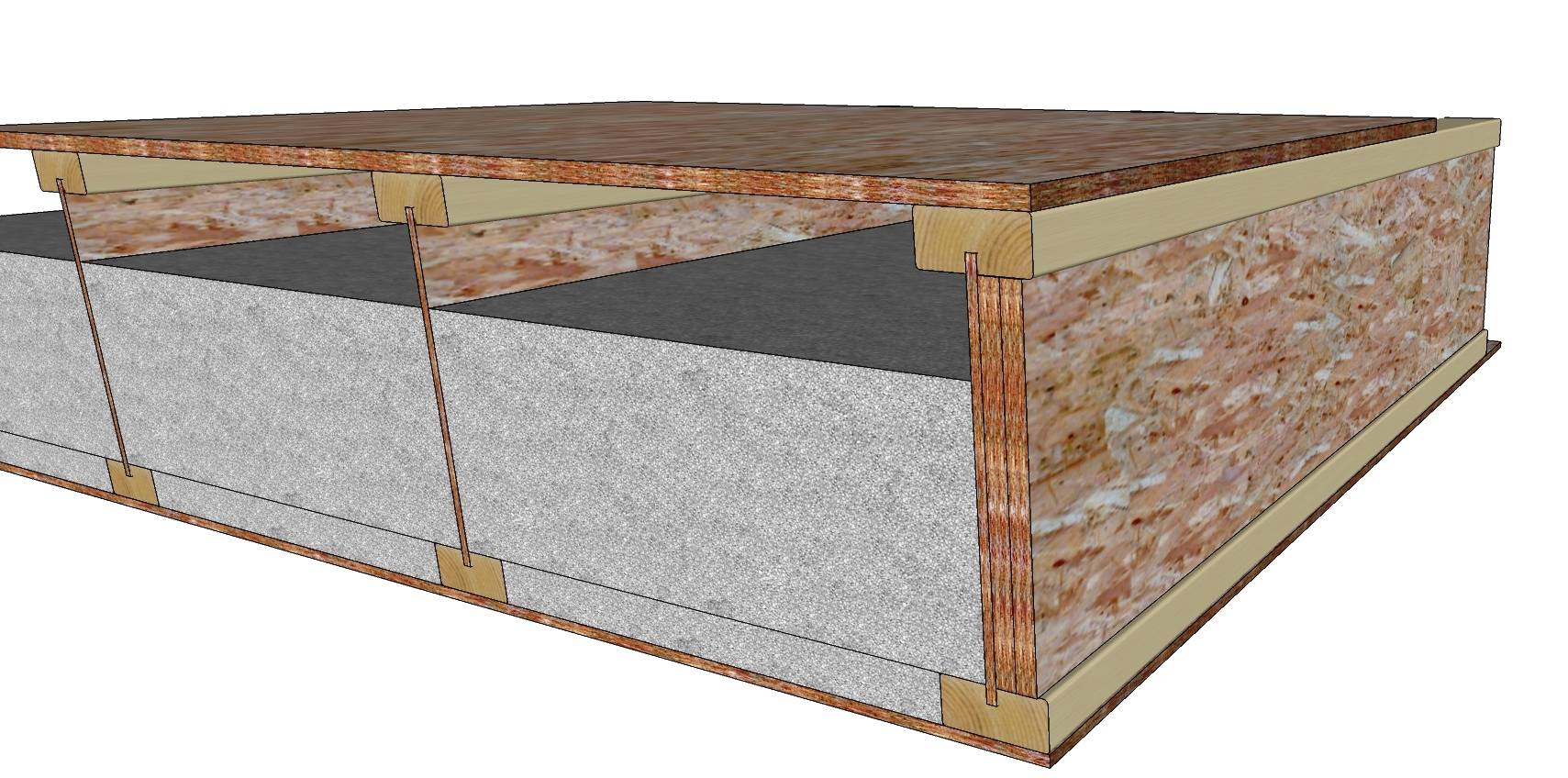

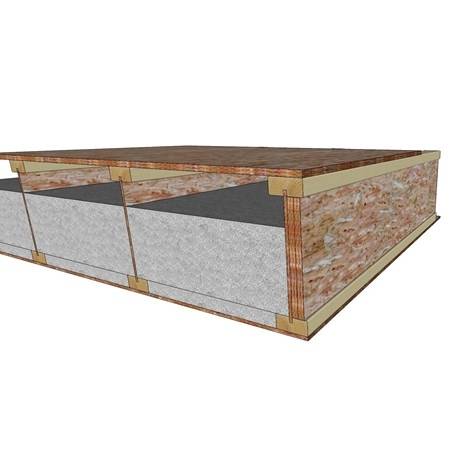

429 mm thick insulated roof cassette available as part of a bespoke off-site manufactured building system. Integral ventilation channels prevent interstitial condensation in the deck.

Features:

  • Developed for schools, but applicable to most sectors.
  • Typically 2.4 m wide and up to 12 m long.
  • U-values between 0.18–0.10 W/m²K.
  • Safe working platform and rapid install.
  • Used with tiles, standing seam and single ply membrane.
  • Ventilated deck eliminates interstitial condensation.
  • 18 mm T&G OSB4 deck, 11 mm OSB3 soffit, EPS insulation.

General information
Size

Maximum: 12000 x 2400 mm (l x w); insert requirements.

Material

Oriented strand board

Uniclass 2015 Timber structural insulated panels (SIPs) (Pr_20_93_85_90)
Specification data
Product Reference

i-SIP Roof

Size

Maximum: 12000 x 2400 mm (l x w); insert requirements.

Single ply membrane

Not required

Required

Standard product features

Thickness:

439 mm.

Materials:

  • 400 mm engineered timber joist.
  • 18 mm OSB4 T&G deck.
  • 11 mm OSB3 soffit.
  • EPS insulation.
  • Temporary weather protection membrane.
  • Safety decks in openings.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 4 2.0
