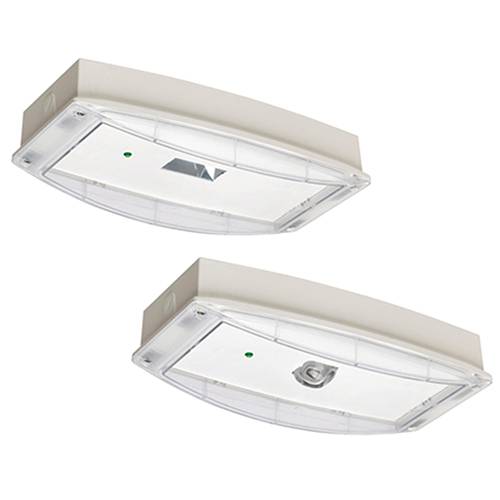

i-P65+ - Central Battery IP65 Safety Luminaire - High Power Bulkhead

Verified by manufacturer 4 months ago

i-P65+ L CG-S (IP65PLACGS)

Eaton Electric Variant:

Central battery LED safety luminaire with high ingress protection class (IP65) for both indoor and outdoor use.

Jump to:
01753 608 700 Website

Application

  • Suitable for indoor and outdoor use.
  • Ceiling mounted.
  • Industrial environments.

Description

The i-P65+ has been developed specifically for requirements in industrial environments. With a combination of high-efficiency LEDs and special optics, it provides optimum performance for a variety of applications. The housing construction features an IP65 protection rating and IK08 impact resistance, making it particularly suitable for ambient conditions in the industrial sector.


The photometric and electronic components including batteries are designed for reliable functionality with continuous ambient temperatures up to 40°C. The luminaires can, therefore, be reliably used in halls where machines or processes cause increased temperatures. Because of the high light output – also with battery operation – the i-P65+ is also suitable for high-risk areas.


Features and benefits:

  • LED safety luminaire with high ingress protection class (IP65) for both indoor and outdoor use.
  • Robust design (IK08) made from aluminium die-cast and impact-resistant polycarbonate.
  • With wide-beam symmetrical lens with a near-square light distribution, i-P65+ L variant is suitable for illuminating large areas (spacing in both direction up to 22 m for E= 1lx and up to 31 m for E = 0.5 lx) and mounting heights up to 18 m.
  • With narrow-beam reflector technology, the i-P65+ H variant is especially suitable for exit route lighting with high spacing up to 30 m and mounting heights up to 26 m.
  • High lumen output ensures suitability for increased illumination levels such as min 15 lx for high risk task areas or applications with 10.8 lx acc. NFPA 101.
  • With provisions for M20 cable entries on enclosure sides (three lateral and one at each end side) and BESA entry on rear.
  • Minimum maintenance effort and increased safety via use of LEDs with high service life (up to 60 000 h).
  • Shortened inspection effort due to CEWA GUARD technology.
  • Automatic function monitoring for up to 20 luminaires per circuit.
  • Reduced installation cost through STAR Technology.
  • Freely programmable mixed operation, allowing the switching of luminaire modes within one circuit.

General information

Color

White

Material

Aluminium

Polycarbonate

Shape

Rectangle

Length

340 mm

Height

80.5 mm

Uniclass

Pr_70_70_48_25 Emergency luminairesPrimary
Pr_70_70_48_23 Dedicated slave emergency luminaires
Pr_70_70_48_85 Surface luminaires

CAWS

V90/510 General purpose luminaires

V90/510 Luminaires

V90/510 General-purpose luminaires

V90/550 Centrally supplied emergency luminaires

Specification data - Emergency luminaires

Luminaire description

LED safety luminaire with high ingress protection class.

Classification

-

Ingress protection (minimum)

IP65.

Circumstances of use

Normal.

Type

Z.

Rated maximum ambient temperature

40°C.

Guidance for specification option:

Permissible ambient temperature: -20°C to +40°C.

Impact protection (minimum)

IK08.

Controlgear position

Integral within luminaire.

Supply circuit conductor connections

Screw terminals.

Guidance for specification option:

Terminals: 3 x 2 x 2.5 mm².

Nominal voltage

220–240 V a.c (50/60 Hz).
176–275 V d.c.

Luminaire power factor

Not applicable.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

770 lm.

Guidance for specification option:

Light source: COB LED 6.4 W.

Wattage

9.3 W.

Guidance for specification option:

Power consumption mains operation (effective power): 15.6 VA.

Manufacturer guidance

Power consumption mains operation (apparent power).

Beam angle

Wide.

Useful life

High service life (up to 60 000 h).

Guidance for specification option:

Luminous flux at end of rated operating time, 100%.

Accessories

Not required.

Mounting bracket - IP65PSUSPB.

Guidance for specification option:

Mounting bracket for chain suspension or for mounting at trunking systems or simila.

Inrush current

3 A.

Current

40 mA.

Manufacturer guidance

Current consumption - battery operation.

Housing

Aluminium housing with polycarbonate cover.

Housing colour

White.

Dimensions

340 x 80.5 mm.

Mounting

Ceiling mounted.

Weight

1.85 kg.
