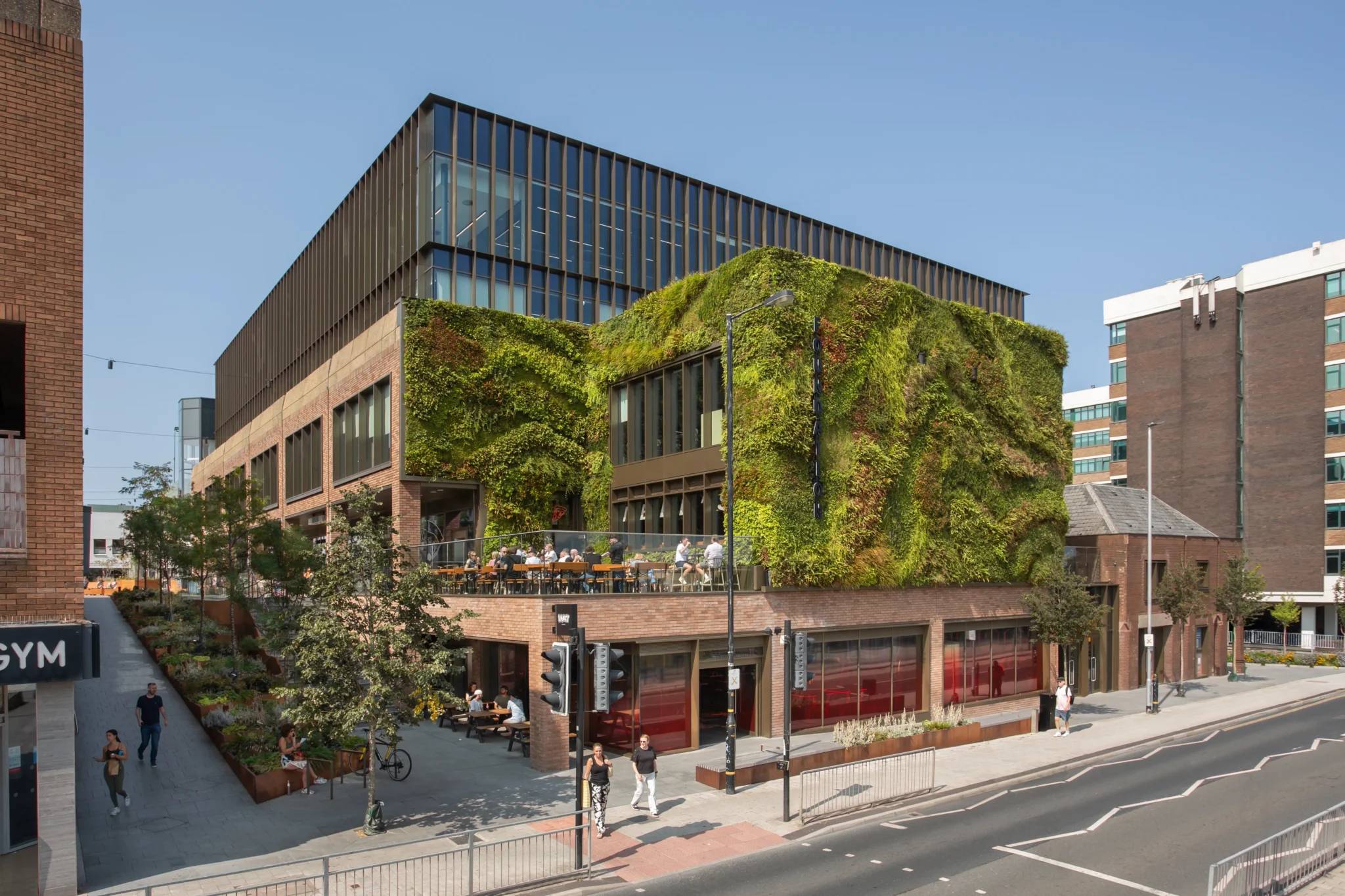

HYVERT - Masonry Fixing Detail - Living Wall System
Verified by manufacturer 1 day ago
Living wall system available with a range of plant species and complete with aluminium frame, irrigation system, guttering, 24/ 7 irrigation monitoring and HYVERT.ai.
Application
Suitable for use as a living wall internally and externally and on the following substrates:
- Breezeblock.
- Brickwork.
- Concrete.
Description
Living wall system available with a range of plant species and complete with aluminium frame, irrigation system, guttering, 24/ 7 irrigation monitoring and HYVERT.ai.
Independent scientific research collaboration with Manchester Metropolitan University uniquely allows IWP to understand the biological capabilities of each HYVERT plant species means specific planting patterns can be formulated to meet project criteria such as boosting biodiversity, thermal performance, carbon sequestration, SuDS, noise abatement etc.
Features and benefits:
- 48, 72 or 96 plants per square metre.
- Potential choice of 20 HYVERT species, bespoke design.
- Air quality absorption: very high.
- Biodiversity potential: high.
- Water pollutant capture: high.
- Carbon capture potential: high.
- Fire rating: Class B-s2,d0.
- Reporting: 24/ 7 irrigation monitoring + HYVERT.ai.
- Standard irrigation unit includes a wifi accessible irrigation controller.
- Each HYVERT module has its own water supply ensuring consistent moisture levels.
Build-up:
- Substrate (breezeblock, brickwork or concrete).
- Breathable membrane (Novia FR Breather Membrane).
- HYVERT hanging rail (500 c/c fixings using HILTI HRD 10 x 80 mm).
- HYVERT cassette.
- HYVERT dripline.
General information
Color | Black |
Finish | Matt |
Material | Aluminium Polypropylene Vegetation Other Guidance for specification option: Planting substrate. |
Shape | Rectangle |
Length | 112 mm Manufacturer guidanceDepth. |
Width | 250 mm |
Height | 500 mm |
Uniclass | |
CAWS | Q38/120 Modular green wall system |
Specification data - Modular unit vertical planting systems
Classification data | |
System performance | Manufacturer guidanceKIWA IFC Group (International fire Consultants) were instructed by I Want Plants Limited to consider the likely reaction to fire performance of the I Want Plants Limited Hyvert® living wall system had it been able to be tested fully in accordance with the relevant testing standard required to classify the system using BS EN 13501: 2018. Based upon the reaction to fire testing conducted and described in Section 3, it has been determined by IFC that, if the I Want Plants Limited Hyvert® living wall system was manufactured, installed and maintained in accordance with the requirements of this engineering Assessment Report, then the following reaction to fire performance would likely be achieved: B-s2, d0. Consult manufacturer for more details and insert requirements. |
Primary structure | Brick or masonry wall. |
Breather membrane | Novia FR breather membrane. |
Secondary support structure | HYVERT hanging rail. Guidance for specification option: 500 c/c fixings using HILTI HRD 10 x 80 mm. |
Waterproof layer | Manufacturer's standard. |
Irrigation | 24/7 monitored Wi-Fi irrigation system as standard. HYVERT Dripline - polypropylene round dripline, 16 mm diameter with flat pressure compensating drippers. Guidance for specification option:
|
Modular panels | |
Type | HYVERT Cassette - 500 x 250 x 112 mm. |
Growing medium | Manufacturer's standard. |
Planting | Exterior - HYVERT Biodiversity. Guidance for specification option: 48 plants per m² featuring Hedra plants and native wildflowers. Exterior - HYVERT Standard. Guidance for specification option: 72 plants per m² featuring Hedera Helix, Euonymus Green Spire, Euonymus Minima, and Pachysandra. Exterior - HYVERT Premium. Guidance for specification option: 96 plants per m² with a bespoke design and a choice from 20 species. Interior - HYVERT Premium. Guidance for specification option: 96 plants per m² with a bespoke design and a choice from 20 species. |
Gutters | FloPlast SquareLine 114 x 65 mm gutter. |
System accessories | Novia single sided lap tape. Novia double sided lap tape. |
Monitoring | 24/ 7 irrigation monitoring and HYVERT.ai. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Polypropylene Vegetation Other Guidance for specification option: Planting substrate. |
Recyclability | 100% recyclable |
Expected Life | 30 year |
