Hyperion® Sentinel Composite Cladding
Verified by manufacturer 4 months ago
C-B-O-4
C-B-O-4
Euro Class B Fire-Rated High-Performance Rainscreen Cladding System.
Application
Suitable for use on residential and commercial spaces in conjunction with 50 x 50 x 3100 mm plastic battens, 140 x 10 mm fascia boards and 42 x 76 mm corner trims.
Description
Wood-polymer composite (WPC) cladding constructed from 60% recycled wood (FSC® 100% certified), 30% recycled high-density polyethylene (HDPE), environmentally gentle bonding agent, additives and tint.
Features and benefits:
- Low maintenance: never treat or stain.
- Does not rot, warp or splinter

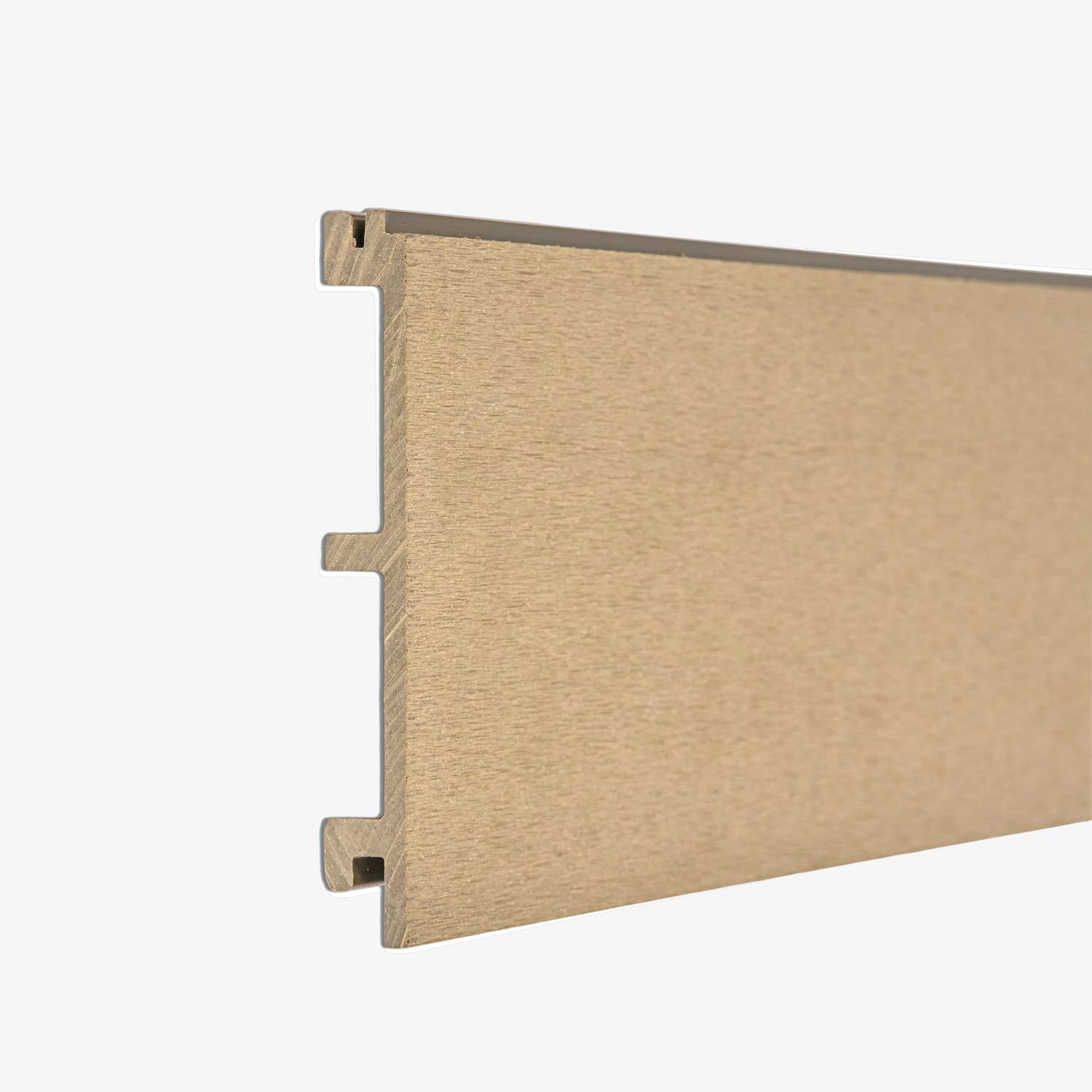

- 21 x 155 mm profile.
- Shiplap profile, decorative rainscreen cladding.
- Splinter and insect resistant material.
- 15-year residential, 10-year commercial limited warranty.
- Class B fire rating.
- Easy hidden fastening system.
- Can be installed vertically or horizontally.
General information
Color | Brown Guidance for specification option:
Grey Guidance for specification option:
Black |
Finish | Brushed Guidance for specification option: Grain surface. |
Material | Wood Guidance for specification option: Wood-polymer composite. |
Shape | Rectangle |
Length | 4000 mm |
Width | 150 mm |
Height | 21 mm |
Warranty description | 15 year Guidance for specification option: Partial refund for 3 to 15 years old Residential Applications. Ten year Guidance for specification option: Partial refund for 2 to 10 years old Commercial Applications. Manufacturer guidanceLimited manufacturer warranty against breakage, splinters, rot or structural damage from termites or fungal decay. |
Uniclass | |
CAWS | H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) H20/155 Sheet cladding (attached to timber battens) |
Product range |
Specification data - Wood-plastics composite weatherboards
Third-party certification | FSC® 100% certified. |
Profile | Shiplap. |
Finished size | |
Face width | 150 mm. |
Thickness | 21 mm. |
Surface texture | Brushed grain. |
Finish | Brushed. |
Reaction to fire classification | To BS EN 13501-1, B-s2, d0. |
Colour | Oak. |
Recycled content (minimum) | 60% recycled wood and 30% recycled high-density polyethylene (HDPE).Guidance for specification option: (FSC® 100% Certified). |
Weight | 1.95 kg/linear m. |
Co-efficient of linear thermal expansion | 0.044 mm/m/°C. Manufacturer guidanceIn range of -30 to +30°C. |
Water absorption | 5%. Manufacturer guidanceTo BS EN 15534. |
Sustainability data
Contains Red List materials | No |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | -1.85 kg CO₂ eq/kg Self declared Guidance for specification option: -2.53 if manufactured with wind energy. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Hyperion Composite Cladding Product Brochure
Hyperion Composite Products EPD
Hyperion Composite Products Life Cycle Assessment Review
