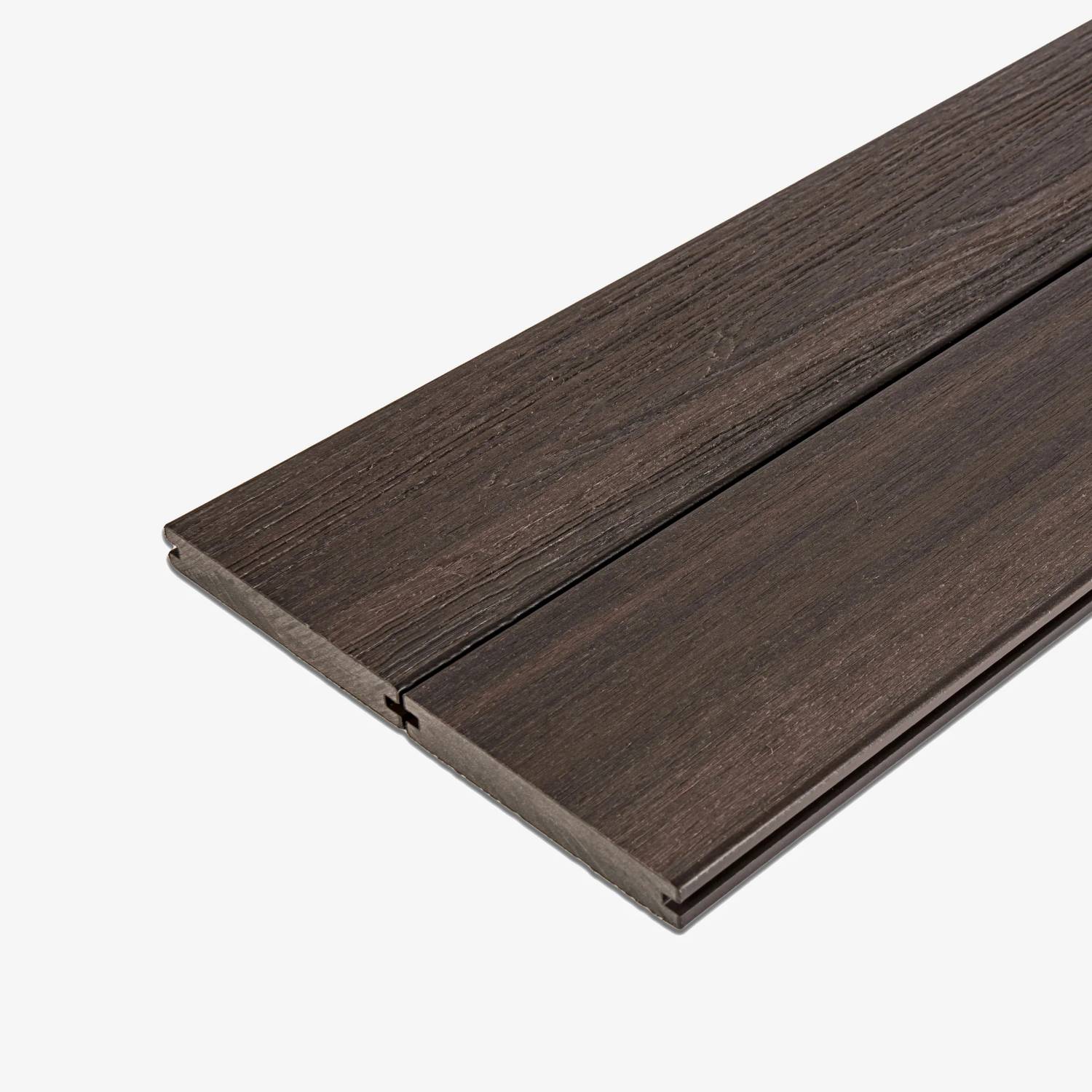

Hyperion® Frontier Composite Decking
Verified by manufacturer 6 months ago
Solid, capped, non-slip composite decking with 90% recycled content, produced using 100% renewable energy.
Description
Wood-polymer composite decking (WPC decking) constructed from 60% recycled wood (FSC® 100% certified), 40% recycled high density polyethylene, environmentally gentle bonding agent, additives and tint. A range of accessories is available.
Features and benefits:
- Low maintenance: never treat or stain.
- Does not rot, warp or splinter.
- Highly rated non-slip decking.
- 25-year residential, 15-year commercial limited warranty.
- 143 x 22 mm profile.
- Hidden and secure fastening system.
- Durable.
General information
Color | Grey Guidance for specification option:
Brown Guidance for specification option:
|
Finish | Manufacturer guidanceReversible deep grooves/wood grain. |
Material | Composite Guidance for specification option: Wood plastic composite (WPC). |
Shape | Rectangle |
Length | 4000 mm |
Width | 143 mm |
Height | 22 mm |
Warranty description | 15 year Guidance for specification option: Partial refund for 3 to 15 years old Commercial Applications. 25 year Guidance for specification option: Partial refund for 5 to 25 years old Residential Applications. Manufacturer guidanceLimited manufacturer warranty against breakage, splinters, rot or structural damage from termites or fungal decay. |
Uniclass | |
CAWS | Q55/110 Deck Q55/380 Deck boards |
Product range |
Specification data - Wood-plastics composite deck boards
Third-party certification | 100% FSC-certified. |
Profile | Reversible grooved/ wood grain.Manufacturer guidanceFinish. |
Finished size | |
Section | 143 x 22 mm.Guidance for specification option: Solid structure. |
Length | 4 m.Guidance for specification option:
|
Features | Guidance for specification option: Hidden and secure fastening system. |
Reaction to fire | To BS EN 15301-1, class Dfl-s1. |
Recycled content (minimum) | 90%.Guidance for specification option:
|
Colour | Iroko. Guidance for specification option: D-S-I-4. Marble. Guidance for specification option: D-S-M-4. Slate. Guidance for specification option: D-S-S-4. Teak. Guidance for specification option: D-S-T-4. |
Density | 1.24 g/cm³. Manufacturer guidanceTo ASTM D792-13, Method B. |
Elastic modulus | 4423 MPa. Manufacturer guidanceFlexural modulus (to BS EN 15534-1). |
Flexural strength | 40.5 MPa. Manufacturer guidanceTo BS EN 15534-1. |
Water absorption | 0.88%. Manufacturer guidanceTo ASTM D570-98. |
Static coefficient of friction | 0.49–0.42 dry, 0.25–0.29 wet. Guidance for specification option: Grain – grooves. Manufacturer guidanceTo BS 7976-2. |
Core material | 60% wood and 40% high density polyethylene. |
Sustainability data
Contains Red List materials | No |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | -1.85 kg CO₂ eq/kg Self declared Guidance for specification option: -2.53 if manufactured with wind energy. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 1 |
 Revit | Revit 2016 | 2 |
Case studies

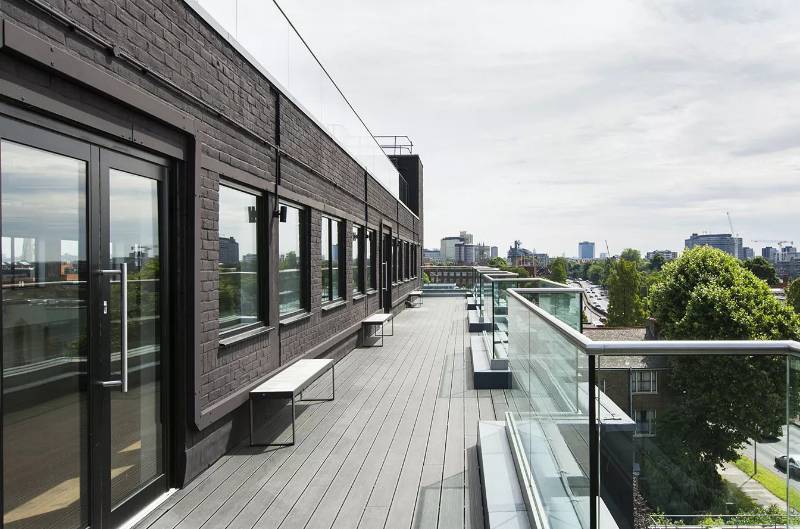

Clockwork Building Rooftop Balcony Decking

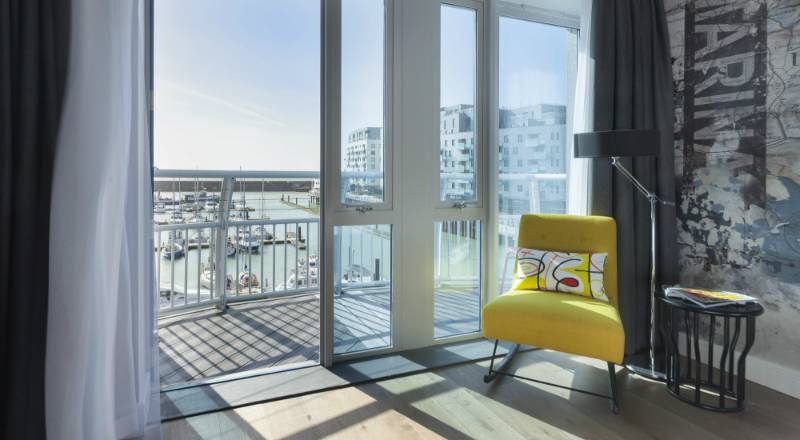

Malmaison Hotel Composite Decking
