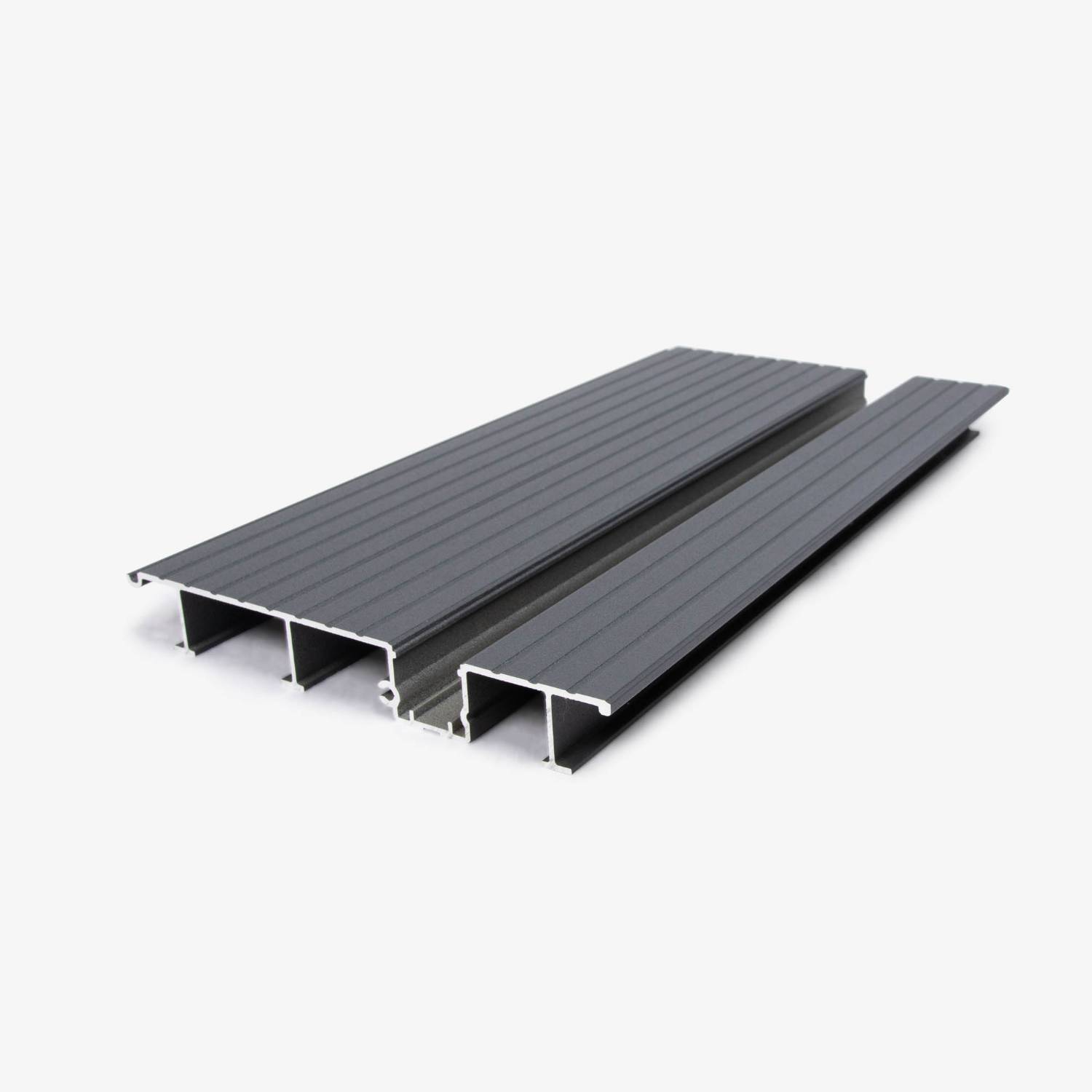

Hyperion® 150 Aqua-Channel Aluminium Decking

Verified by manufacturer 5 months ago

EnviroBuild Materials Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • UKAS

    UKAS

    Certificate type

Class A Fire-Rated Aluminium Decking Featuring Built-in Drainage System.

Jump to:
BOS
 +44 (0)208 0884888 Website

Application

Suitable for balcony and terrace areas. Balconies that protrude less than 2.5 m from the wall can be edge drained by sloping away from the wall, without the requirement for any other water collection areas. Aqua-Channel was designed exactly for this, allowing the lowering of cost of the overall balcony by removing the need for a soffit to achieve drainage. The drainage slope can be generated either by the fabricator, or EnviroBuild can provide bespoke “steel drainage supports” designed to your exact requirements. We can also provide shims of varying thicknesses, which sit below joists and provide a slope.

Description

Engineered and non-combustible aluminum deck boards complying with the latest fire safety laws.


Features and benefits:

  • Simple clipless system.
  • Has a choice between a deck with a continuous appearance and the classic deck look with gaps every 150 mm.
  • Anti slip, non combustible.
  • Built in drainage system.
  • The only IP tested system in the UK, achieving a rating of IP56.
  • Ability to remove any individual board easily when craning a balcony into place, or where damage has occurred.
  • The option to have either a continuous surface, or 150 mm wide decking with drainage channel between boards.
  • Clipless system and hidden fixings.
  • No pre-drilling required when installed on Hyperion joists.
  • No need to rip boards for spacings at multiples of 50 mm.
  • Easy to cut and hide rips for multiples of 10 mm, by cutting along the grooves in the board.
  • Asymmetry of board makes ripping boards more simple.
  • Qualicoat certified powder coating.
  • Custom colour and length options (significant lead time).

General information

Color

Brown

Guidance for specification option:

8019 Grey brown.

Grey

Guidance for specification option:

7016 Anthracite grey.

Other

Guidance for specification option:

Any other RAL colour available.

Finish

Textured

Guidance for specification option:

Anti-slip textured powder coat.

Material

Aluminium

Guidance for specification option:

T6 6063 Aluminium.

Shape

Rectangle

Length

Bespoke

3600 mm

Width

150 mm

Height

21 mm

Warranty description

30 year

Guidance for specification option:

Up to 30 years for residential applications (Full refund up to 5 years).

15 year

Guidance for specification option:

Up to 15 years for commercial applications (Full refund up to 3 years).

Uniclass

Pr_25_71_51_04 Aluminium profiled sheet deckingPrimary

CAWS

Q55/380 Deck boards

Q55/110 Deck

Product range

A-Class Products / Aqua-Channel decking

Specification data - Aluminium profiled sheet decking

Grade

T6-6063.

Profile

-

Depth (overall)

150 mm.

Top surface

Dry 52, wet 46.

Guidance for specification option:

PTV - low slip potential.

Manufacturer guidance

Powder coating.

Colour/ Finish

8019 Grey brown, anti-slip textured powder coat.

7016 Anthracite grey, anti-slip textured powder coat.

RAL, anti-slip textured powder coat.

Guidance for specification option:

Any other RAL colour available, insert requirements.

Accessories

Gap insert.

150 Aqua-Channel Threshold Drainage Channel.

Guidance for specification option:

150 Aqua-Channel boards create a continuous surface, with patented interlocking attachments and drainage channels which are designed to mitigate the capillary effect. Bespoke steel slopes, or a system using joist-hangers and shims of varying sizes can be used to create a slope. Threshold and side drainage components are used to collect water. 150 Aqua-Channel also has the ability to use screws suitable for thick steel beams.


With patented interlocking attachments, the 150 Aqua-Channel

can have either a continuous appearance or a gapped appearance

(aesthetic gaps at every 150 mm). This, coupled with in-built drainage pieces, makes this deck an incredibly versatile option.


Properties:

  • 3600 x 54 x 21 mm (length x width x height).
  • Bespoke sizes available with orders over 1000 kg.
  • Manufactured from aluminium 6063-T6.

150 Aqua-Channel Drainage Trim.

Guidance for specification option:

150 Aqua-Channel boards create a continuous surface, with patented interlocking attachments and drainage channels which are designed to mitigate the capillary effect. Bespoke steel slopes, or a system using joist-hangers and shims of varying sizes can be used to create a slope. Threshold and side drainage components are used to collect water. 150 Aqua-Channel also has the ability to use screws suitable for thick steel beams.


With patented interlocking attachments, the 150 Aqua-Channel

can have either a continuous appearance or a gapped appearance

(aesthetic gaps at every 150 mm). This, coupled with in-built drainage pieces, makes this deck an incredibly versatile option.


Properties:

  • 3600 x 150 x 21 mm (length x width x height).
  • Bespoke sizes available, consult manufacturer for details.
  • Manufactured from aluminium 6063-T6.


Flush insert.

Start/ end profile.

Weight

9.57 kg/m² (using gap insert).

Density

2.69 g cm-³.

Elongation at break

18-33 %.

Linear thermal expansion coefficient

2.34 x 10-5 K-¹.

Melting point

615 °C.

Manufacturer guidance

Temperature.

PoissonRatio

0.3.

SpecificHeatCapacity

900 J kg-¹ K-¹.

Tensile strength (minimum)

160 Mpa.

ThermalConductivity

210 W m-¹ K-¹.

Volume

30-35 nΩ-m.

Manufacturer guidance

Resistivity.

YoungModulus

68.3 Gpa.

Span

2.5.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.77 kg CO₂ eq/kg

Guidance for specification option:

Produced with wind energy (A1-3). The rate increases to 22.72 kg·CO₂e/kg if the client decides not to use green energy.

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

1

Third party certifications

EPD

EPD EnviroBuild Hyperion Aluminium Profiles

BS EN 13501-1

BS EN 13501-1

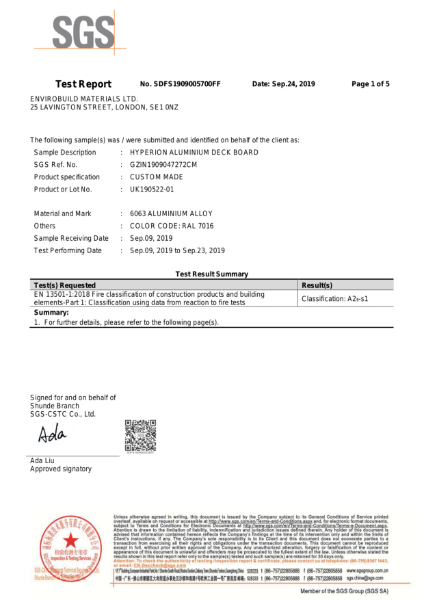

Hyperion Aluminium Decking 7016 - EN13501 A2fl Fire Test

UKAS

UKAS

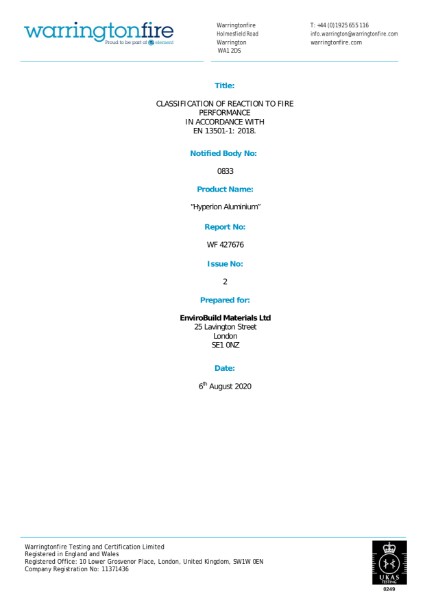

Hyperion Aluminium Decking A2 Classification report - Warrington Fire UK

BS EN 13501-1

BS EN 13501-1

Hyperion Aluminium Decking 8019 - EN13501 A2fl Fire Test

BS EN 13501-1

BS EN 13501-1

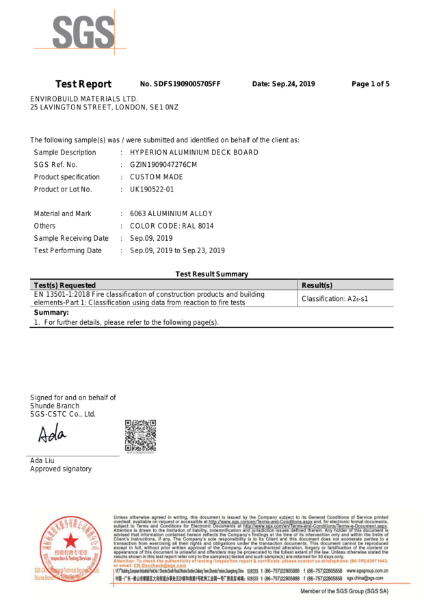

Hyperion Aluminium Decking 8014 - EN13501 A2fl Fire Test

BS EN 13501-1

BS EN 13501-1

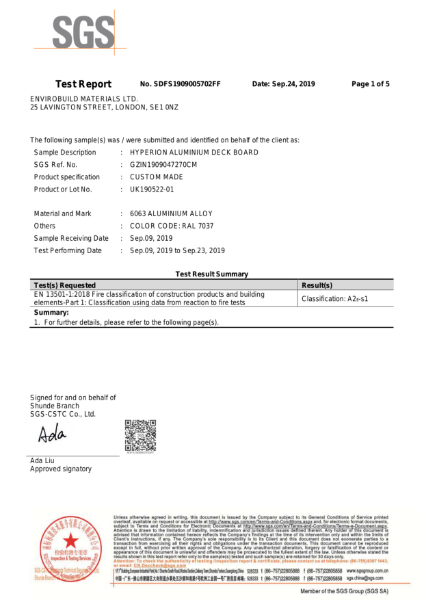

Hyperion Aluminium Decking 7037 - EN13501 A2fl Fire Test

BS EN 13501-1

BS EN 13501-1

Hyperion Aluminium Decking 7040 - EN13501 A2fl Fire Test

Literature

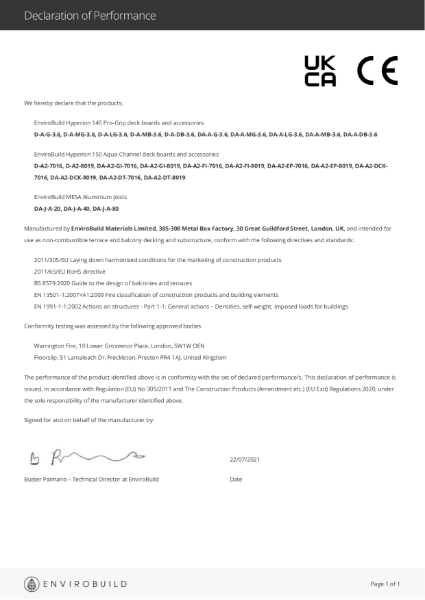

Declaration of Performance - Hyperion Aluminium Decking

Declaration of Performance - Hyperion Aluminium Decking

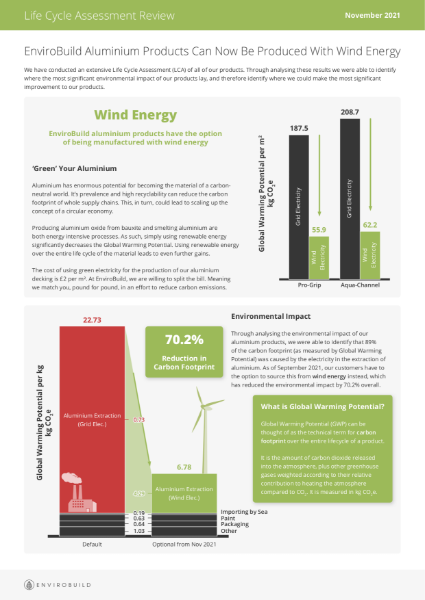

EnviroBuild Aluminium product life cycle assessment

EnviroBuild Aluminium product life cycle assessment

Case studies

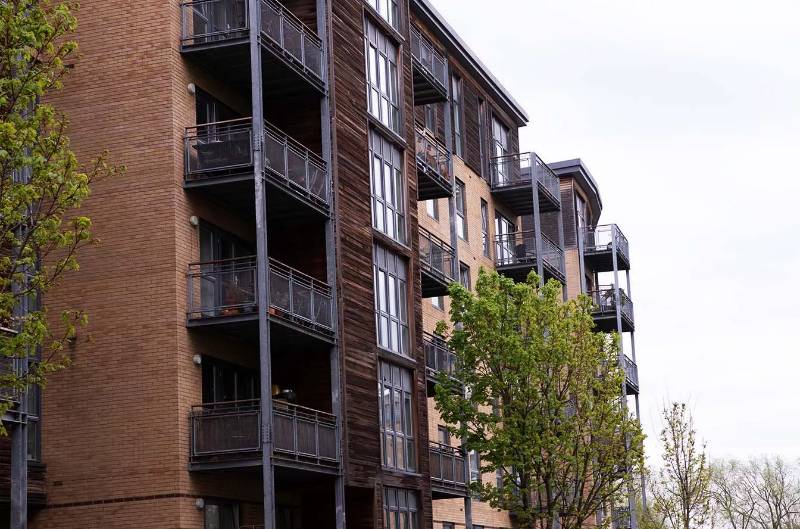

Latham’s Yard Balcony Refurb

Latham’s Yard Balcony Refurb

Similar products from EnviroBuild Materials Ltd

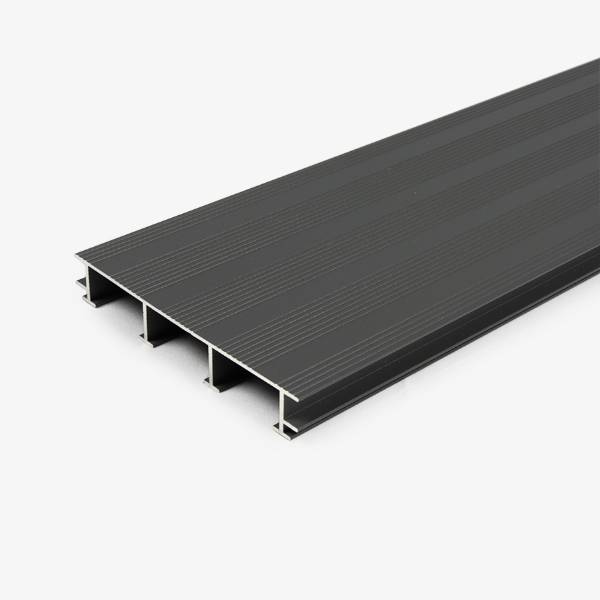

Hyperion® 145 Pro-Grip Aluminium Decking

Hyperion® 145 Pro-Grip Aluminium Decking

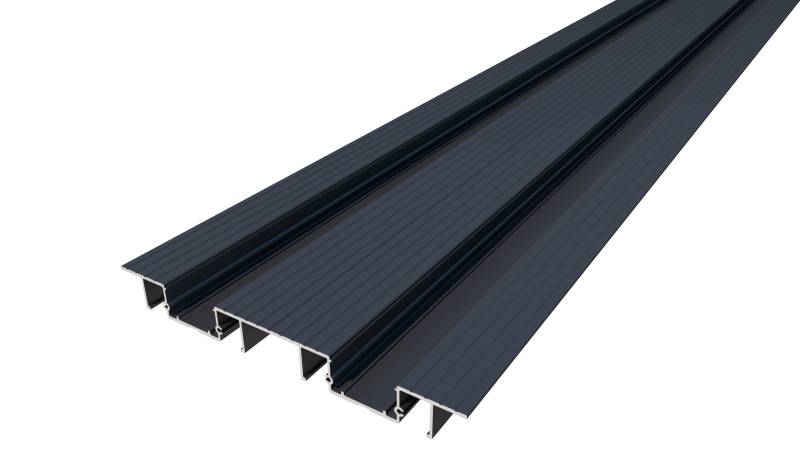

Hyperion® Strong-Span Aluminium Decking - Decking Board
