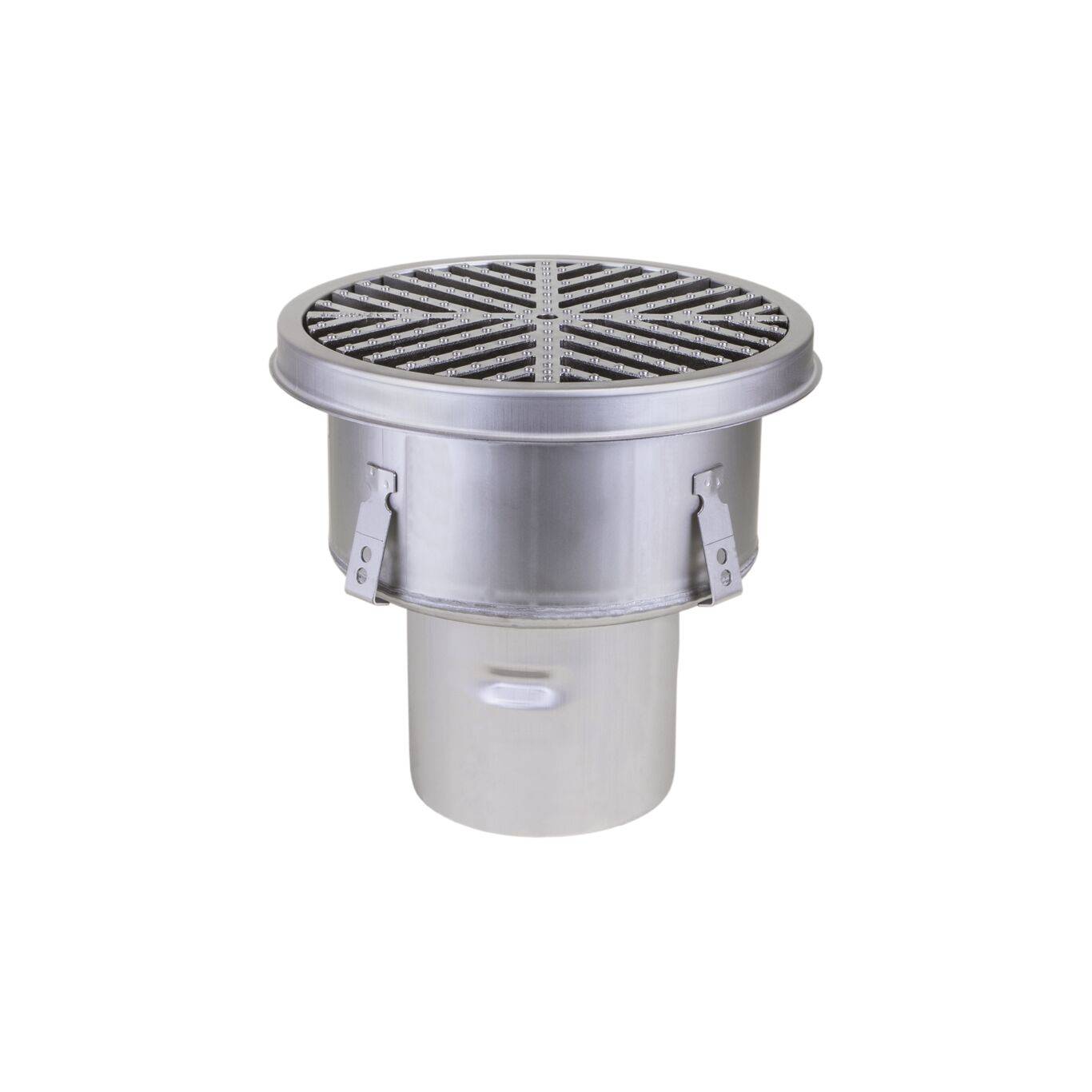

HygienicPro® drain

Verified by manufacturer 6 months ago

755.513.110 HygienicPro Industrial Drain Type 755

BLÜCHER UK Ltd Variant:

A range of floor drains for the food processing industry.

Jump to:
+44 (0)1937 838000 Website

Application

For resin and concrete/ tiled flooring in:

  • Production areas with strict hygiene requirements, mainly the food processing industry.

Description

A range of stainless steel floor drains for production areas with strict hygiene requirements. Suitable for resin, concrete and tiles floors.


Features and benefits:

  • Designed without corners or cavities inside.
  • 1.5 mm material thickness.
  • 15 mm frame width.
  • Manufactured from AISI 304/ EN 1.4301 or AISI 316/ EN 1.4404 stainless steel.

General information

Color

Silver

Material

Stainless steel

Shape

Circle

Length

305 mm

Width

305 mm

Height

196 mm

275 mm

299 mm

376 mm

378 mm

Show more

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/5 Floor drains

R11/315 Floor drains

Specification data - Floor gullies

Body

-

Configuration

562.102.000 S Removable Two-Part Water Trap Type 562.10.

525.090.110 S P-Trap 87.5° Type 525.090.

Material

Stainless steel grade 1.4301 (AISI 304).

Stainless steel grade 1.4404 (AISI 316L).

Cover or grating

-

Cover or grating type

HygienicPro Grating Circle.

Material

Stainless steel grade 1.4308 (AISI 304C).

Outlet

Vertical one-part fixed.

Load class (minimum)

R 50.

Integral accessories

None.

780.004.010.05 - HygienicPro Filter Basket Type 780.

780.004.020.05 - HygienicPro Filter Basket Type 780.

780.004.030.05 - HygienicPro Filter Basket Type 780.

780.400.110.05 - Outlet filter.

Guidance for specification option:

For drains with vertical outlet.

670.000.010 - HygienicPro Spacing Ring for Filter Basket.

Guidance for specification option:

For medium or high filter basket used together with a P-trap.

670.000.022 - HygienicPro Tile Adaptor for Drain.

Guidance for specification option:

For drains mounted in tiles.

670.005.000 - Funnel for grating.

Overall height

275 mm.

Sustainability data

Recyclability

100%
