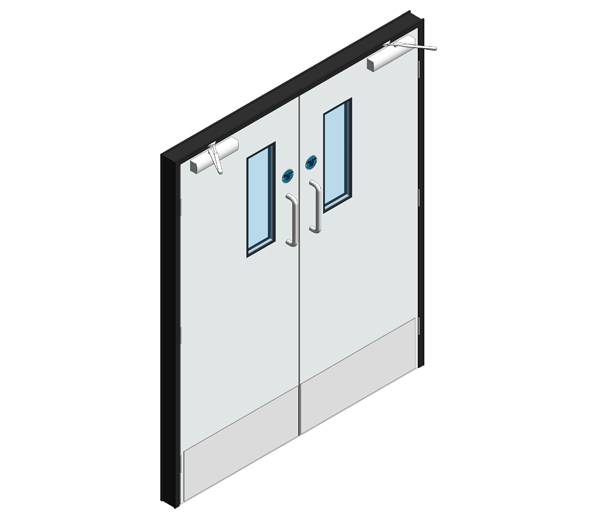

Hygienic Hinged GRP Fire Doors - 60 Min FR - Pair (GRP frame)
Specialist GRP fire doors which combine safety without compromising high standards of hygiene and durability.
- Supermarkets.
- Warehouses.
- Retail outlets.
- Food processing.
- Kitchens.
- Pharmaceutical manufacturing.
Dortek double action fire doors are manufactured from GRP and are extremely lightweight, strong and durable with a clean aesthetic appearance.
GRP fire doors combine safety without compromising high standards of hygiene and durability. Unique to Dortek, the patented concealed intumescent strip is built into the door during the manufacturing process, maintaining a smooth, seamless profile ensuring that there are no seams or ledges where dirt and germs can gather.
The door does not harbour bacteria and is unaffected by moisture and common cleaning chemicals, making them particularly suitable in areas that have regular and rigorous cleaning regimes. The door blade is protected by black polypropylene bumpers and is smooth and easy to operate.
Features:
- Extreme strength and durability.
- Smooth hygienic surface.
- Easy to clean and maintain.
- Unaffected by water and cleaning chemicals.
- Easy to open using floor springs.
- Adjustable closing speed.
- Will not warp, rot, swell or rust.
- GRP frame.
- Fire resistant up to two hours.

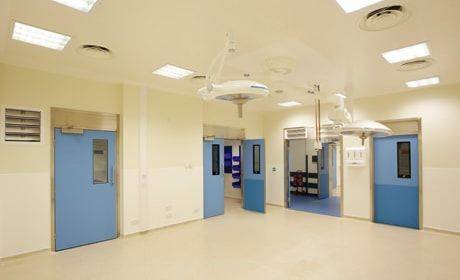

Applications:
- Supermarkets.
- Warehouses.
- Retail outlets.
- Food processing.
- Kitchens.
- Pharmaceutical manufacturing.
Color | Silver Grey Pastel Green Pastel Violet Dark Admiralty Grey Pastel Blue |
Finish | Smooth non-porous fire retardant gelcoat finish with built in colour |
Material | GRP |
Shape | Rectangular |
Size | 1250x2440 1250x2040 2250x2040 1650x2440 1850x2040 |
WarrantyDescription | 12 Months Labor and Parts Warranty |
Uniclass 2015 | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product Reference | Dortek Hygienic Hinged GRP Fire Doors - Double Action |
Fire resistance | 30 minutes2440 mm height. 60 minutes2440 mm height. 120 minutes2100 mm height. |
Width (single leaf) | 525 mm625 mm725 mm825 mm900 mmF120 only. 925 mmF30 and F60 only. 1025 mmF30 and F60 only. 1125 mmF30 and F60 only. 1225 mmF30 and F60 only. |
Colour | See 'Options' below and insert requirements. |
Smoke seals | Not requiredRequired |
Vision panels | 200 x 300 mm200 x 600 mm200 x 900 mm300 x 600 mm400 x 600 mm |
Bumpers | 250 mm high black polypropylene480 mm high black polypropylene |
Ironmongery | Insert requirement, consult with manufacturer, a wide range is available. |
Accessories | Not required2 mm grey smooth PVC cladding3 mm grey ribbed rubber cladding |
Standard product features | Door leaf: - Material: 40 mm thick with a 2.5 mm thick seamless hygienic glass-fibre reinforced, fire retardant moulded polyester facing and a 35 mm thick vermiculite board core with a density of 380 kg/m³ and thermal conductivity of 0.05 W/m·K. - Finish: Smooth non-porous fire retardant gelcoat finish. Door frame: GRP with intumescent strip in PVC holder. Hinges: Double action floor spring with top and bottom pivot. Vision panels: Triple glazed firelite laminate safety glass – for 30, 60 and 120 minute doors. Positioned 165 mm (minimum) from the leading edge or centrally in width. |
Product Options | Configuration: Available as single leaf or double leaf, dependent on size requirement, contact manufacturer for information. Size: Bespoke sizes available upon request - contact manufacturer. Door leaf colour: Bespoke colours available upon request - contact manufacturer.
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2015 | 1 | 1.2 |
