HydroTap G5 Classic Plus Instant Filtered Boiling and Chilled Tap - Water Tap

Verified by manufacturer 3 months ago

Boiling 160 - H55706Z00UK

Zip Water Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • WRAS

    WRAS

    Certificate type

Instant filtered boiling, chilled and sparkling water tap with various configurations.

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for a variety of environments including: Offices and workplaces Healthcare Education Industrial and institutions Retail Hotels, restaurants, bars and cafes Leisure, sports and stadia Local authority and public buildings.

Description

Features and benefits:

  • Sub micron filtration technology - It features our industry leading 0.2 micron filtration technology that filters out dirt, lead, cysts and microplastics for pure-tasting drinking water.
  • Antimicrobial additive for key materials used in the Classic Plus tap’s controls to virtually eliminate surface bacteria.
  • Safety lock – Boiling safety lock option for safe delivery of boiling drinking water.
  • 100% water efficient air cooled technology.
  • Refillable CO2 cylinder.
  • Easy to install integrated ventilation tray included.

General information

Color

Black

Silver

Finish

Chrome

Matt

Material

Steel

Shape

Other

Length

520 mm

Width

500 mm

Height

373 mm

Warranty description

Two year

Guidance for specification option:

Appliance warranty 24 months plus additional 36 months boiling tank warranty

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Product range

Instant Boiling and Chilled Tap

Specification data - Instant boiling and cold water taps

Water

Boiling.

Duty

-

Hot cups

160 per hour.

Dimensions

500 x 520 x 373 mm.

Electrical connection

-

Voltage

230 V (50/60 Hz).

Water inlet

1/2” BSP.

Colour/ Finish

Brushed chrome.

Bright.

Gunmetal.

Matt black.

Font

Not required.

Required.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

199 kg CO₂ eq/m²

Recyclability

99.8%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

Platform Compatible Version
ARCHICAD
-

1

Revit
-

1

Third party certifications

EPD

EPD

Environmental Product Declaration

WRAS

WRAS

WRAS HydroTap G5 BC

WRAS

WRAS

WRAS HydroTap G5 BCS

Literature

HydroCare Commercial Flyer 2024

HydroCare Commercial Flyer 2024

Zip Commercial Product Guide Introduction

Zip Commercial Product Guide Introduction

Zip Water Commercial Price List 2024

Zip Water Commercial Price List 2024

Case studies

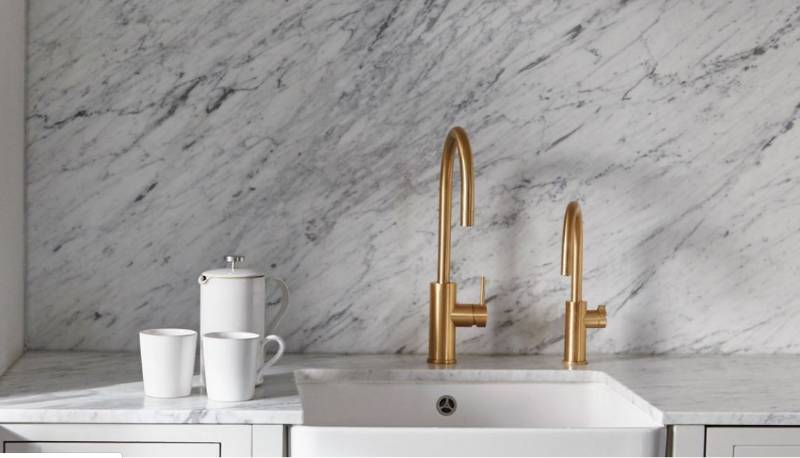

2LG

2LG

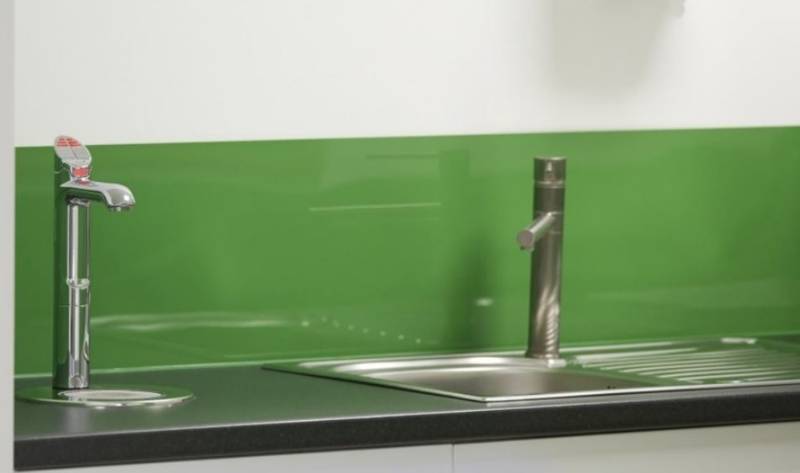

Ashtons Legal

Ashtons Legal

Cala Homes

Cala Homes

ITV

ITV

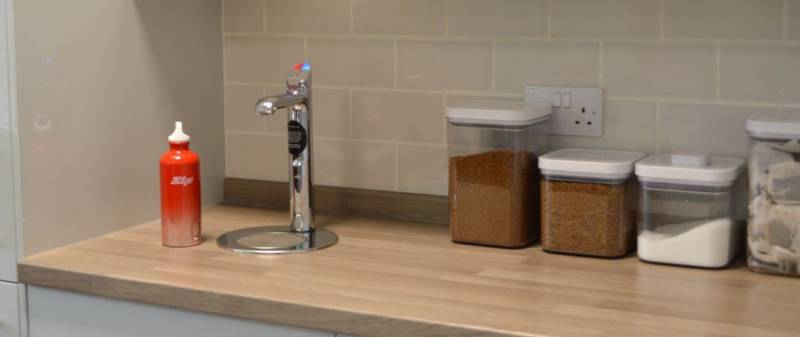

Kidney Research UK

Kidney Research UK

Marks & Spencer

Marks & Spencer

Michael Laird Architects

Michael Laird Architects

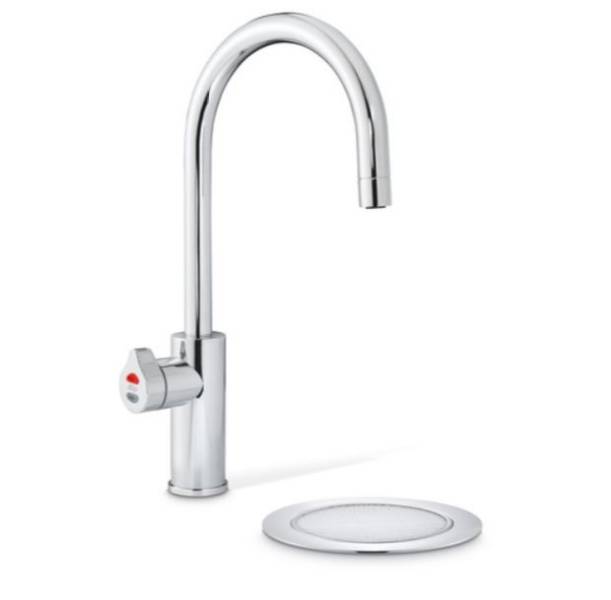

Shooting Star Children's Hospice

Shooting Star Children's Hospice

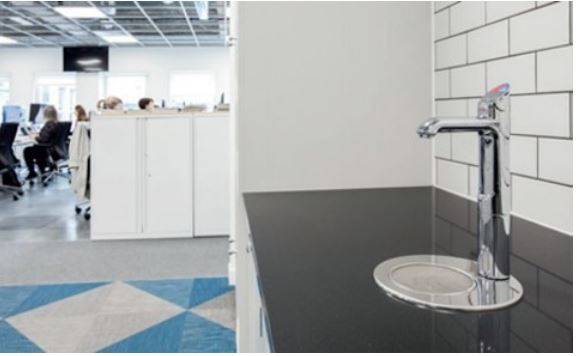

Time Inc

Time Inc

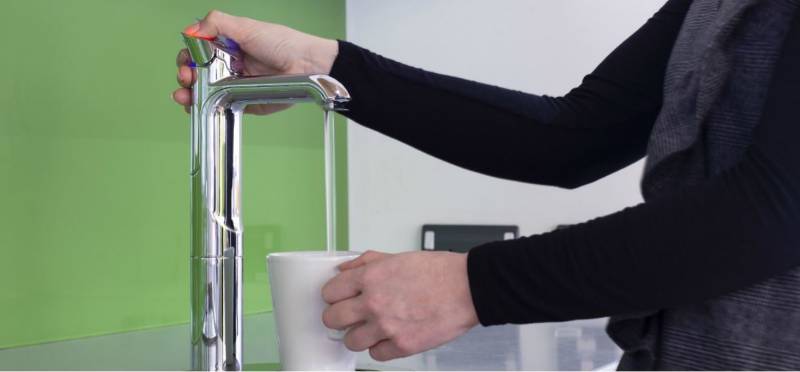

Wiltshire Council

Wiltshire Council

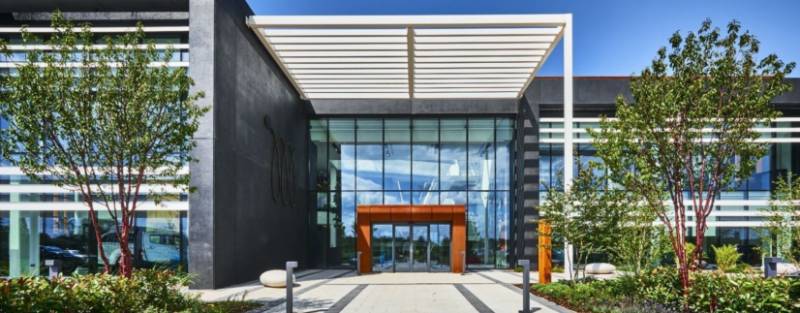

IM Properties

IM Properties

RD Content

RD Content

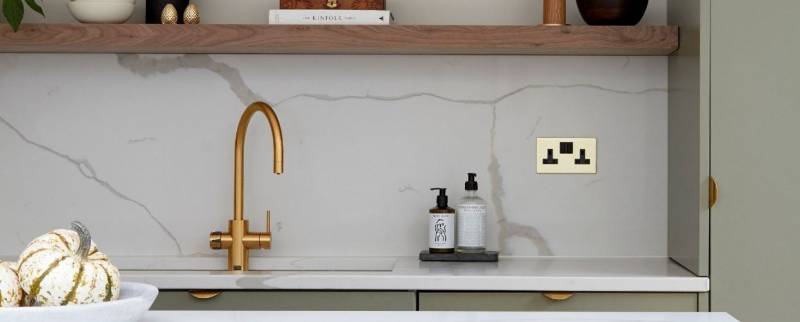

Studio Fortnum

Studio Fortnum

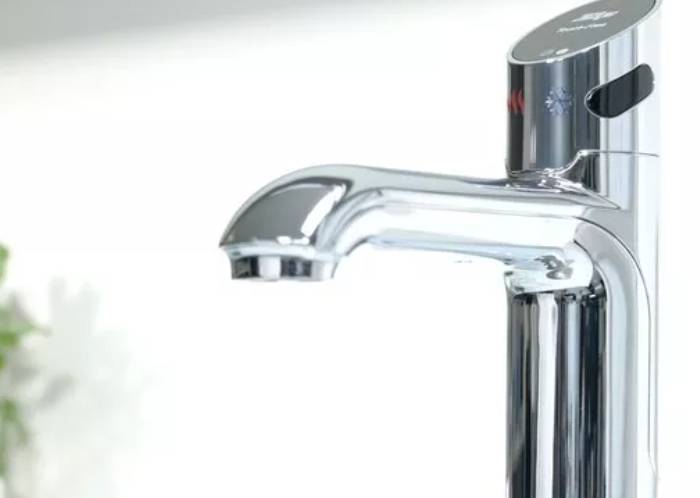

Charles Russell Speechlys LLP Case study overview
