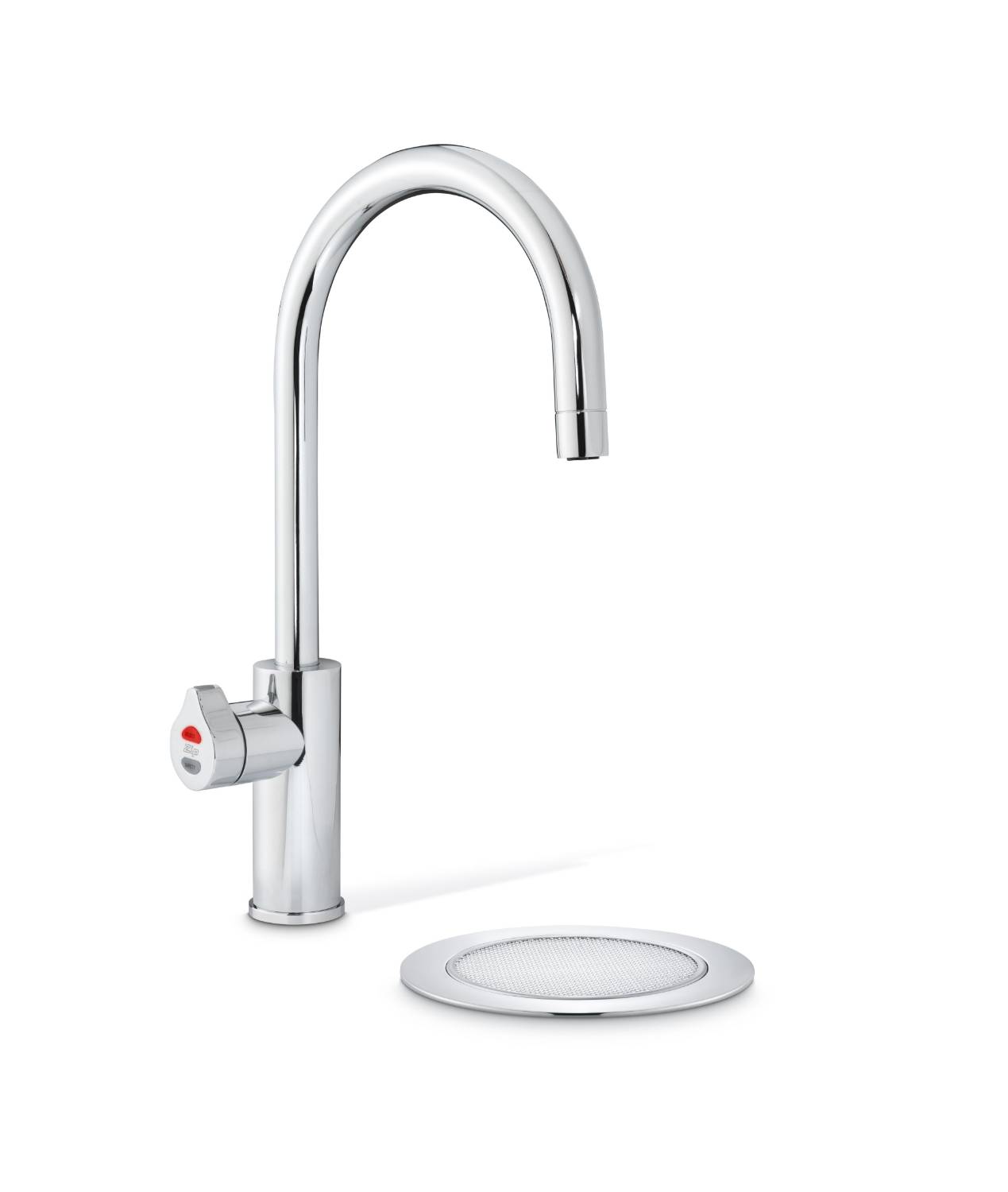

HydroTap G5 Arc Instant Filtered Boiling, Chilled And Sparkling Tap - Water Tap
Verified by manufacturer 5 months ago
Boiling 160 - H52706Z00UK
Boiling 160 - H52706Z00UK
EPD
Certificate type
WRAS
Certificate type
All-in-one filtered boiling, chilled and sparkling water tap with differing capacities and design options.
Application
Suitable for a variety of environments including: Offices and workplaces Healthcare Education Industrial and institutions Retail Hotels, restaurants, bars and cafes Leisure, sports and stadia Local authority and public buildings.
Description
Features and benefits:
- Sub micron filtration technology - It features our industry leading 0.2 micron filtration technology that filters out dirt, lead, cysts and microplastics for pure-tasting drinking water.
- SteriTouch® antimicrobial silicone – SteriTouch is an antimicrobial additive for key materials used in the Classic Plus tap’s controls and the command centre’s water path to virtually eliminate surface bacteria.
- Safety lock – Boiling safety lock option for safe delivery of boiling drinking water.
General information
Color | Black Silver |
Finish | Brushed Matt |
Material | Steel |
Shape | Other |
Length | 520 mm |
Width | 500 mm |
Height | 373 mm |
Warranty description | Two year Appliance warranty 24 months plus additional 36 months boiling tank warranty |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Instant boiling and cold water taps
Water | Boiling. |
Duty | - |
Hot cups | 160 per hour. |
Dimensions | 500 x 520 x 373 mm. |
Electrical connection | - |
Voltage | 230 V (50/60 Hz). |
Water inlet | 1/2” BSP. |
Colour/ Finish | Brushed chrome. Brushed gold. Brushed nickel. Brushed rose gold. Bright. |
Font | Not required. Required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 199 kg CO₂ eq/m² |
Recyclability | 99.8% |
Recycled content | 0 % |
EPD
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 ARCHICAD | - | 1 |
Third party certifications
EPD
Environmental Product Declaration
WRAS
WRAS - classic, plus, Wave, Arc HydroTap Range
WRAS
WRAS HydroTap G5 BCS
