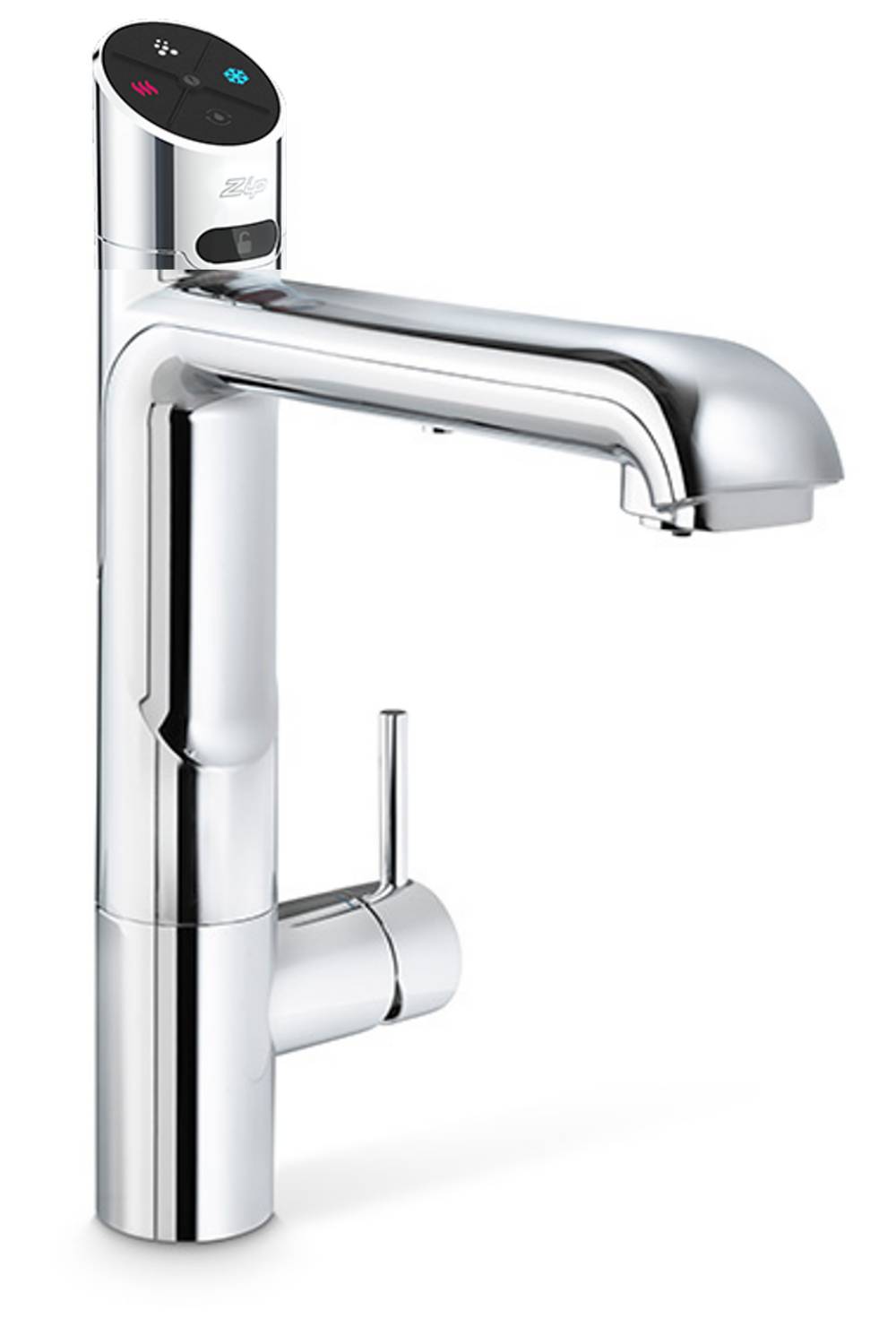

HydroTap G5 All-In-One Classic Plus Instant Filtered Boiling, Chilled And Sparkling Tap - Water Tap

Verified by manufacturer 3 months ago

Boiling, chilled 160/175 - H56704Z00UK

Zip Water Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • WRAS

    WRAS

    Certificate type

Tap which provides filtered boiling, chilled and sparkling water as well as unfiltered hot and cold with differing capacities and design options..

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for a variety of environments including: Offices and workplaces Healthcare Education Industrial and institutions Retail Hotels, restaurants, bars and cafes Leisure, sports and stadia Local authority and public buildings.

Description

Boiling, chilled, sparkling filtered water, plus hot and cold washing up water, from a single tap. The system features a 'Quiet' mode with automated intelligent fan speed adjustment.


Features and benefits:

  • Sub micron filtration technology - It features our industry leading 0.2 micron filtration technology that filters out dirt, lead, cysts and microplastics for pure-tasting drinking water.
  • Antimicrobial Additive for key materials used in the Classic Plus tap’s controls to virtually eliminate surface bacteria.
  • Safety lock – Boiling safety lock option for safe delivery of boiling drinking water.

General information

Color

Black

Silver

Finish

Brushed

Matt

Material

Steel

Shape

Other

Length

483 mm

Width

339 mm

Height

333 mm

Warranty description

Two year

Guidance for specification option:

Appliance warranty 24 months plus additional 36 months boiling tank warranty

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Product range

Instant Boiling and Chilled Tap

Specification data - Instant boiling and cold water taps

Water

Boiling, chilled, hot, cold.

Duty

-

Hot cups

160 per hour.

Cold cups

175 per hour.

Dimensions

500 x 520 x 373 mm.

Electrical connection

-

Voltage

230 V (50/60 Hz).

Water inlet

1/2” BSP.

Colour/ Finish

Bright.

Brushed chrome.

Matt black.

Vent

This command centre comes with a separate vent tray which will be attached to the exterior.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

199 kg CO₂ eq/m²

Recyclability

99.8%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

ARCHICAD
-

1

Third party certifications

EPD

EPD

Environmental Product Declaration

WRAS

WRAS

WRAS HydroTap G5 BCS

WRAS

WRAS

WRAS all-in-one

Literature

Zip Water Commercial Price List 2024

Zip Water Commercial Price List 2024

Zip Commercial Product Guide - HydroTap

Zip Commercial Product Guide - HydroTap

HydroCare Commercial Flyer 2024

HydroCare Commercial Flyer 2024

Case studies

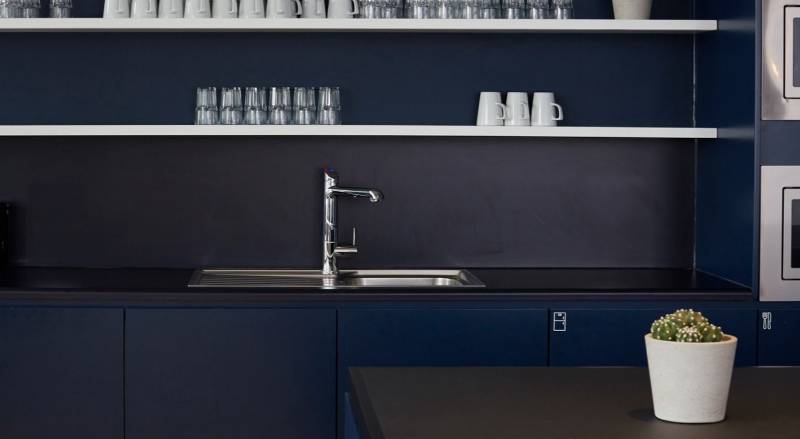

The Office Group

The Office Group
