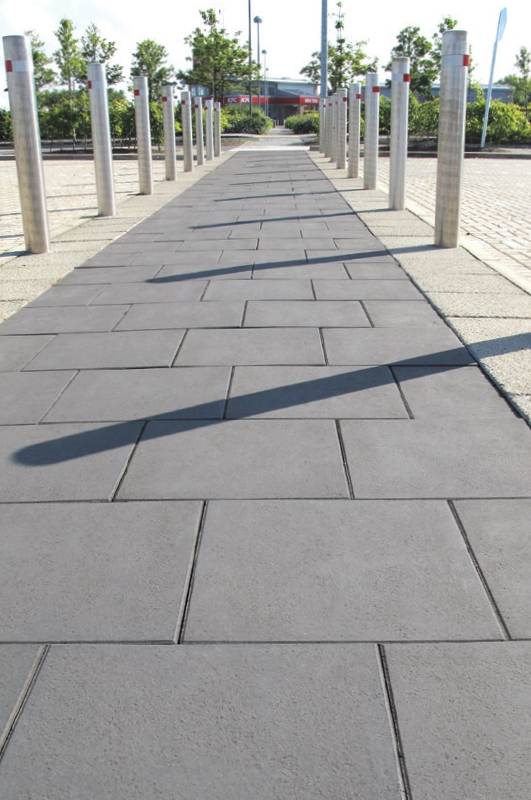

Hydropave Classica Slabs | Permeable Paving Slab

Verified by manufacturer 2 months ago

Tobermore

Concrete smooth finish paving slab.

Jump to:
BOS
+44 (0)844 800 5736 Website

Application

Suitable for all pedestrian areas and traffic-free zones, with some sizes suitable for occasional vehicular overrun.

Description

Concrete smooth finish paving flag manufactured to BS EN 1339.


Features and benefits:

  • Functions as a SuDS paving system.
  • Non-slip finish.
  • Superb hard-wearing smooth surface.
  • Significantly reduced efflorescence.
  • BREEAM rating: A ('A+' rating can be achieved by using a recycled sub-base).
  • Has frost protection.

General information

Color

Other

Guidance for specification option:

  • Charcoal.
  • Natural.

Finish

Smooth

Material

Concrete

Shape

Square

Length

400 mm

Width

400 mm

Height

65 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q25/315 Concrete flags

Product range

Tobermore Hydropave I Permeable Paving

Specification data - Concrete paving blocks

Standard

To BS EN 1339.

Physical properties

-

Colour

Charcoal.

Natural.

Finish

Smooth.

Dimensions and associated tolerances

-

Nominal sizes

400 x 400 x 65 mm.

Slip resistance

Extremely low (>75 USRV).

Skid resistance

Extremely low (>75 USRV).

BREEAM rating

A (A+ can be achieved when used with recycled sub-base).

Drainage void width

2.7% to accommodate correct grit grading and reduced maintenance and maximize drainage flow rate.

Efflorescence

Minimum 12-hour vapour curing to significantly reduce the possibility of efflorescence

Permeability

15 000 L/s/ha.

EnergyUsed

100%.

WaterUsed

100%.

Surface finish

Hard-wearing surface layer with a minimum layer of 4 mm and >390 kg/m³ cement.

Bending strength

>3.5 MPa.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Concrete

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

16.99 kg CO₂ eq/m²

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Not less than 6%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
