HYDRO - Dry hollow floor for humid areas
Verified by manufacturer 4 months ago
Cement-based hollow floor with tongued and grooved panels glued together.
Application
- Wet and humid areas.
- Industry and working rooms.
- Training and research rooms.
- Office refurbishment.
Description
The dry hollow floor system HYDRO was specifically developed for areas with increased humidity stress. The humidity resistant hollow floor system consists from high-density cement fibre panels which effectively prevents the absorption of water. Suitable finishes include ceramics, natural stone, coatings and elastic coverings.
Features and benefits:
- High loadability.
- Quick installation.
- Water resistant.
- Mildew resistant.
- Non-combustible.
- Finished floor heights 84–800 mm.
System comprises:
- Panel: Highly compressed cement based panel, edge connection via tongue and groove, glued.
- Heavy-duty pedestal: Precisely height adjustable, manufactured from galvanized steel, precision threaded rod.
- Gluing: Placing of pedestal base in adhesive, panel glued to pedestal head.
- Wall connection: Pre-compressed foam tape, as sound barrier and to absorb horizontal movements.
General information
Material | Fibre cement Steel Guidance for specification option: Galvanized. |
Shape | Square |
Length | 593 mm |
Width | 593 mm |
Height | 40 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Proprietary raised access floor |
SKU Code | HYDRO Z 40 x L / B |
Product range |
Specification data - Hollow floor systems
Classification data | |
System performance | To BS EN 13213. |

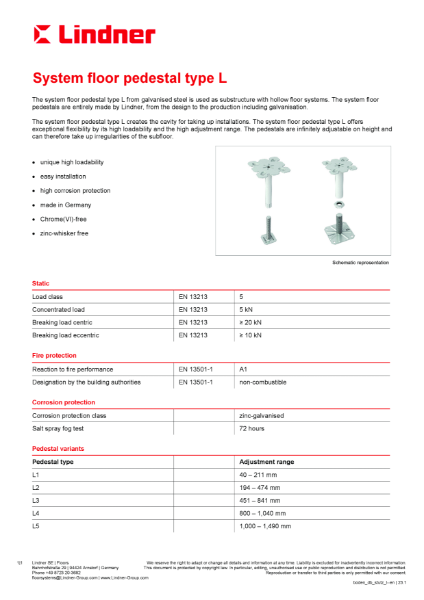

Support structure type | Access floor L-type pedestals, zinc-coated steel. |
Pedestal fixings | Pedestals: Adhesives. |
Hollow floor surface | Raised access floor panels, cement fibre. |
System accessories | Pre-compressed foam tape. Guidance for specification option: At wall connection as sound barrier and to absorb horizontal movements. |
Components | Hydro Z 40 x L/B 40 mm thick floor panels. Adjustable pedestals; pedestal grid: 593 x 593 mm. Guidance for specification option: High-density cement fibre panels are used which prevent water absorption. Pedestals feature zinc coating for corrosion resistance. Specify pedestal height(s) below, see Pedestal height. |
Pedestal height | Guidance for specification option: Standard pedestal height ranges from 40–2000 mm. Insert requirements. |
Calculated weighted sound reduction index (Rw) | To DIN EN ISO 10140-2, 64 dB. |
Fire resistance | To DIN EN 13501-2, REI 30. Guidance for specification option: Fire resistance up to EN 13501-2, REI 30 is possible with additional measures; consult manufacturer for more details and insert requirements. |
Load class | To DIN EN 13213, 5 (5 kN). |
Panel Thickness | 40 mm. |
Weight | 68 kg/m². Manufacturer guidanceWeight of system with a floor height of 150 mm. |
Fire performance | To BS EN 13501, A1 (fully non-combustible). |
Reference | HYDRO. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Fibre cement Steel Guidance for specification option: Galvanized. |
Expected Life | 50 year |
Literature

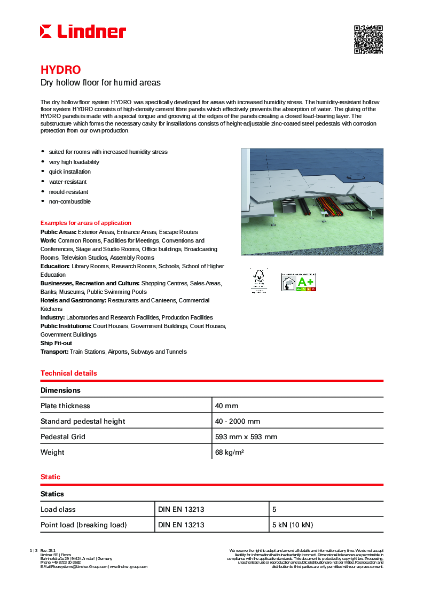

HYDRO
