Description

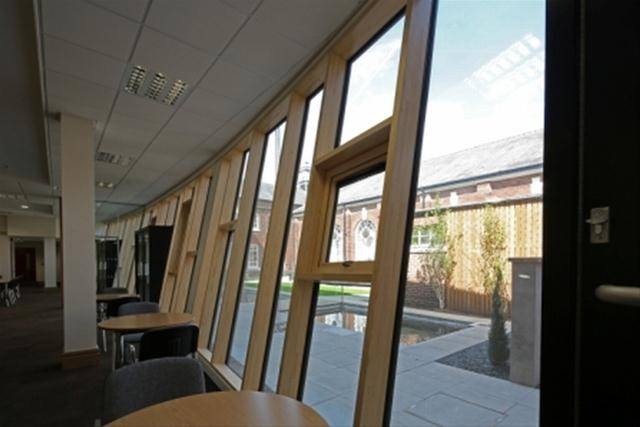

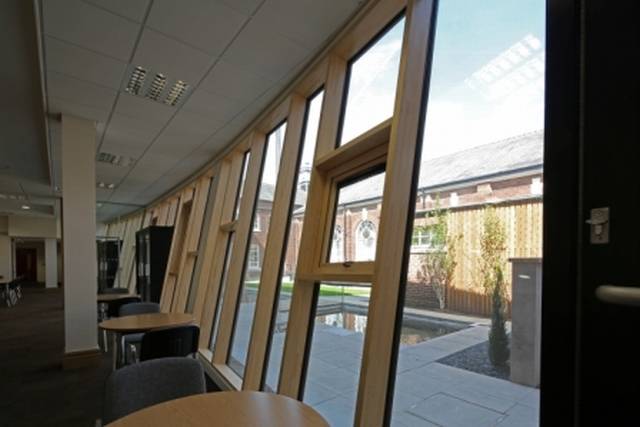

A high performance, zone drained stick system. It achieves very high thermal insulation values, providing U Values well below the current and anticipated future Building Regulation requirements.

Comprising the insulating benefits of engineered timber on the inside and the durability of aluminium on the outside, the curtain wall can incorporate all of the Senior Hybrid and Aluminium windows and doors. Hybrid Curtain Walls are constructed using 50 mm vertical mullions with face fixed horizontal transoms on both the aluminium and the timber profiles. A range of transom and mullion sections are available to maximize performance.

Performance

The Hybrid Curtain Wall has been tested in accordance with the CWCT Curtain wall standard and BS EN 13830: 2003.

General information
Features

High thermal performance, excellent weather performance

Uniclass 2015 Stick curtain walling systems (Ss_25_10_20_85)
Specification data
Product Reference

Hybrid Series 3 Composite Curtain Wall System

Internal framing member -
Material

Engineered timber

Finish

Clear lacquer

Water based paint, colour ___

External cover cap -
Material

Aluminium alloy to BS 1474: 1987

Finish

Anodized, colour ___

Polyester powder coated, colour ___

Minimum film thickness

___ micrometres

Glazing

Insulating glass units, ___ mm thick

Glazing system

Dry glazed, dual gaskets

Standard product features

Type of curtain walling:

Stick system, thermally broken, engineered timber section and aluminium plate format, compartment drained.

Material:

  • Extruded Aluminium Alloy 6063 T6 to BS EN 755-9:2001 glass carrier plus purpose engineered Spruce laminated timber GlulamBeam, certified to MPA Stuttgart DIN 1052 with Class GL24h,(structural); melamine glue and stability Class BS 18, weather proof and heat proof, with a moisture content of 12% +/- 2%, only lamellaes in principle without faults (like knots and flaws) are laminated.
  • Finger joints in outer layer minimum 500 mm centres.
  • PEFC /04-32-0042 Certified.

Consult manufacturer for other timber species, special order.

Framing member spacing:

Maximum width: 2400 mm. Maximum height to suit conditions.

Gaskets:

Type of curtain walling: Stick system, thermally broken, engineered timber section and aluminium plate format, compartment drained. Framing member spacing: Maximum width: 2400 mm. Maximum height to suit conditions. Gaskets: PVC Nytrile manufactured to BS 3734 and BS 7412 Cat A.

Product Options

Finish/ Colour:

Consult with Senior Architectural Systems for availability of colours and to obtain samples.

Minimum film thickness:

Consult with Senior Architectural Systems for recommendations and details.

Glazing:

  • 6–28 mm thick glazing available.
  • Consult with Senior Architectural Systems for recommendations and details.

Glazing System:

The system is dry glazed using compressed seals for optimum performance.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
