Hybratec - Expanding foam tape

Verified by manufacturer 4 months ago

ISO-Chemie GmbH

All in one passivhaus certified sealing tape.

Jump to:
+44 (0)1207 566867 Website

Application

It offers absolute air tightness and maximum thermal protection that is mandatory for passive houses and zero-energy houses as well as resistance to driven rain that has been adapted to climate change yet still guarantees long term permanent absorption to movement.


Primarily used for:

  • Window sealing.
  • Metal building sealing.
  • Timber building sealing.

Description

ISO-BLOCO HYBRATEC combines the quality features of premium window connection foils with the benefits of MF 1-certified (previously BG 1- and BG R-certified) multi-functional joint sealing tapes. This new hybrid technology combines excellent impermeability to air and resistance to driving rain with the considerable expansion force and significant long-term capacity to absorb movements of pre-compressed PUR soft foam.


With an a-value of 0.00 m3/[h·m·(daPa)n], ISO-BLOCO HYBRATEC is 100% airtight on the inside, preventing heat losses by convection.


Features and benefits:

  • 100% air-tight, thermal and acoustic performance, vapour tight.
  • Hybrid technology thanks to film barrier layers.
  • Sealing of a wide range of different joints with one tape dimension 6–40 mm.
  • Absolutely air tight thanks to several barrier layers of film.
  • Double protection thanks to hybrid technology.
  • No flow of warm air from the inside to the outside.
  • Maximum energy saving.
  • Resistant to driven rain in excess of 1,050 Pa.
  • Complies with the principle 'inside tighter than outside' thanks to several barrier layers of film.
  • Optimum transportation of humidity.
  • High drying effect.
  • High functional reliability due to large expansion ability.
  • Certified Passive House component.
  • Complies with the requirements of the Building Energy Act and the recommendations of the RAL installation guide.
  • 10 Year Function Warranty.

General information

Color

Black

Finish

Anti-skid

Material

Polyisocyanurate (PIR)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

On the conditions of the manufacturer.

Uniclass

Pr_35_90_87_69 Polymer-based adhesive sealant tapesPrimary

CAWS

L10/75 Sealant joints

L10/810 Sealant joints

Specification data - Polymer-based adhesive sealant tapes

Material

Polyisocyanurate (PIR).

Bond

Self-adhesive.

Fire performance

-

Fire resistance

To DIN 4102, Class B1.

Air permeability

Airtight.

Size

3-14 mm.

4-20 mm.

6-40 mm.

Colour

Black.

Water permeability

To DIN EN 1027, ≥1050 Pa.

Classification

To DIN 18542, MF 1.

ThermalConductivity

To DIN EN 12667, ≤0.048 W/mK.

Sound reduction

Up to 60 dB.

U-value

0.6-0.8 W/m²K.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

97 %

Literature

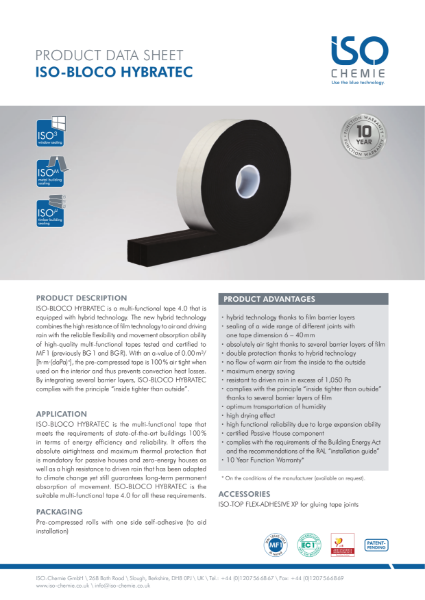

ISO BLOCO HYBRATEC
