HVR800 High Voltage Relay
Verified by manufacturer 4 months ago
Certificate of constancy of performance
Certificate type
Non-addressable multi-voltage relay module.
Application
Used to extend the contact ratings of FC410RIM Addressable Relay Module applications.
Description
The HVR800 High Voltage Relay Interface is a non-addressable multi-voltage relay module (operating from 24 V d.c, 24 V a.c, 120 V a.c and 240 V a.c). The encapsulated HVR800 provides a 10 amp volt-free contact that can be used to extend the contact ratings of FC410RIM Addressable Relay Module applications.
A maximum of four HVR800s can be individually driven and controlled by an FC410MIO small addressable multi-input/ output module if all HVR800s are powered by 120 V a.c or 240 V a.c. For ac operation, no external dc power supply unit is required to operate the relay.
When used to switch 24 V d.c, the HVR800 must be provided with an external 24 V d.c supply which should be switched through the clean relay contacts of an FC410MIO or FC410RIM.
Features and benefits:
- Non-addressable.
- Allows a low current mains rated relay to switch up to 10 A.
- Operating from 24 V d.c, 24 V a.c, 120 V a.c and 240 V a.c.
- For ac operation, no external dc power supply unit is required to operate the relay.
General information
Color | Black |
Finish | Semi-gloss |
Material | Acrylic |
Shape | Rectangle |
Length | 73.6 mm Manufacturer guidanceDepth. |
Width | 41.5 mm |
Height | 26.5 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Specification data - Relay interface modules
Manufacturer | ADT Fire and Security. |
Product reference | HVR800 High Voltage Relay. |
Standards | To EN 61000.6.3 and EN 50130-4. |
Dimensions | 26.5 x 73.6 x 41.5 mm. |
Operating temperature | -20 to +70 ºC. |
Humidity | Up to 95% RH non-condensing. |
Weight | 172 g. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Material | Acrylic |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications

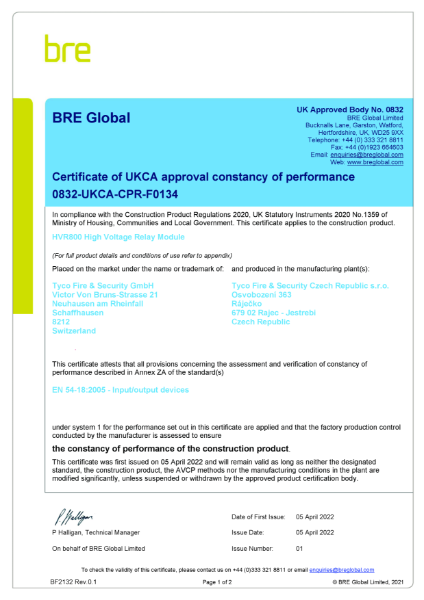

Certificate of constancy of performance
HVR800 CPR
