HTM71 Modular Storage
Verified by manufacturer 1 month ago

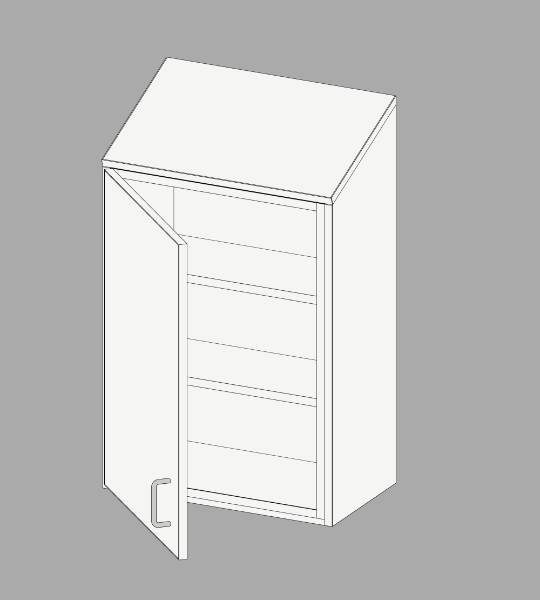

WH43L HTM71 wall unit, left-hand hinged
WH43L HTM71 wall unit, left-hand hinged
A range of modular storage units for healthcare environments.
Application
Suitable for healthcare environments.
Description
Purpose built HTM71 modular storage units for healthcare environments.
Features and benefits:
- High quality.
- Purpose built to requirements.
- Factory fitted, complete with doors and accessories.
- Delivered fully assembled, ensuring quality is maintained throughout the manufacture process.
General information
Color | Other Guidance for specification option: Colour from the Benchmark colour collection. White Grey |
Finish | Laminated |
Material | PVC MFC Medium density fibreboard (MDF) Laminate |
Shape | Rectangle |
Length | 655 mm 455 mm 355 mm |
Width | 355 mm 455 mm 655 mm |
Height | 700 mm 920 mm 2100 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/10 Purpose-made N10/135 Storage and display units |
Specification data - Laboratory storage units
Dimensions | Manufacturer guidanceConsult variants tab for details. |
Material | Melamine Faced Chipboard (MFC). |
Colour | Manufacturer guidanceColour from the Benchmark colour collection. Consult manufacturer for details and insert requirements. |
Plinth | 18 mm black melamine-faced moisture-resistant MDF. |
Handles | Solid stainless steel ‘D’ type (non lacquered). 10 mm diameter, 160 mm centres. |
Hinges | Hettich 270° exposed knuckle hinge. |
Locks | Not required. Hafele Symo 3000 rim lock (Hafele Symo 3000 rim lock, suited if required) |
Exposed edges | 2 mm PVC lipped. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC MFC Medium density fibreboard (MDF) Laminate |
Manufacturing plant location | |
Expected Life | 12 year |
Literature
Benchmark Company Overview Brochure
Benchmark Specification Manual
Case studies

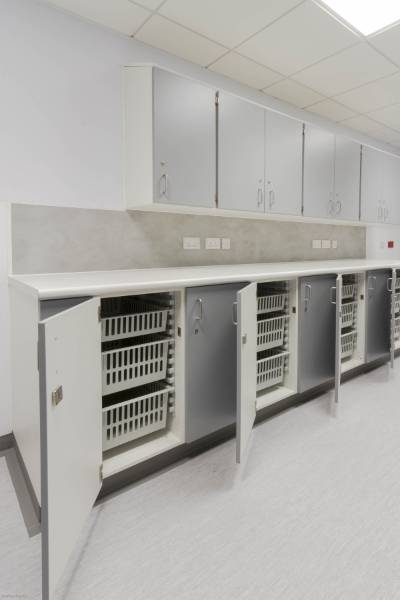

Mildenhall Hub, Suffolk
Similar products from Benchmark Products

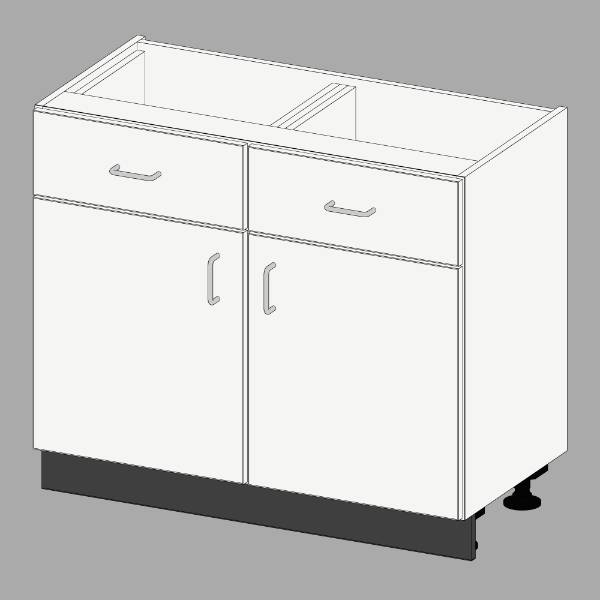

HTM63 / HTM71 Base Unit
