HTM63 Drawer-line Base Unit
Verified by manufacturer 1 year ago

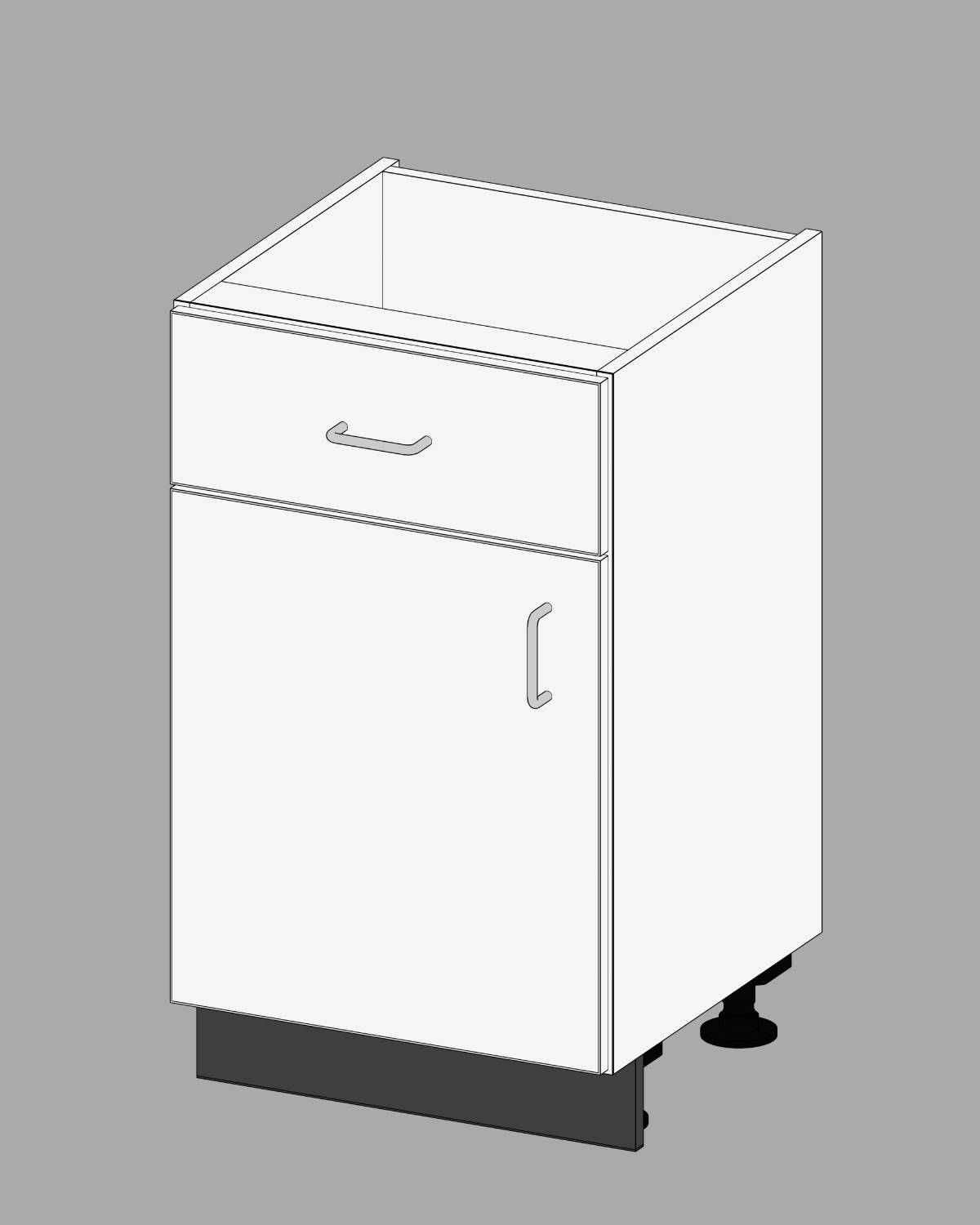

WMHSDLB50 Single drawerline base unit, wall mounted - 500 mm wide
WMHSDLB50 Single drawerline base unit, wall mounted - 500 mm wide
A range of drawer-line base unit for healthcare environments.
Application
Suitable for healthcare environments.
Description
Purpose built HTM63 drawer-line base unit for healthcare environments.
Features and benefits:
- High quality.
- Purpose built to requirements.
- Factory fitted, complete with doors and accessories.
- Delivered fully assembled, ensuring quality is maintained throughout the manufacture process.
General information
Color | Other Guidance for specification option: Colour from the Benchmark colour collection. |
Finish | Laminated |
Material | PVC MFC Medium density fibreboard (MDF) Laminate |
Shape | Rectangle |
Length | Bespoke |
Width | 500 mm 600 mm 900 mm 1000 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/10 Purpose-made N10/135 Storage and display units |
Specification data - Laboratory storage units
Classification data | |
Dimensions | Manufacturer guidanceConsult variants tab for details. |
Material | Melamine Faced Chipboard (MFC). |
Colour | Manufacturer guidanceColour from the Benchmark colour collection. Consult manufacturer for details and insert requirements. |
Plinth | 18 mm black melamine-faced moisture-resistant MDF. |
Handles | Solid stainless steel ‘D’ type (non lacquered). 10 mm diameter, 160 mm centres. |
Hinges | Hettich 270° exposed knuckle hinge. |
Locks | Not required. Hafele Symo 3000 rim lock (Hafele Symo 3000 rim lock, suited if required) |
Exposed edges | 2 mm PVC lipped. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC MFC Medium density fibreboard (MDF) Laminate |
Manufacturing plant location | |
Expected Life | 12 year |
