Description

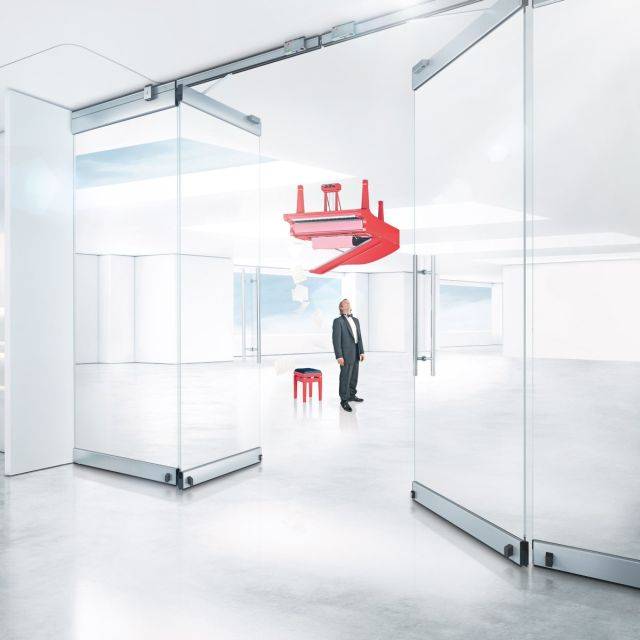

Manual top hung sliding glass partition system consisting of running track, stacking area and optional panel configuration. Outstanding horizontal glass sliding wall that gives safety in use and transparent elegance in design, the HSW Easy Safe offers enhanced convenience and security for the installer and user. The new door rail facilitates effortless and time-saving installation thanks to proven clamp and glue technology. Suitable for toughened glass thicknesses 10–19 mm with optional safe use of laminated safety glass for added safety. The new 3-in-1 multi-lock offers three options for secure locking. Additional intelligent solutions like a status display, a concealed door closer and double brush seals to minimize drafts, ensure more convenience and security.

General information
Size

Consult manufacturer's literature and insert requirements.

Uniclass 2015 Sliding stacking panel partitions (Pr_25_71_57_80)
Specification data
Product Reference

HSW Easy Safe

Size

Consult manufacturer's literature and insert requirements.

Configuration

Basic sliding panels

Carrier profile

Fixed panels

Single/ double action door panels

Single/ double action sliding door panels

Track and options for Stacking Area

Glazing -
Type

Laminated

Toughened

Thickness

10–19 mm; insert requirements.

Profile finish

Aluminium mill finish

Aluminium silver

Aluminium silver EV1

Aluminium similar satin stainless steel

Polyester powder-coated

Special anodized

Stainless steel

Standard product features

Size (maximum, w x h):

1250 x 4000 mm for sliding and end panels; 1250 x 3600 mm for single/ double action sliding panels.

Panel weight:

150 kg (for sliding and end panels); 120 kg (for single/ double action sliding panels).

Components:

  • Extruded aluminium profile running track.
  • Extruded aluminium top and bottom rails clamped to toughened glass panels comprising of base rails, clip on decorative covers and end caps.
  • Panels secured in closed position by either hand or foot operated shoot bolts or cylinder locking into floor mounted keeps.
  • 3 in 1 Multilock with three locking options: front, side or cylinder locking.
  • Locking status device on the door panel.
  • Single action fixed end panel controlled by floor pivot and TS92 or TS73 door closer. Double action panel with floor pivot or BTS floor spring.
  • Single or double action sliding panels controlled by TS 92 or ITS 96 door closer.
  • Sliding stacking panels hung from purpose made roller assemblies consisting of composite multi-directional rollers with non-corrosive engineered carriers.
  • Top panel profile includes double brush seals as standard. Double brush seals optional for the bottom door rails.
  • Optional vertical double brush seals can be fitted up to the full height of the door and give additional draught proofing.

Manufacturing standards:

  • Wind load (frame bending): EN 12210.
  • Endurance strength: DIN EN 1527 and DIN EN 1191 Class 3.
  • Side impact: DIN EN 13049 Class 5 (highest class).
  • Corrosion: DIN EN 1670 Class 4.
  • Environmental Product Declaration (EPD): ISO 14040.
