HSF 1.5 and 1.8 - PVC Membrane
Verified by manufacturer today
DANOPOL+ HSF 1.5
DANOPOL+ HSF 1.5
BBA Agrément Certificate
Certificate type
UV-resistant, synthetic plasticized PVC membrane for waterproofing applications.
Application
- Channel waterproofing (EN 13362).
- Mechanically fastened roof waterproofing systems (EN 13956).
- Waterproofing of reservoirs and dams (EN 13361).
- Waterproofing against fluids in the construction of tunnels and underground structures (EN 13491).
Description

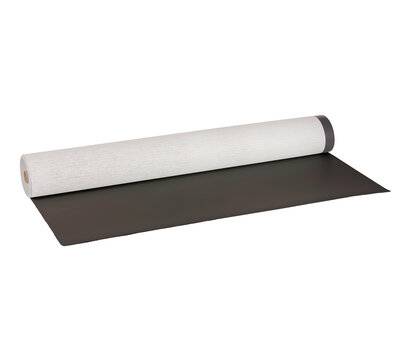

Danopol+ HSF 1.5 and Danopol+ HSF 1.8 are PVC-P single-ply membranes, reinforced with polyester net carrier and a 300 g geotextile fleece bonded to the underside. The 6 cm overlap on its right longitudinal side enables overlaying and welding to the adjacent membrane.
Features and benefits:
- Good absorption of structural movements.
- High tensile strength.
- High resistance to piercing.
- Hot air welded: Flame-free system.
- Great elasticity.
- High resistance to tearing.
- Allows for adaptation to any type of geometry.
- UV resistant.
- System bonded to the support by a projected adhesive.
General information
Color | Grey |
Finish | Smooth |
Material | Polymer |
Shape | Rectangle |
Length | 15000 mm 13000 mm |
Width | 1800 mm |
Height | 1.5 mm 1.8 mm |
Uniclass | |
CAWS | J31/47 Waterproof coating J31/353 Waterproof coating |
SKU Code | 210312 |
Specification data - Polymeric membranes
Classification data | |
Material | Polyvinyl chloride (PVC). |
Standard | To EN 13956, EN 13967, EN 13361, EN 13491 and EN 13362. |
Third-party certification | British Board of Agrément (BBA) certificate. Environmental Product Declaration (EPD). European Technical Approval (ETA). |
Performance characteristics | |
External fire performance | To EN 13501-5, FROOF. |
Reaction to fire | To EN 13501-1, Class E. |
Root resistance | To EN 13948, resistance to root penetration: pass. |
Tear resistance | To EN 12310-2, longitudinal and transversal resistance to tearing (nail shank) >400 N. |
Integral backing fleece | 300 gsm geotextile fleece. |
Width (minimum) | 1800 mm. |
Thickness (minimum) | 1.5 mm. |
Colour | Anthracite. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Reinforcement | Polyester net. |
Resistance to impact | To EN 12691, resistance to impact >800 mm. |
Flexibility at low temperature | To EN 495-5, flexibility at low temperature <-30°C. |
Sustainability data
Country of product manufacture | Spain |
Material | Polymer |
Product certifications

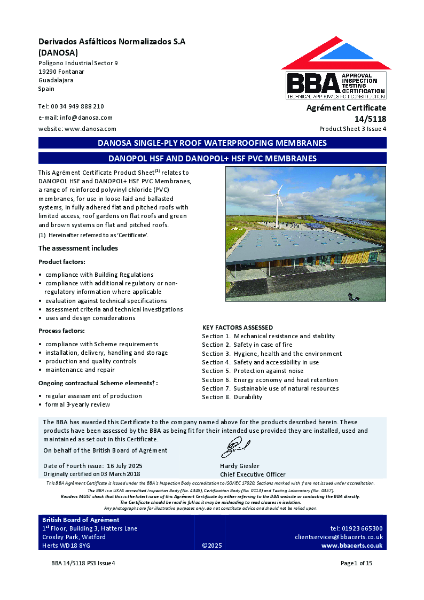

BBA Agrément Certificate
Danosa Single-ply Roof Waterproofing Membranes - DANOPOL HSF and DANOPOL HSF+ BBA 14/5118
Literature
Danosa - DANOPOL+ HSF 1.5
Danosa - DANOPOL+ HSF 1.8
