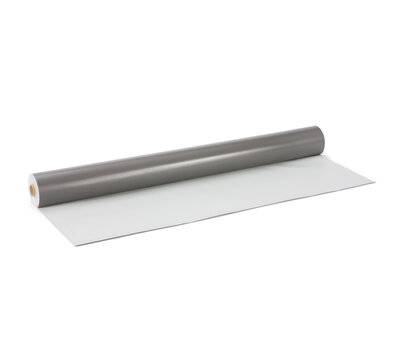

FV 1.5 - Waterproofing Membrane
Verified by manufacturer today
Single ply, 1.5 mm PVC membrane for waterproofing applications.
Application
- Protection against leaks in the construction of tunnels and buried structures.
- Waterproofing of reservoirs and dams.
- Channel waterproofing (EN 13362).
- Loose laid roofing membrane, including green roofs.
- Tanking membrane.
Description
Danopol FV 1.5 is a UV-resistant synthetic plasticized PVC membrane reinforced with a fibreglass carrier for waterproofing applications.
Features and benefits:
- Good absorption of structural movements.
- High elongation at break.
- Hot air welded: Flame-free system.
- High dimensional stability.
- High resistance to root penetration.
- Allows for adaptation to any type of geometry.
- Product compatible with inverted roof systems.
- UV-resistant.
General information
Color | Grey |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 15000 mm |
Width | 1800 mm |
Height | 1.5 mm |
Uniclass | |
CAWS | J42/28 Waterproof membrane J42/400 Waterproof membrane |
SKU Code | 210029 |
Specification data - Polymeric membranes
Classification data | |
Material | Polyvinyl chloride (PVC). |
Standard | To EN UNE-13956, UNE-EN 13491, UNE-EN 13361, UNE-EN 13362, and UNE-EN 13967. |
Third-party certification | British Board of Agrément (BBA) certificate. Environmental Performance Declaration (EPD). |
Performance characteristics | |
External fire performance | To EN 13501-5, FROOF. |
Reaction to fire | To EN 13501-1, Class E. |
Root resistance | To EN 13948, resistance to root penetration: pass. |
Tear resistance | To EN 12310-2, longitudinal and transversal resistance to tearing (nail shank) >150 N. |
Width (minimum) | 1800 mm. |
Thickness (minimum) | 1.5 mm. |
Colour | Light grey. |
Accessories | Not required. Elastydan PU 40 Grey sealant. Glue-Dan PVC. Danopol Liquido. Danopol adhesive. Laminated profiles. Corners. Cups. Pipe penetrations. |
Reinforcement | Fibreglass carrier. |
Resistance to impact | To EN 12691, >700 mm. |
Flexibility at low temperature | To EN 495-5, <-30°C. |
Sustainability data
Country of product manufacture | Spain |
Material | Polyvinyl chloride (PVC) |
Literature

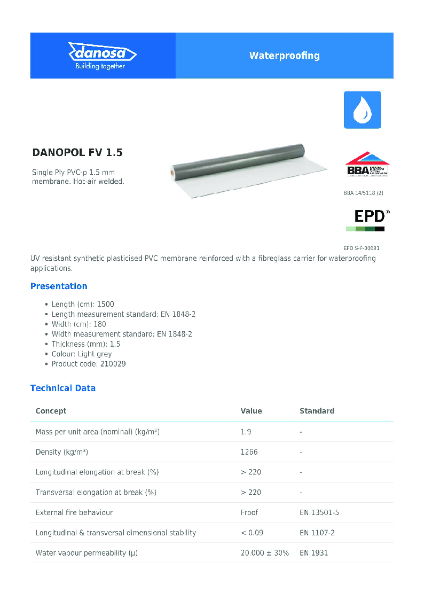

Danosa - DANOPOL FV 1.5
