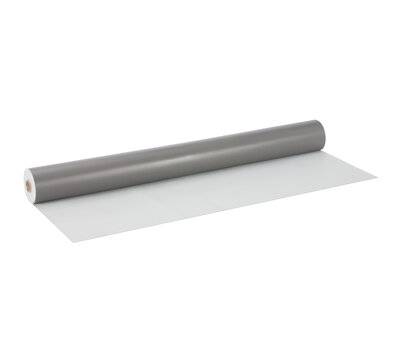

HS 1.5 and 1.8 - Waterproofing Membrane
Verified by manufacturer 1 day ago
DANOPOL HS 1.5
DANOPOL HS 1.5
BBA Agrément Certificate
Certificate type
Single-ply, PVC membrane for waterproofing applications.
Application
- Channel waterproofing (EN 13362).
- Mechanically fastened roof waterproofing systems (EN 13956).
- Waterproofing of reservoirs and dams (EN 13361).
- Waterproofing against fluids in the construction of tunnels and underground structures (EN 13491).
Description
Danopol HS 1.5 and Danopol HS 1.8 are synthetic PVC plasticized membranes, reinforced with polyester net carrier. Designed for flat roof waterproofing. UV-resistant.
Features and benefits:
- Good absorption of structural movements.
- High tensile strength.
- High resistance to piercing.
- Hot air welded: Flame-free system.
- Great elasticity.
- High resistance to tearing.
- Allows for adaptation to any type of geometry.
- UV-resistant.
- System fixed by metallic, plastic or induction fixation.
General information
Color | Grey |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 20000 mm 17000 mm |
Width | 1080 mm |
Height | 1.5 mm 1.8 mm |
Uniclass | |
CAWS | J42/28 Waterproof membrane J42/400 Waterproof membrane |
SKU Code | 210077 |
Specification data - Polymeric membranes
Classification data | |
Material | Polyvinyl chloride (PVC). |
Standard | To EN 13956, EN 13361, EN 13362, EN 13491. |
Third-party certification | British Board of Agrément (BBA) certificate. Environmental Product Declaration (EPD). European Technical Assessment (ETA). FM Approved. |
Performance characteristics | |
External fire performance | To EN 13501-5, BROOF (t1), BROOF (t3), BROOF (t4). |
Reaction to fire | To EN 13501-1, Class E. |
Root resistance | To EN 13948, resistance to root penetration: pass. |
Tear resistance | To EN 12310-2, longitudinal and transversal resistance to tearing (nail shank) >250 N. |
Width (minimum) | 1080 mm. |
Thickness (minimum) | 1.5 mm. |
Colour | Light grey. |
Accessories | Not required. Elastydan PU 40 Grey sealant. Danopol adhesive. Laminated profiles. Corners. Cups. Pipe penetrations. |
Reinforcement | Polyester net. |
Resistance to impact | To EN 12691, >700 mm. |
Flexibility at low temperature | To EN 495-5, <-30°C. |
Sustainability data
Material | Polyvinyl chloride (PVC) |
Product certifications
BBA Agrément Certificate
Danosa Single-ply Roof Waterproofing Membranes - DANOPOL HS and DANOPOL HS+ BBA 14/5118
Literature
Danosa - DANOPOL HS 1.5
Danosa - DANOPOL HS 1.8
