NBS Source
Howe Green 7500 Series Floor Access Hatch
Compare variants

Application

Suitable for all types of hard floor finishes including ceramic tiles, marble, terrazzo, concrete, resin, wood or parquet.

Description

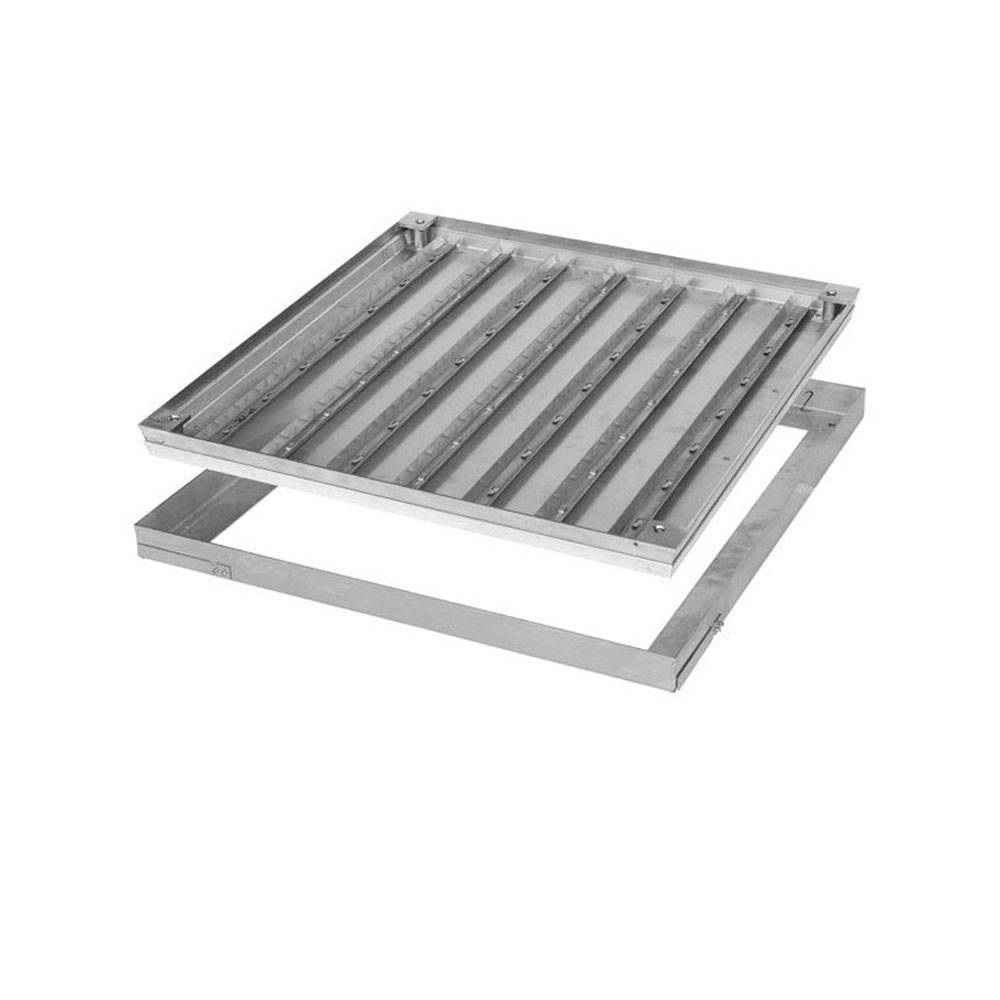

The class-leading, medium-duty, floor access covers are suitable for all use with all types of hard floor finishes to enable permanent, safe access to services concealed underneath.


The Howe Green 7500 Series are double sealed as standard and available in single, duct or multipart configurations for use in areas interior or exterior with up to 5 tonne pneumatic tyre wheel load (cars and light delivery vehicles).


Features and benefits:

  • Made to specification between stated maximum and minimum sizes, with no time or cost constraint.
  • Quick and easy to install ensuring minimum disruption.
  • Provides easy access to underfloor services using lifting keys.
  • Any configuration of ducts and branches can be created to provide a tailor-made floor access solution for your application.
  • Double sealed to provide the highest levels of hygiene and security.

General information

Color

Silver

Material

Aluminium

Stainless steel

Shape

Square

Size

300 x 300 mm

450 x 450 mm

600 x 600 mm

750 x 750 mm

900 x 900 mm

Uniclass

Pr_30_59_36_30 Floor hatchesPrimary

CAWS

P30/301 Access covers, manhole tops and frames

L20/630 Hatches

Specification data - Floor hatches Enhanced data

Third-party certification

CERTIFIRE.

Format

Single.

Door

-

Orientation

Horizontal.

Position

Flush.

Material

Aluminium.

Operation

-

Mode

Manual.

Accessories

None.

Cover Lifting Skate.

Lifting Keys.

Load capacity

Up to 5 tonne.

Dimensions

300 x 300 mm.

450 x 450 mm.

600 x 600 mm.

750 x 750 mm.

900 x 900 mm.

Show more

FrameDepth

75 mm.

Flooring thickness (maximum): 32 mm.
