Horizontal Wall Mounted Baby Changing Table

Verified by manufacturer 20 days ago

FW3

Wall Mounted Horizontal Baby Changer Unit.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Baby change unit suitable for use in various commercial locations, such as restaurants, hotels, hospitals, shopping centres, airports, and stations.


Baby changing station used by the following brands: Co-Op, WREN Kitchens, and TGI Fridays!

Description

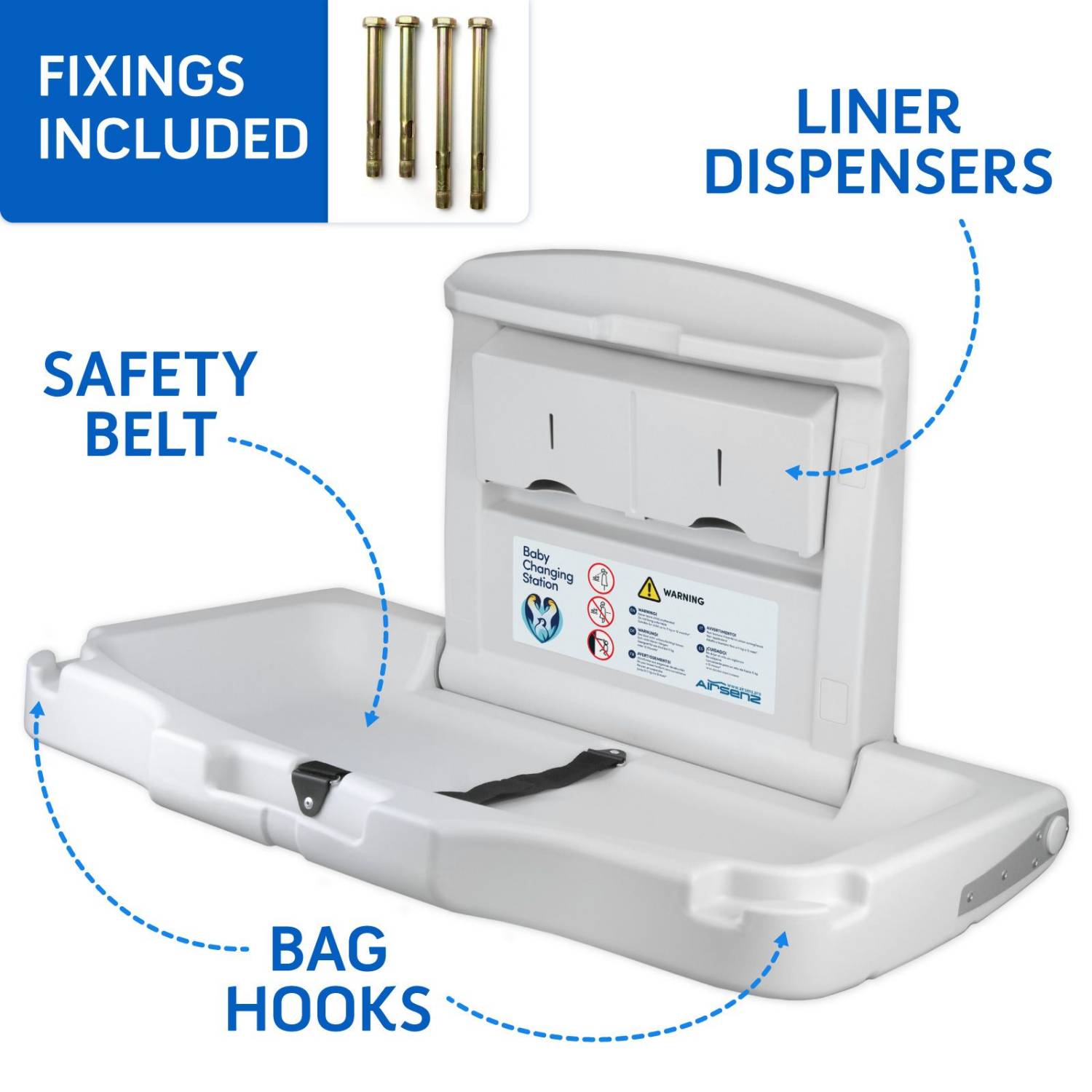

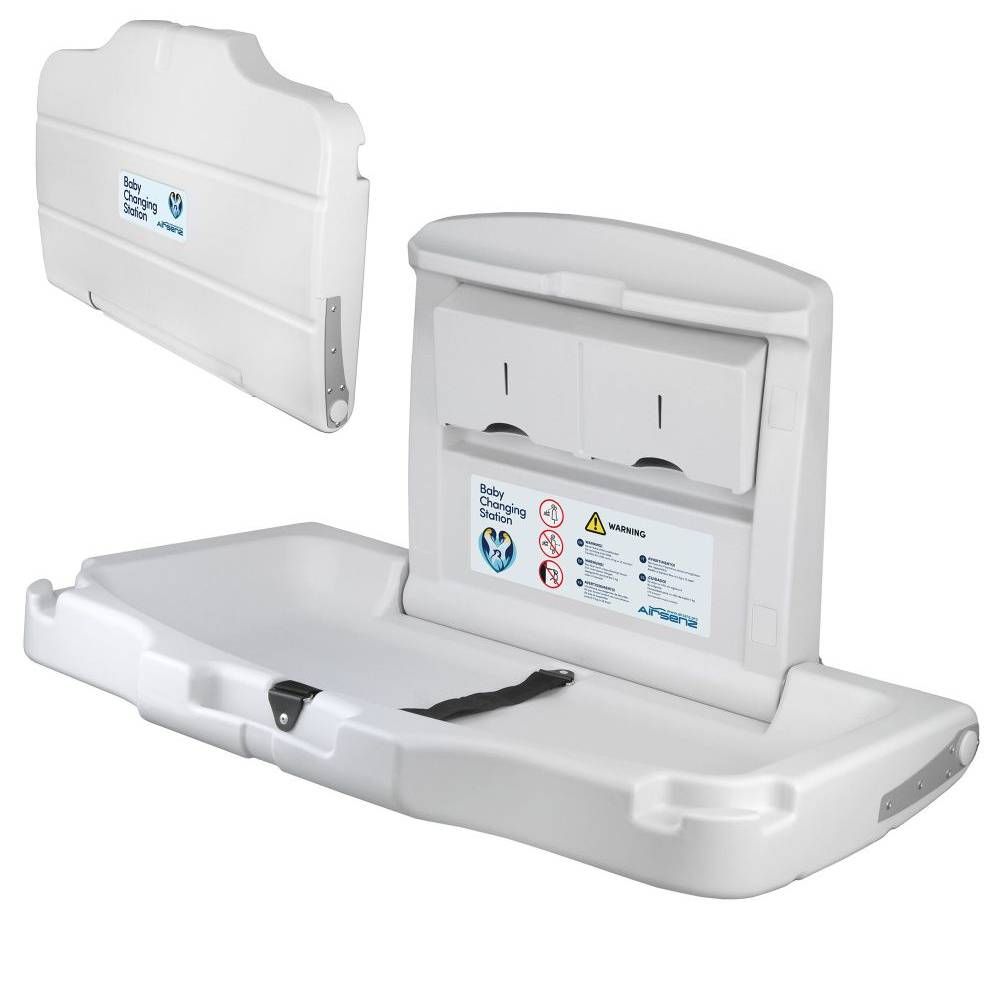

Reliable, strong, and hygienic baby changing table for the safe support of infants and babies.


Features and benefits:


  • Safe: equipped with a deep concave shape and an adjustable safety strap for secure infant support.
  • Hygienic: baby changer made of anti-microbial HDPE material that is easy to clean and resists odours and bacterial growth.
  • Convenient: features convenient bag hooks on both ends, and a built-in liner dispenser.
  • Easy to use: easy to open and close, as well as simple to clean.
  • Space saving design: slim, horizontal, space saving baby changer design.
  • Maximum capacity: 15 kg (label reads 11kg as per the EU 12221 standard, but unit is actually tested to 45kg and has USA testing documentation available to support a maximum load of 20kg)
  • Approvals: EN 12221-2:2008 + A1:2013.


Guidance for installers: this baby changing unit is wall mounted, with fixings all included.

General information

Color

White

Cream

Finish

Anti-microbial

Material

High density polyethylene (HDPE)

Shape

Rectangle

Length

585 mm

Width

855 mm

Height

585 mm

Warranty description

One year

Uniclass

Pr_40_20_76_06 Baby changing unitsPrimary

CAWS

N13/494 Baby changing units

Product range

Washroom Products
All Products

Specification data - Baby changing units

Form

Wall-mounted, fold down.

Material

HDPE.

Finish and colour

White.

Size (nominal)

585 x 855 mm.

Integral accessories

Adjustable restrain belt, integral liner dispenser.

Load

Maximum load: 15 kg.

Guidance for specification option:

Label reads 11 kg as per the EU 12221 standard but unit is actually tested to 45 kg and has USA testing documentation available to support a maximum load of 20 kg.


Warning: To ensure that the unit supports the intended loads, baby changing stations must be properly installed according to the manufacturer’s instructions.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

High density polyethylene (HDPE)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Horizontal Wall Mounted Baby Changing Table Leaflet (WR-J8001)

Horizontal Wall Mounted Baby Changing Table Leaflet (WR-J8001)
