Horizon™ Rectangle

Name: Horizon™ Rectangle
Brand: Autex Acoustics Ltd
SKU: FpE1YqTdPz5uhMbzVi9jS

Verified by manufacturer 3 months ago

Autex Acoustics Ltd

Third party certifications:

Declare
Certificate type
Green Tag
Certificate type
HPDC Certification
Certificate type

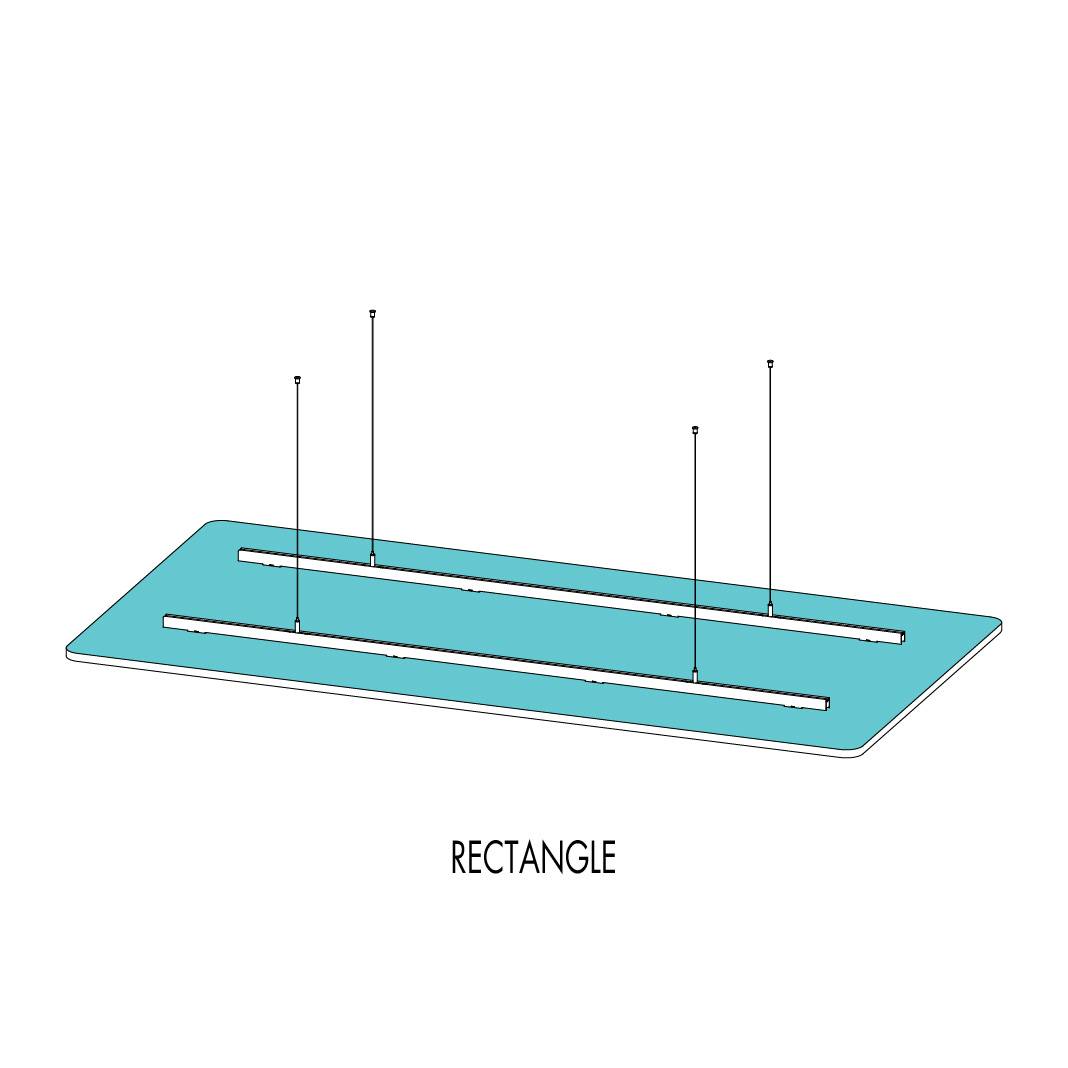

Suspended geometric shapes

Jump to:

BOS

+44 (0)1422 418 899 Website

Application

Wall and Ceiling

Description

Horizon™ panels are clippable shapes used to create unique feature walls and suspended ceiling designs. They are easy to install and are well complemented when raised off the wall, or suspended from different heights—creating a floating effect.

Features and benefits:

Maintains high ceilings
Sophisticated colour palette
Solid colour and smooth finish, with no edging or capping required
Hides undesirable surfaces
Carbon neutral

General information

Color	Beige Black Blue Cream Gold Green Grey Ivory White Yellow Pink Purple Brown Orange Turquoise Show more Manufacturer guidance Available in a range of colours.
Finish	Smooth
Material	Polyester fibre (PET) Guidance for specification option: 100% polyester fibre (PET).
Shape	Rectangle
Length	2400 mm
Width	1200 mm

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary Ss_30_25_22_01 Acoustic baffle suspended ceiling systems
CAWS	K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings

Specification data - Sound attenuator infill units

Form	Panel.
Rigidity	Semi rigid.
Application	Ceiling mounting.
Material	Polyester fibre.
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Guidance for specification option: 2.5 metric Sabins per unit (Direct fixed on clips), 3.0 metric Sabins per unit (Suspended 200 mm), 3.1 metric Sabins per unit (Suspended 400 mm), 3.4 metric Sabins per unit (Suspended 800 mm).
VOC emissions	0.092 mg/m³. Guidance for specification option: CDPH Standard Method v1.2-2017: after 14 days, office room scenario.
Dimensions	-
Size (length x width)	2400 x 1200 mm.
Thickness (overall)	24 mm.
Profile	Geometric profile.
Edges	Square.
Surface pattern	Solid.
Finish	Smooth.
Colour	Acros. Bosco. Empire. Falling Water. Flatiron. Galaxy. Ironbank. Lotus. Opera. Pavilion. Petronas. Pinnacle. Rosada. Savoye. Senado. Treehouse. Zenith.

Moisture Absorption (ASTM D570)	0.4% by weight (ASTM C1104: 49°C at 95%RH, 4 days).
Weight	3600 g/m².

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Polyester fibre (PET) Guidance for specification option: 100% polyester fibre (PET).
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.89 kg CO₂ eq/kg Self declared
Recyclability	yes Guidance for specification option: Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS).
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 % Guidance for specification option: Minimum 60% post-consumer recycled PET material.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

Declare

Declare - APA, ASL, Accent, Cube™, Frontier™, Grid Ceiling Tiles, Horizon™, Press Panels, Quietspace® Panel

Green Tag

Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, and Vicinity™

Green Tag

Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®
