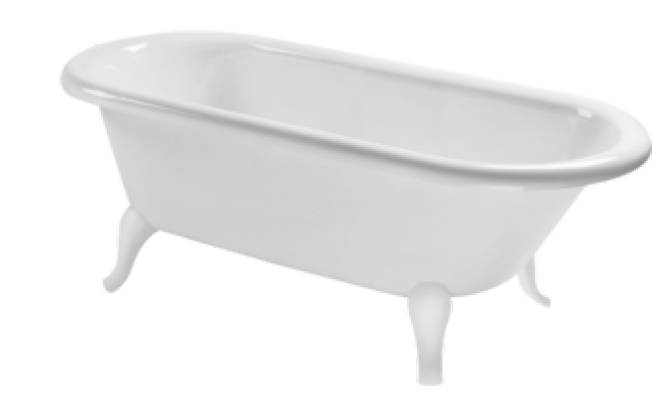

Hommage Free-standing Bath UBQ180HOM7W0V
Verified by manufacturer 8 months ago
Free standing bath.
Application
Domestic bathrooms.
Description
Hommage free-standing bath.
Features and benefits:
- Duo.Outside surface in satin finish.
- Incl. white feet.
General information
Color | White Guidance for specification option: White Alpin. |
Finish | Satin |
Material | Guidance for specification option: Quaryl® bath, wood feet. |
Shape | Other Guidance for specification option: Free standing bath. |
Width | 1771 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Free-standing. |
Materials | Quaryl®. |
Colour | White Alpin. |
Size | 1771 x 771 x 450 mm. |
Volume to overflow (maximum) | 160 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole.Guidance for specification option: Central outlet. |
Waste | Bottom waste outlet. |
Support frame | Four white wooden feet. |
Integral accessories | Not required.Multifunction cushion - U906100PA.Guidance for specification option: 80 x 250 x 30 mm. |
Weight | 49.40 kg. |
Capacity | Two people. |
Anti-slip finish | Anti-slip class A. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 Revit | - | 1 |
 3Ds Max | - | 1 |
 SketchUp | - | 1 |
