Astor OT200 Ceiling Hoist

Verified by manufacturer 3 months ago

Astor Bannerman Third party certifications:
  • ISO 13485:2016 Medical devices (Quality management systems)

    ISO 13485:2016 Medical devices (Quality management systems)

    Certificate type

Astor OT200 - Ceiling track hoist for Changing Places Toilets

Jump to:
+44 (0)1242820820 Website

Application

Suitable for Changing Places, schools, long term care and home care.

Description

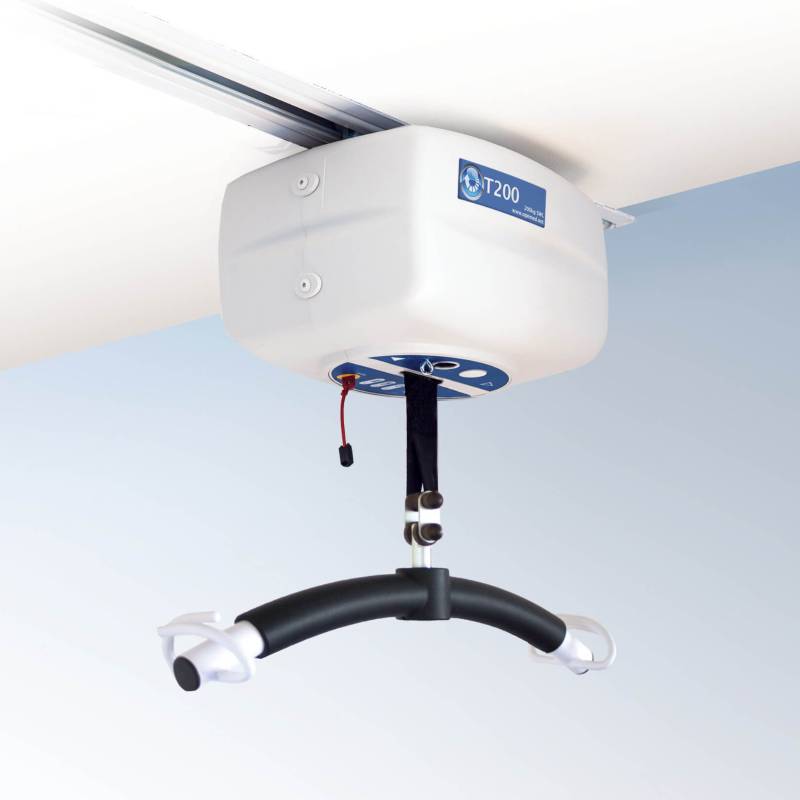

The Astor OT200 Ceiling Mounted H System Hoist is a small overhead ceiling track hoist designed for Changing Places Toilets, Nursing Homes, Schools and Homes. Helping to reduce carer back strain, this ceiling hoist makes patient transfer easier from wheelchair to bath and changing area, or even room to room, whilst preserving the dignity of the user.


The hoist can remain charged for more than 150 lifts and includes a no-tools emergency lowering system. The Astor OT200 Ceiling Mounted H System Hoist is fitted to an H frame (XY) ceiling track for full room coverage, and the compact design and flexible fitting options mean this hoist can also be installed on the wall or on a free-standing gantry. It is operated at the touch of a button to raise and lower the client. The motor can then transport manually (2 function) or via the handset (4 function).


Features and benefits:

  • Auto emergency stop and lowering system.
  • Maximum working load 200 kg (31½ st) or 250 kg (39¼ st).
  • Tape lifting range: 100–2500 mm (2400 mm).
  • No lights at night.
  • Handset operation.
  • Can be fitted to an H frame track.
  • Quick fit rail system.
  • Two point, four hook spreader bar for loop slings.
  • Two-year warranty (terms and conditions apply).

General information

Color

White

Finish

Acrylic

Material

Plastic

Shape

Other

Length

565 mm

Width

240 mm

Warranty description

Two year

Guidance for specification option:

Terms and conditions apply.

Uniclass

Pr_65_80_47_04 Assisted transfer hoistsPrimary

CAWS

N13/490 Hoist systems

Specification data - Assisted transfer hoists

Form

Ceiling-mounted track hoist.

Cradle or sling

-

Hoist fittings for slings

Two point, four hook spreader bar for loop slings.

Safe working load (maximum)

200 kg.

250 kg.

Integral accessories

Handset.

Electrical power

Mains.

Accessories

None.

2 (manual) function.

4 (powered) function.

Portable and removable hoist.

Turntables.

Show more

Ceiling track

H (XY) track.

Ingress protection (IP) rating

IP54.

Voltage

24 V d.c.

Sustainability data

Contains Red List materials

No

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

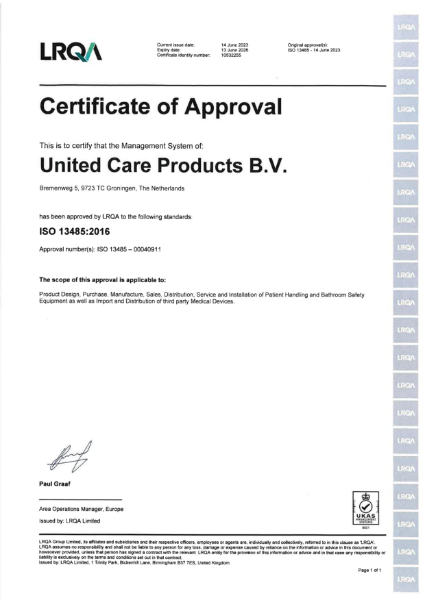

ISO 13485:2016 Medical devices (Quality management systems)

ISO 13485:2016 Medical devices (Quality management systems)

ISO 13485 United Care
