Hitch™ - Cladding attachment system

Verified by manufacturer 3 months ago

Longboard Products Third party certifications:
  • EPD

    EPD

    Certificate type

  • Declare

    Declare

    Certificate type

  • UKAS

    UKAS

    Certificate type

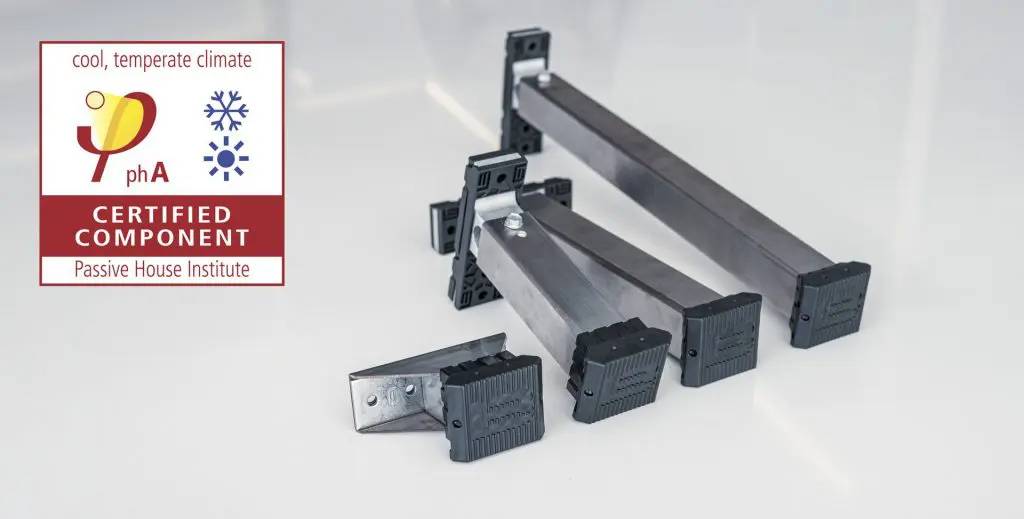

Our Hitch™ cladding attachment system is a patented modular building product for rain screen and exterior wall assemblies. Passive House Institute certified component.

Jump to:
BIM object icon
+44 2039911138 Website

Application

Our Hitch™ cladding attachment system is a patented modular building product for rain screen and exterior wall assemblies offering a thermally broken and intermittent structural solution. Hitch™ is unparalleled when it comes to structural capacity, flexibility, and thermal performance.

Description

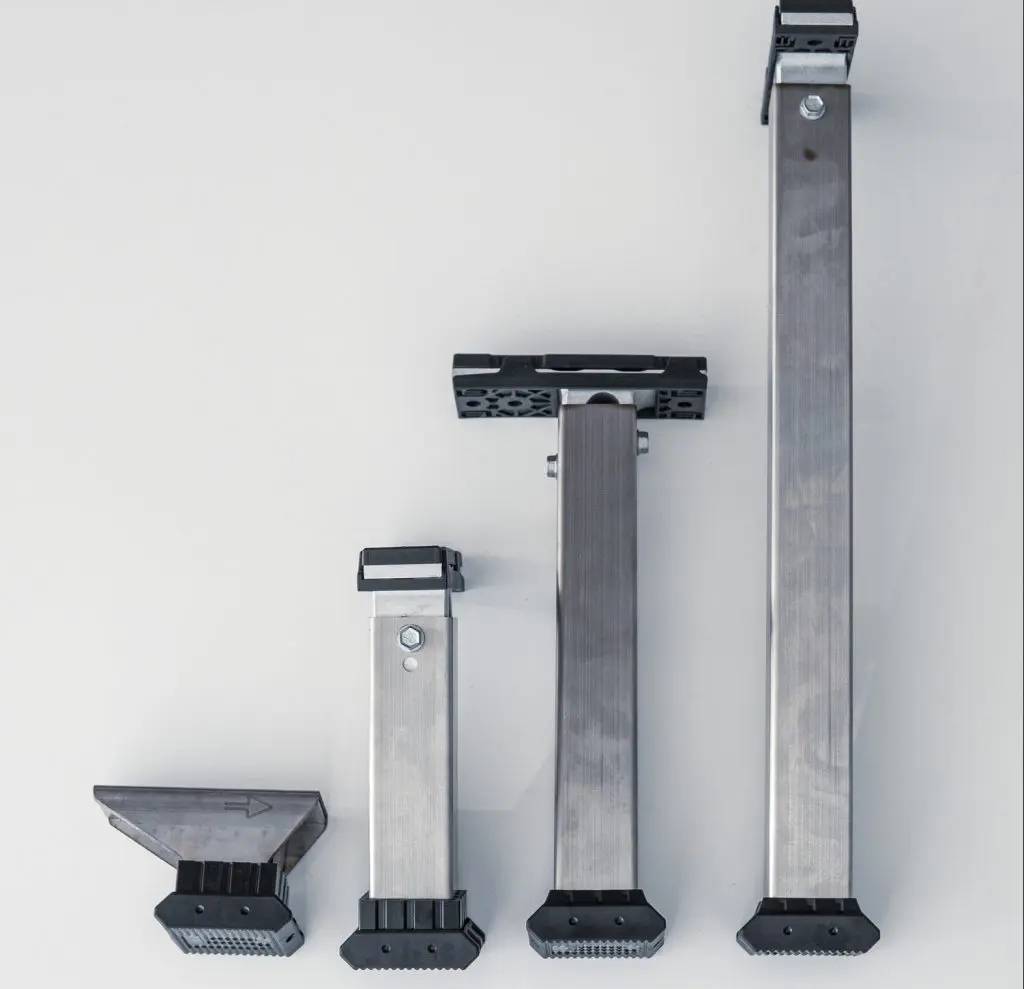

The Hitch™ Cladding Attachment System is a patented modular system that offers a range of thermally broken and intermittent structural attachment solutions for rain screen cladding systems onto various types of exterior wall assemblies (Patent Pending – U.S. 17/463,442; U.S. 29/806,153; U.S. 29/806,151). The Hitch™ Cladding Attachment System is unparalleled when it comes to structural capacity, flexibility and thermal performance.


The Hitch™ cladding attachment system can accommodate continuous exterior insulation thickness between 1" (25.4mm) and 16" (406.4mm) which makes it suitable for use in all Passive House and ASHRAE climate zones.

General information

Color

Other

Finish

Metallic

Material

Aluminium

Shape

Rectangle

Length

25.4 mm

38.1 mm

50.8 mm

63.5 mm

76.2 mm

Show more

Width

50.8 mm

Height

104.9 mm

Warranty description

15 year

Sustainability data

Contains Red List materials

No

Country of material origin

Canada

Country of product manufacture

Canada

Recyclability

100%

EPD

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

Third party certifications

EPD

EPD

Environmental Product Declaration

Declare

Declare

Longboard Declare Label

UKAS

UKAS

UK Fire Testing

Literature

ICC-ES Evaluation Report Siding

ICC-ES Evaluation Report Siding

Longboard 15 year Warranty

Longboard 15 year Warranty

Hitch™  Install guide

Hitch™ Install guide

Hitch Submittal Package

Hitch Submittal Package

Longboard LEED v4.1 - Exterior Systems

Longboard LEED v4.1 - Exterior Systems
