HiSec 9 Lite Full Height Security Airlock Portal

HiSec 9 Lite Full Height Security Airlock Portal

Gunnebo UK Ltd

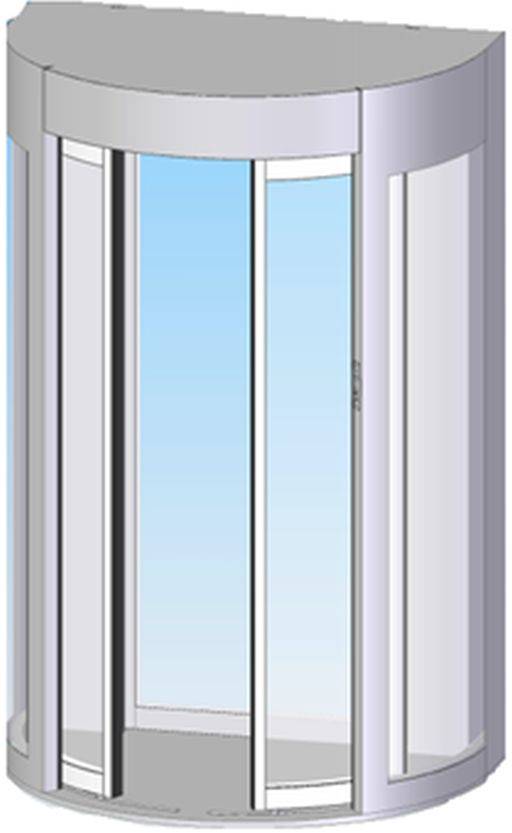

Security Booth with 1500 mm semi-diameter base, and one set of motorised leaves. Available with selection of internal hights finishing and options. Metal Detector version available.

Jump to:
+44 (0)1902 455111 www.gunnebo.co.uk

Application

  • Head offices.
  • Banking.
  • Data centres, telecommunications and information technology.
  • Research and development.
  • Government.
  • Military and police.
  • Security publishing.

Description

The HiSec 9 is a motorized security booth for internal or semi-external installation. It incorporates a transparent design, offering a choice of security levels which prevent tailgating and piggybacking.

The doors are always locked shut in the rest position. An authorized signal opens the first door, allowing the user to step into the booth where a presence is detected. When the first door is closed, the second door opens, thus allowing the user to pass through. The second door shuts after the unit has been vacated, which also resets the system.


The HiSec detects if more than one person is present inside the booth with an electronic ultrasound sensor. The booth is set with a predetermined but adjustable anti-hostage threshold. As an authorized user stands in the booth, it confirms acceptance of the occupant and authorises the door to close.

Should the measured volume presence not be authorized (when more than one person is present or there is non-permitted additional baggage), a vocal synthesizer will ask the occupants to leave the booth.


An additional left object sensor is able to detect the presence of an object on the floor (50 x 50 x 30 mm). It is equipped with an electronic safety feature which reverses the motor to re-open the door upon detection of an obstruction. The door fully opens to allow the obstruction to be removed, after which it attempts to re-close.


Features and benefits:

  • Premium high security solution.
  • Elegant design.
  • Reliable performance.
  • CE marked.
  • Base only 20 mm.


General information

Color

Grey

RAL 9006 and RAL 7040.

Clear

Finish

Powder coated

Material

Steel

Laminate

High strength laminate.

Glass

Laminated glass.

PET

Polyethylene terephthalate.

Shape

Half-cylinder

Size

1000 x 1500 x 2320 mm

Uniclass 2015

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

CAWS

L20/490 Automatic doors

L20/495 Automatic revolving doors

Specification data - Automatic revolving doorsets Enhanced data

Third party accreditation

CE marked.

Configuration

Motorized full height security booth.

Materials and finishes

-

Doors

Printed frame in polyethylene terephthalate, RAL 7040.

Sliding door: to be used in conjunction with existing door.

Drum walls

Painted steel section powder coated finish, RAL 9006.

Glazing

-

Type

Standard: 11–12 mm 2-ply laminate safety glass.

BR2/S: 20–21 mm thick 2-ply laminated safety glass.

BR3/S: 26–27 mm 3-ply laminated safety glass.

BR4/S: 32–33 mm thick 3-ply laminated safety glass.

Activation and control system

-

Type

Ultrasound system.

The HiSec booth is equipped with an ultrasound system which determines if more than one person is present inside the booth.

Safety devices

Safety torque sensing.

Doors are always locked in rest position, anti-tailgating system, anti-hostage electronic ultrasound sensor to determine if more than one person is present in the booth, additional left object sensor.

Locking mechanism

Electro-mechanical.

Accessories

None.

Demountable version kit.

Fail-safe opening.

Glass security upgrade.

Available upon request; consult manufacturer for details.

Horizontal transportation kit.

Left object sensor.

Metal detector.

Alterative finishes.

Execution

Installing hardware..

Product Reference

HiSec Lite 9-L Full Height Security Booth with 900 mm Walkway

HiSec Lite 9-LM Full Height Security Booth with 900 mm Walkway

Foundation layout

Concrete to 30 N/mm², 1650 x 1150 x 150 mm.

Minimum.

Lighting

Low-voltage light.

Internal light on ceiling.

Passage rate

Four passages per minute.

Proximity 'hands free' access reader.

Operating temperature range

-10 to +45°C.

90% RH without condensation.

Weight

450–500 kg.

NominalFrequency

50–60 Hz.

Voltage

115–230 V a.c.

Ingress protection (IP) rating

IP33.

MeanTimeBetweenFailure

1.5 million cycles.

Ceiling

High pressure laminate (HPL), finished pearl grey.

Base plate

High-strength laminate, finished plumb grey.

Digital objects

Platform Compatible Version Certified to
IFC
-

3

2.1
Revit
-

3

2.1
Download now from NBS National BIM Library
