Verified by manufacturer 4 months ago

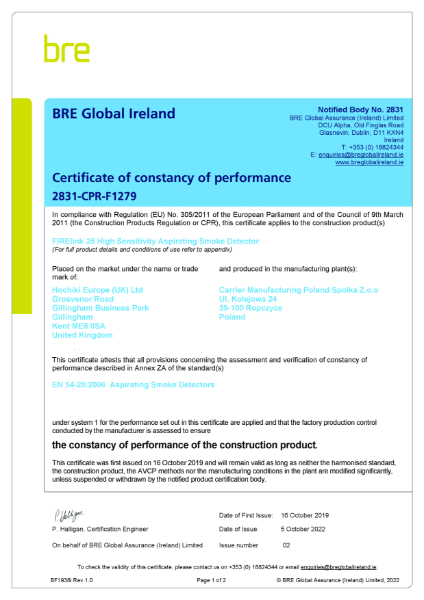

Certificate of constancy of performance
Certificate type

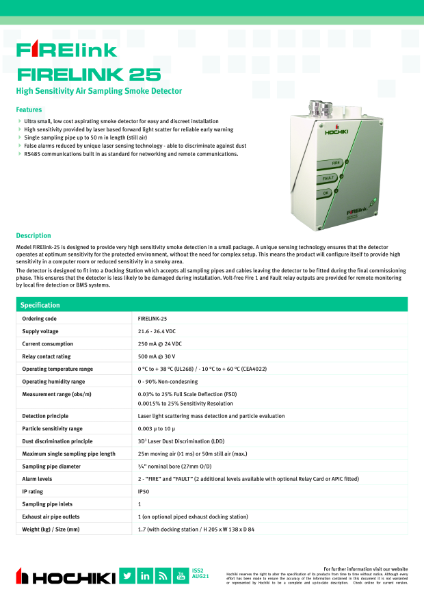

Aspirating smoke detector with single pipe and docking station.
Smoke detection.
Model FIRElink-25 is designed to provide very high sensitivity smoke detection in a small package; unique sensing technology ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the product will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.
The detector is designed to fit into a Docking Station which accepts all sampling pipes and cables leaving the detector to be fitted during the final commissioning phase; this ensures that the detector is less likely to be damaged during installation.
Volt-free Fire 1 and Fault relay outputs are provided for remote monitoring by local fire detection or BMS systems.
Features and benefits:
Color | Silver |
Finish | Powder-coated |
Material | Metal |
Shape | Rectangle |
Length | 84 mm Guidance for specification option: Depth |
Width | 138 mm |
Height | 205 mm |
Warranty description | Three year |
Uniclass | |
CAWS | W90/328 Point smoke detectors |
SKU Code | FIRELINK-25 / 1610050-00 |
Classification data | |
Sampling pipe | |
Arrangement | ¾” nominal bore (27 mm O/D). |
Length (maximum) | 25 m moving air (>1 ms) or 5 0m still air (maximum). |
Air inlet holes (maximum) | One. |
Power supply | 21.6–26.4 V d.c. |
Current | 250 mA at 24 V d.c. Guidance for specification option: Relay contact rating 500 mA at 30 V. |
Accessories | FL-PIPE Pipe 0.75 Diameter Nom Bore 3 m Length Red. FL-SR Socket Red. FL-90BR 90 Degree Bend Red. FL-45ER 45 DegreeElbowRed. FL-ECR End Cap Red. FL-SUR Socket Union Red. FL-TPR ‘T’ Piece Red. FL-FSR 0.75 to 25 mmFemale Socket Red. FL-AD2R 25mm Female to 0.75 Male Adapter Red. FL-AD1R 0.75 Female to 25 mm Male Adapter Red. FL-PCR Pipe Clip Red. FL-SPA1 Standard Sampling Point Assembly. FL-SPA2 Detachable Sampling Point Assembly. FL-PSPA Patress Sampling Point Assembly. FL-BSPA Bulkhead Sampling Point Assembly 20 mm. FL90PSP 90 Degree Patress Sampling Point. FL-SG Socket Grey. FL-ECG End Cap Grey. FL-ISPAG Inline Sample Point Adapter 25 mm Grey. FL-SC Solvent Cementfor FIRElink Pipe. FL-PC Pipe Cleaner for FIRElink. FL-WL Sampling Hole Warning Labels. |
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Material | Metal |
Manufacturing plant location | |
Expected Life | Ten year |
Platform | Compatible | Version |
---|---|---|
