HiDECK - High Conductivity Structural Floorboard

Name: HiDECK - High Conductivity Structural Floorboard
Brand: Cellecta Ltd
SKU: kbbdnXwFop3XYbSKTPrq9g

Verified by manufacturer 12 days ago

HiDECK Structural 25

Cellecta Ltd

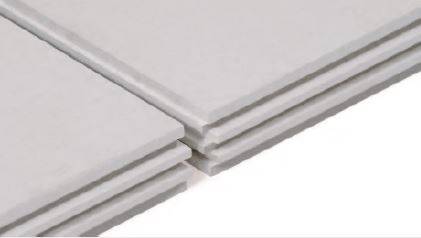

Highly conductive structural floorboard.

Jump to:

+44 (0)1634 296 677 Website

Application

For acoustic batten & cradle and batten applications.

Description

Highly conductive structural floorboard. The board's rapid heat transfer characteristics enables a underfloor heating system to operate more efficiently, providing a long term saving in running costs.

Features and benefits:

Good acoustic and fire performance.
Robust detail proprietary floorboard for FFT1, 2 & 3.
Low thermal resistance - good for UFH applications.
Suitable for concrete, steel and timber floors.
Directly accept all types of floor coverings including tiles.

General information

Color	Grey
Finish	Smooth
Material	Gypsum Guidance for specification option: High-density gypsum.
Shape	Rectangle
Length	1200 mm
Width	600 mm
Height	25 mm 28 mm 30 mm

Uniclass	Pr_25_71_35_30 Fibre-reinforced gypsum floor boardsPrimary
CAWS	K20/150 Battened timber board floating floor K11/275 Acoustic separating floor system K20/20 Battened timber board floating floor K11/115 Battened plywood floating floor K11/60 Board K11/295 Floating floor system

Specification data - Fibre-reinforced gypsum floor boards

Thickness	25 mm.

Thermal resistance	0.0625 m²K/W.
Spacing	400 mm centres (maximum). Guidance for specification option: 45 mm wide.
Weight	31.25 kg/m²; 22.50 kg/board.
Flanking strip	YELOfon ES5/120.
Fire classification	To BS EN 13501-1, A1.
Third party accreditation	NHBC, BM TRADA certified, LABC warranty, Premier guarantee. Guidance for specification option: <5 GWP, Zero ODP.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	United Kingdom
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
