Verified by manufacturer 2 months ago
U-value 1.5 W/m²K (standard)

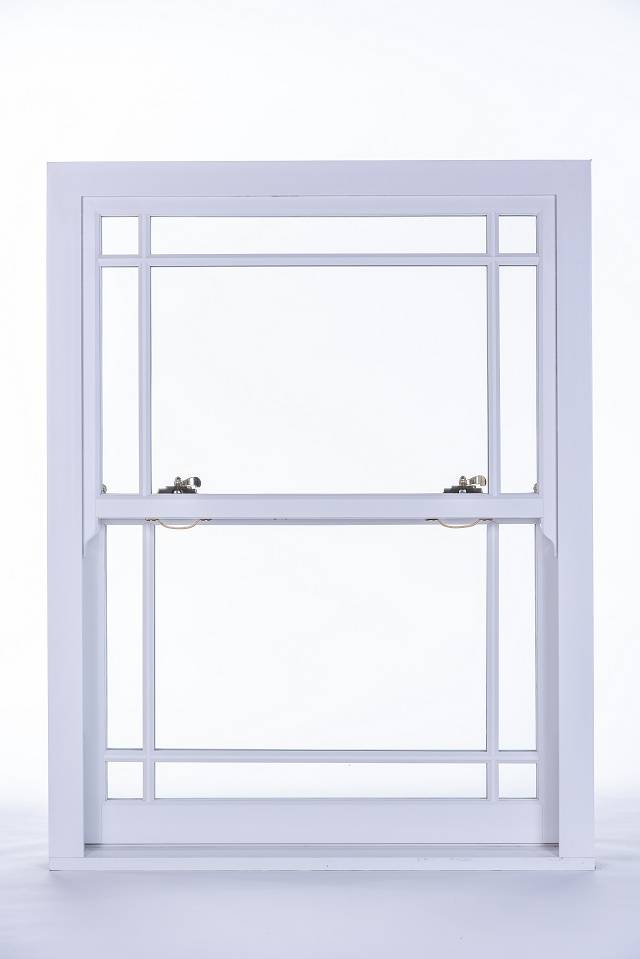

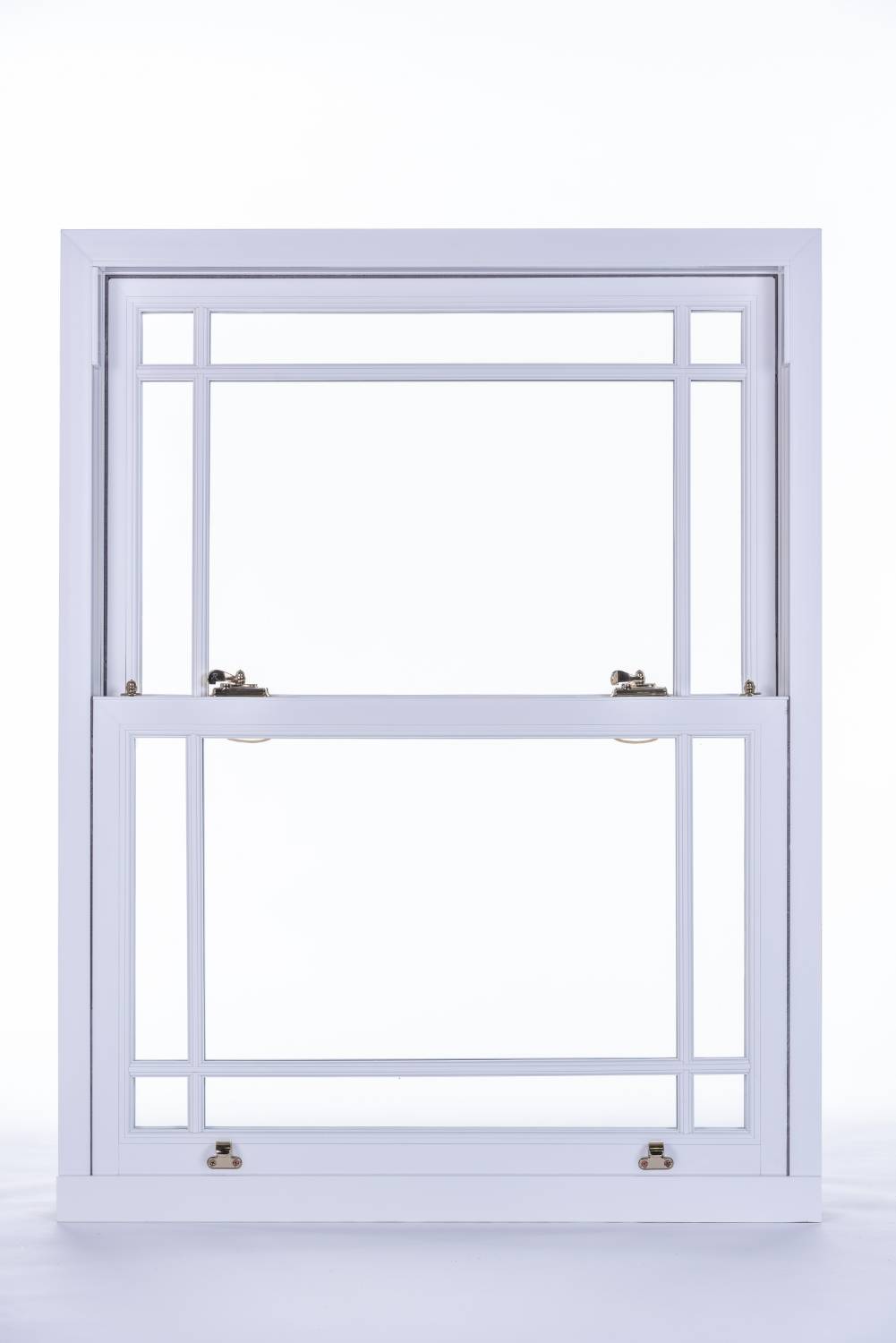

Heritage PVC-U sash window.
Designed for heritage and conservation projects.
A polyvinyl chloride (PVC-U) heritage sash window. Designed with all the traditional detailing found in period and Victorian windows, Heritage Rose sash windows are highly customizable and supplied in a range of colours to suit individual needs. Several decorative features such as authentic astragal bars and run-through sash horns ensure complete authenticity and make this window virtually indistinguishable from a timber original.
Whilst slim sight lines create an eye-catching classic impression, the highly engineered Heritage Rose sash window also scores top marks for its security, acoustic and energy efficiency credentials. And homeowners will love the fact that their new windows are easy to operate and extremely low-maintenance.
Features and benefits:
Optional features:
U-value options:
Color | White Cream Grey Black Other Manufacturer guidanceWhite, cream, Irish oak, Golden oak, Rosewood. Chartwell green, Anthracite. Painted finish (any RAL colour on smooth or woodgrain). |
Finish | Smooth Woodgrain |
Material | Glass PVC-U Aluminium |
Shape | Rectangle Manufacturer guidanceSash window. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Standard | CE marked BS EN 14351-1:2006+A1:2010. |
Third-party certification | BlueSky Acoustic, PAS 24:2016, BS 6375.Guidance for specification option: To Secured by Design standard. |
Dimensions and configurations | Guidance for specification option: Size (w x h): 320-1500 x 700-3000 mm. Frame depth: 137 mm, Midrail: 45 mm, Deep bottom rail: 81 mm, Cill depths: 149 mm and 225 mm. |
Product performance | |
Fire performance | |
Fire egress | Option. |
Weather performance | |
UK exposure category | 1600 Pa. |
Air permeability | Class 3. |
Watertightness | Class 7A. |
Resistance to wind load | Class A5. |
Safety | |
Security level | To PAS 24:2016.To Secured by Design standard and PAS 24:2016. |
Environmental | |
Background ventilation | Trickle vent option. |
Thermal | |

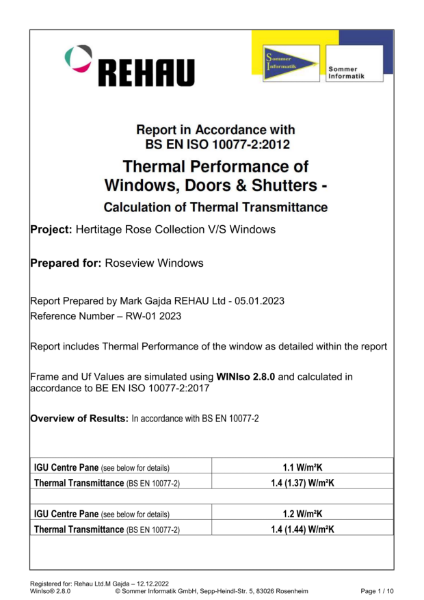

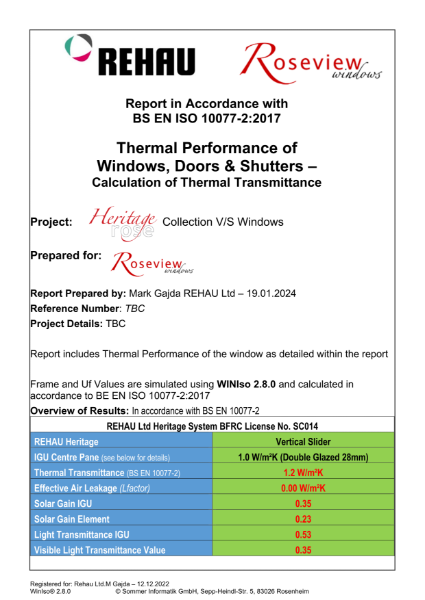

Whole window U-value | 1.5 W/m²K. |

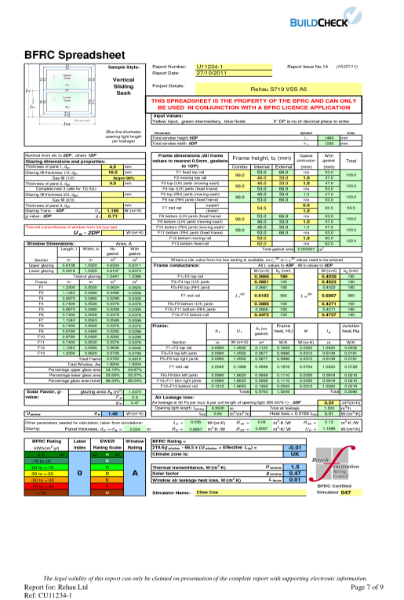

British Fenestration Rating Council Window Energy Rating | A. |
Frame | |
Profile | Rehau slim profile with putty-line bevelled detail. |
Reinforcement | Steel/ aluminium (sash only). |
Colour and texture | Smooth.Woodgrain.White.Crystal white.Cream.Cream woodgrain on white woodgrain.Agate woodgrain on white woodgrain.Pebble woodgrain on white woodgrain.Quartz woodgrain on white woodgrain.Anthracite woodgrain on white woodgrain.Jet black woodgrain on white woodgrain.Any RAL colour.Guidance for specification option: Insert requirements. |
Ventilator | Not required.Eclipse trickle vent (over frame).Concealed overhead trickle vent.Through frame trickle vent.Through sash trickle vent.Guidance for specification option: Intermediate sash required. |
Glazing or infill | |
Requirements | 28 mm integrated glazing unit (IGU).Guidance for specification option: Standard glazing. |
Hardware | Zinc Hardex coated. |
Operation | |
Type | Manual. |
Fixing features | Direct fix.Fixing brackets. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass PVC-U Aluminium |
