Heritage 2800 Tilt & Turn - TT5 Opener/Fixed/Opener

Verified by manufacturer over a year ago

Deceuninck Ltd

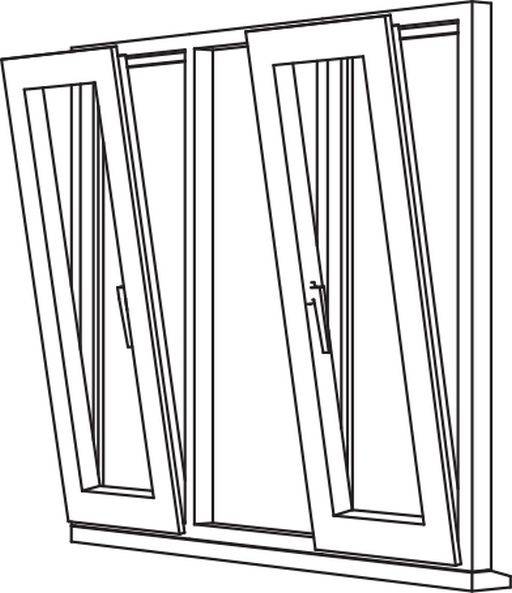

Opening light next to a fixed light next to an opening light style window with a decorative design frame.

Jump to:
BOS
 +44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U tilt & turn windows, available in range of styles in three standard finishes.


Years of research and development has resulted in a technically advanced system ideal for commercial projects. With two sash sizes (85 mm & 110 mm), two frame sizes (55 mm & 70 mm), and a slim (70 mm) intermediate (85 mm) or large (110 mm) transom/mullion option.


Features and benefits:

  • The Heritage 2800 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • The system is available in 26 laminate colourways from stock providing the ultimate convenience regarding supply.
  • BSI Kitemark.
  • Environmental product declaration: EPD-QKE-20150313-IBG1-EN.

General information

Shape

Rectangle

Color

White

Guidance for specification option:

RAL 9016 (standard).

Other

Guidance for specification option:

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

Warranty description

Guidance for specification option:

Manufacturer warranty.

Size

Guidance for specification option:

As drawing.

  • Single tilt and turn 1500 mm wide x 1500 mm high.
  • Single fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
  • Multilight windows with reinforced transom or mullion: 2400 mm wide x 2400 mm high (maximum perimeter: 7600 mm; maximum transom or mullion span: 1400 mm).


Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Tilt & Turn Window / Decorative (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Standard

To BS 7412.

Third-party certification

BSI Kitemark.

Dimensions and configurations

Dual tilt and turn opening lights and fixed centre light.

Product performance

-

Fire performance

-

Fire egress

Required.

Guidance for specification option:

Emergency egress is an inherent characteristic of tilt & turn style hardware.

Weather performance

-

UK exposure category

To BS 6375, Class A5 (2000 Pa).

Air permeability

To BS 6375, Class 4 (600 Pa).

Watertightness

To BS 6375, Class 8A (450 Pa).

Resistance to wind load

To BS 6375, Class A5 (2000 Pa).

Durability

-

Operation and strength characteristics

Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3.

Loadbearing capacity of safety devices

Maco Multi-Trend (tilt mode, 350 N).

Maco Multi-Matic (tilt mode, 350 N).

Segenia Favorit (tilt mode, 350 N).

Roto Designo (tilt mode, 350 N).

Safety

-

Security level

To PAS 24.

Environmental

-

Background ventilation

Not required.

Proprietary ventilation device.

Acoustic performance rating

32—43 dB.

Thermal

-

Whole window U-value

Guidance for specification option:

  • Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Window energy ratings C to A+ can be achieved.

British Fenestration Rating Council Window Energy Rating

A+ to C.

Frame

-

Profile

To BS EN 12608.

Guidance for specification option:

Hollow PVC-U decorative profile manufactured in accordance with BS EN 12608.

Reinforcement

Galvanized steel.

Colour and texture

White - RAL 9016.

Guidance for specification option:

Standard.

Laminated foil.

Decoroc colour (RAL).

Ventilator

Proprietary ventilation device.

Glazing or infill

-

Requirements

Double glazed.

Single glazed.

Triple glazed.

Hardware

Guidance for specification option:

  • System accepts all popular hardware, including concealed hinge types.
  • Full depth euro-groove.
  • Secure location of hardware.

Operation

-

Type

Manual.

Fixing features

Through frame fasteners.

Fixing lug.

Size

As drawing.

Guidance for specification option:

  • Single tilt and turn 1500 mm wide x 1500 mm high.
  • Single fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
  • Multilight windows with reinforced transom or mullion: 2400 mm wide x 2400 mm high (maximum perimeter: 7600 mm; maximum transom or mullion span: 1400 mm).

Outer frame size

55 mm.

70 mm.

85 mm.

Manufacturer guidance

Outer frame size.

Transoms and mullions size

70 mm.

85 mm.

110 mm.

Joints

Cruciform joints.

Mechanically joined.

'T' joints.

Welded.

Sash

Standard.

Heavy duty.

Couplings

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Manufacturer guidance

Window frame couplings.

Extensions

Not required.

2455 Head section.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3300 Add-on.

Guidance for specification option:

Allows additional clearance for hinges.

3301 Add-on.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3302 Add-on.

Guidance for specification option:

Frame build-up for conservatories.

Show more

Manufacturer guidance

Window frame extensions.

Architraves

Not required.

1044 D-mould.

Guidance for specification option:

30 mm wide.

1087 Architrave.

Guidance for specification option:

40 mm wide.

1178 Quadrant.

Guidance for specification option:

19 mm.

3341 Add-on.

Guidance for specification option:

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3196 Bay post.

Guidance for specification option:

Fixed 135° angle.

3313/3327 Slimline bay pole and adaptor.

Guidance for specification option:

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Guidance for specification option:

Angles from 90°-270°.

6920 90° Square corner post.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

Guidance for specification option:

150 mm.

3339 Projecting sill.

Guidance for specification option:

180 mm.

3258 End cap.

Guidance for specification option:

For 3338 Projecting sill.

3259 End cap.

Guidance for specification option:

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

Guidance for specification option:

95 mm.

3257 End cap.

Guidance for specification option:

For 3337 Stub-sill.

Options

Not required.

Georgian bar.

Leaded lights.

Manufacturer guidance

Glazing options.

Ironmongery

As section P21.

Concealed hinges.

Full perimeter locking.

Bead

Internal.

Type

Decorative 28 mm.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Other styles available for other glazing thicknesses.

Manufacturer guidance

Beading type.

Thickness

3—40 mm.

Hinges

Maco Multi-Trend.

Maco Multi-Matic.

Segenia Favorit.

Roto Designo.

Manufacturer guidance

Hardware hinge options.

Seal

Weatherseal.

Guidance for specification option:

High-performance integral multifunctional seal/ gasket.

ThermalTransmittance

0.97.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC
 -

2

Literature

10. Specification Guide - Heritage 2800 decorative series windows & doors
