BSI Kitemark
Certificate type

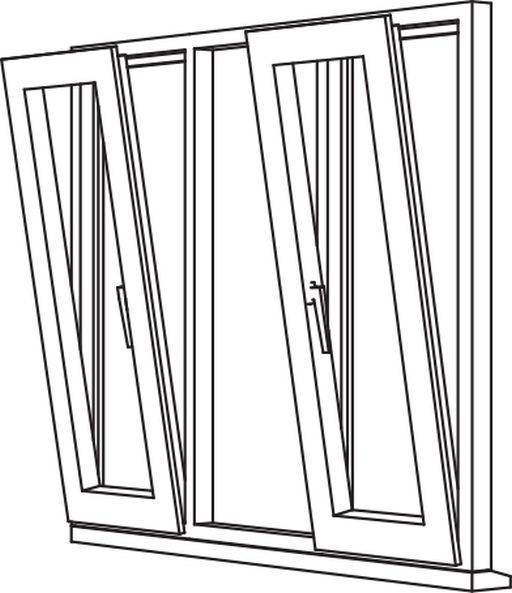

Opening light next to a fixed light next to an opening light style window with a decorative design frame.
A range of PVC-U tilt and turn, and fixed light windows, available in a range of styles and framing options in three standard finishes.
Material | PVC-U |
WarrantyDescription | Manufacturer warranty |
Uniclass 2015 | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product Reference | Heritage 2800 Windows - Tilt and Turn |
Window | - |
Size | ___ x ___ mmInsert requirements. As drawing ___ |
Style | Tilt before turnTurn before tiltFixed lightMultilight |
Outer frame size | 557085 |
Transoms and mullions | - |
Transoms and mullions size | 7085110 |
Joints | Cruciform jointsMechanically joined'T' jointsWelded |
Sash | StandardHeavy duty |
Window frame | - |
Couplings | Not required3310 Slimline coupler3312 Slimline coupler3197 Slimline coupler3705 Reinforced coupler6975 Reinforced couplerLightweightStructural |
Extensions | Not required2455 Head sectionAccommodates proprietary trickle ventilators. 3300 Add-onAllows additional clearance for hinges. 3301 Add-onAccommodates proprietary trickle ventilators. 3302 Add-onFrame build-up for conservatories. 3336 Add-onProvides clearance over existing plaster or tiling. 3340 Add-onReveal liner adaptor. |
Architraves | Not required1044 D-mould30 mm wide. 1087 Architrave40 mm wide. 1178 Quadrant19 mm. 3341 Add-onArchitrave adaptor. 3342 Architrave30 mm wide. 3343 Architrave35 mm wide. |
Bay window corner posts | Not required3196 Bay postFixed 135° angle. 3313/3327 Slimline bay pole and adaptorAngles from 138°-222°. 6916/ 3311 Bay pole and adaptorAngles from 90°-270°. 6920 90° Square corner postLightweightStructuralAs drawing ___ |
Weather bars | Not required3303 Head drip3306 Weather bar |
Projecting sill | Not required3338 Projecting sill150 mm. 3339 Projecting sill180 mm. 3258 End capFor 3338 Projecting sill. 3259 End capFor 3339 Projecting sill. |
Stub-sill | Not required3337 Stub-sill95 mm. 3257 End capFor 3337 Stub-sill. |
Colour | RAL 9016 Traffic WhiteDecoroc patented coating system. Colour: RAL ___Insert requirements. Wood grain foil laminate. Finish: ___Insert requirements. |
Glazing | - |
Type | Double glazedSingle glazedTriple glazed |
Options | Not requiredGeorgian barLeaded lights |
Ironmongery | As section P21Concealed hingesFull perimeter locking |
Ventilation | Not requiredProprietary ventilation device: ___ |
Standard product features | Accreditation (BS 7412, BS 6375, PAS 24): - Sizes tested (maximum):
- Performance:
Seals and gaskets: Main profiles supplied with high-performance integral multifunctional seal and gasket. Reinforcing: Galvanized steel profiles optimised for strength and secure hardware attachment. Fabrication:
Hardware:
Thermal insulation:
Acoustic performance:
|
Product Options | Framing:
Window styles:
Glazing:
Ancillaries:
Ventilation: Proprietary ventilation devices can be fitted to the windows in compliance with Building Regulations. Fixing:
Security:
|
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | - | 2 | 1.3 |
![]() | Revit 2016 | 3 | 2.0 |
