Heritage 2800 Flush Window - C57

Verified by manufacturer over a year ago

Deceuninck Ltd

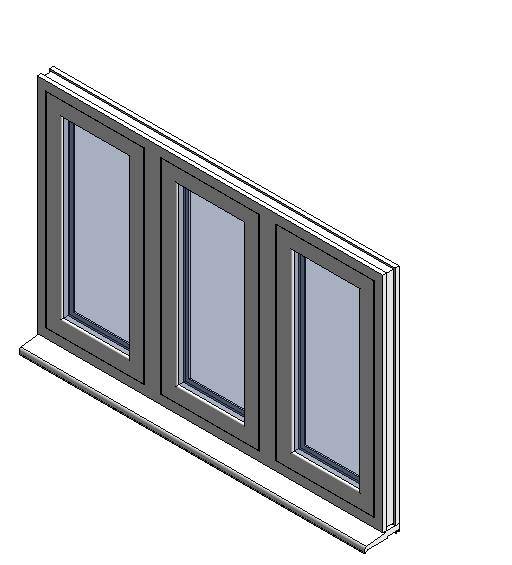

Opening light next to a fixed light next to an opening light with a flush external finish and decorative internal design.

Jump to:
BOS
+44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U flush casement windows, available in range of styles in three standard finishes.


Dedicated profile and hardware has resulted in a technically advanced system ideal for commercial projects. With one sash size (64 mm), two frame sizes (55 mm & 70 mm), and a slim (70 mm) transom/mullion option, the system is available in 26 laminate colourways from stock providing the ultimate in convenience regarding supply.


Features and benefits:

  • Enhanced security rating.
  • Multiple frame options available.
  • The Heritage 2800 flush window and door system offers the best in weather performance, energy efficiency and security.

General information

Color

White

Guidance for specification option:

Colour RAL 9016.

Material

PVC-U

Shape

Rectangle

Length

1500 mm

Width

1000 mm

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/31 PVC-U windows

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Casement Window (PVC-U) / Flush

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Dimensions and configurations

Top hung.

Side hung.

Multilights.

Guidance for specification option:

Combining opening / dummy sashes.

Product performance

-

Safety

-

Security level

To PAS 24.

Environmental

-

Acoustic performance rating

Rw (C ; Ctr) 43 (-2 ; -5) dB.

Thermal

-

Whole window U-value

0.84 W/m²k.

Frame

-

Reinforcement

Galvanized steel profiles.

Guidance for specification option:

Optimised for strength and rigidity with optional thermal chamber insulator for enhanced thermal performance and screw retention.

Colour and texture

White, RAL 9016.

Glazing or infill

-

Requirements

3—40 mm thick.

Hardware

Guidance for specification option:

Dedicated hardware consult manufacturer for options.

Operation

-

Type

Manual.

Ancillaries

Frame extensions.

Cills.

Coupling members.

Guidance for specification option:

Lightweight and structural.

Cavity size

17.5 mm.

Manufacturer guidance

Cavity depth requirement.

Fabrication

Fully welded.

Mechanically joined.

Transom

70 mm.

Manufacturer guidance

Frame transom.

Outer frame

55 mm.

70 mm.

Seals

High-performance integral multifunctional seal/gasket.

Glazing bar

Not required.

Georgian bar.

Sustainability data

Material

PVC-U

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
