Heritage 2800 Flush Casement - Single Opener - C3
Verified by manufacturer over a year ago

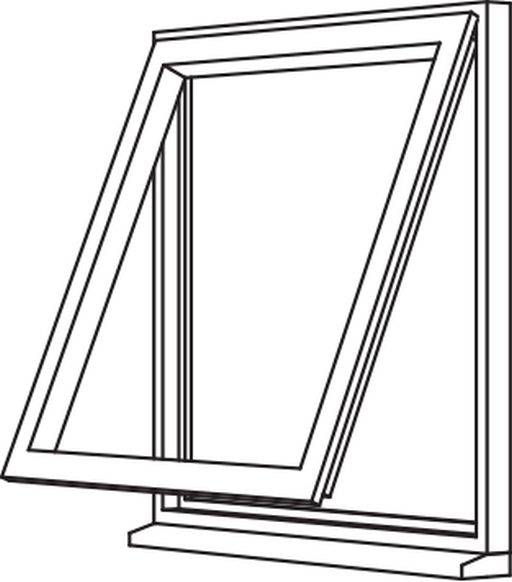

Opening light (top hung) style window with a flush external finish and decorative internal design.
Application
Suitable for commercial projects.
Description
PVC-U flush casement windows, available in range of styles in three standard finishes.
Dedicated profile and hardware has resulted in a technically advanced system ideal for commercial projects. With one sash size (74 mm), two frame sizes (55 mm & 70 mm), and a slim (70 mm) transom/mullion option, the system is available in 26 laminate colourways from stock providing the ultimate in convenience regarding supply.
Features and benefits:
- The Heritage 2800 flush window and door system offers the best in weather performance, energy efficiency and security.
- Available in: White - RAL 9016 (standard), Laminated foil, Decoroc colour (RAL).
- Environmental product declaration: EPD-QKE-20150313-IBG1-EN.
General information
Shape | Rectangle |
Color | White Guidance for specification option: RAL 9016 (standard). Other Guidance for specification option: Laminated foil, Decoroc colour (RAL). |
Material | PVC-U |
Warranty description | Guidance for specification option: Manufacturer warranty. |
Size | Guidance for specification option: Specification dependant. |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Standard | To BS 7412. |
Third-party certification | BSI Kitemark. |
Dimensions and configurations | Top hung flush casement. |
Product performance | |
Fire performance | |
Fire egress | Not required.Required.Guidance for specification option: Yale F2 egress hinge, Yale Defender egress hinge, Cotswold egress hinge, Nico egress hinge. |
Weather performance | |
UK exposure category | To BS 6375, TCI Class A4 (1600 Pa).Guidance for specification option: Steel Class AE2400 (2400 Pa). |
Air permeability | To BS 6375, Class 4 (600 Pa). |
Watertightness | To BS 6375, Class 9A. |
Resistance to wind load | To BS 6375, Class A4 (1600 Pa). |
Durability | |
Operation and strength characteristics | Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3. |
Loadbearing capacity of safety devices | Not required.Yale Defender Restricted hinge (350 N).Nico Restricted hinge (350 N).Cotswold Sinidex Restricted hinge (350 N).VBH Delta Restricted hinge (350 N). |
Safety | |
Security level | To PAS 24. |
Environmental | |
Frame to glazing ratio (maximum) | Specification dependant. |
Background ventilation | Not required.Proprietary ventilation device. |
Acoustic performance rating | Rw (C ; Ctr) 35 (-2 ; -5) dB.Rw (C ; Ctr) 38 (-1 ; -4) dB. |
Thermal | |
Whole window U-value | Guidance for specification option:
|
British Fenestration Rating Council Window Energy Rating | A++ to C. |
Frame | |
Profile | To BS EN 12608.Guidance for specification option: Hollow PVC-U decorative profile manufactured in accordance with BS EN 12608. |
Reinforcement | Galvanized steel. |
Colour and texture | White - RAL 9016.Guidance for specification option: Standard. Laminated foil.Decoroc colour (RAL). |
Ventilator | Not required.Proprietary ventilation device. |
Glazing or infill | |
Requirements | Provide internal beads.Factory glazing.Site glazing by others. |
Hardware | Not required.Proprietary restrictor device. |
Operation | |
Type | Manual. |
Fixing features | Through frame fasteners.Fixing lug. |
Outer frame size | 55 mm. 70 mm. 85 mm. |
Transoms and mullions size | 70 mm. 85 mm. 110 mm. |
Joints | Cruciform joints. Mechanically joined. 'T' joints. Welded. |
Couplings | Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. Manufacturer guidanceWindow frame couplings. |
Extensions | Not required. 2455 Head section. Guidance for specification option: Accommodates proprietary trickle ventilators. 3300 Add-on. Guidance for specification option: Allows additional clearance for hinges. 3301 Add-on. Guidance for specification option: Accommodates proprietary trickle ventilators. 3302 Add-on. Guidance for specification option: Frame build-up for conservatories. Manufacturer guidanceWindow frame extensions. |
Architraves | Not required. 1044 D-mould. Guidance for specification option: 30 mm wide. 1087 Architrave. Guidance for specification option: 40 mm wide. 1178 Quadrant. Guidance for specification option: 19 mm. 3341 Add-on.. Guidance for specification option: Architrave adaptor. |
Bay window corner posts | Not required. 3313/3327 Slimline bay pole and adaptor. Guidance for specification option: Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Guidance for specification option: Angles from 90°-270°. 6920 90° Square corner post. 3196 Bay post. Guidance for specification option: Fixed 135° angle. |
Weather bars | Not required. 3303 Head drip. 3306 Weather bar. |
Projecting sill | Not required. 3338 Projecting sill. Guidance for specification option: 150 mm. 3339 Projecting sill. Guidance for specification option: 180 mm. 3258 End cap. Guidance for specification option: For 3338 Projecting sill. 3259 End cap. Guidance for specification option: For 3339 Projecting sill. |
Stub-sill | Not required. 3337 Stub-sill. Guidance for specification option: 95 mm. 3257 End cap. Guidance for specification option: For 3337 Stub-sill. |
Type | Double glazed. Single glazed. Triple glazed. |
Options | Not required. Georgian bar. Leaded lights. |
Beading | Internal. |
Type | Decorative 28 mm. Other. Guidance for specification option: Styles available for other glazing thicknesses. |
Hinges | Yale F2 hinge. Yale Defender hinge. Cotswold Sinidex hinge. Nico hinge. Manufacturer guidanceHardware hinges. |
Sash | Manufacturer's standard. Guidance for specification option: Tender contract specific. Manufacturer guidanceHardware sash. |
Securing | Yale Encloser espag. Maco RAIL espag. Roto TSL espag. Kenricks Easy-Fit espag. Yale Shootbolt espag. Manufacturer guidanceHardware securing devices. |
ThermalTransmittance | 0.9. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
Literature
10. Specification Guide - Heritage 2800 decorative series windows & doors
