Heritage 130 mm Moulded gutter
Description

Heritage Cast Aluminium is a full range of traditional gutter profiles with simple socket or spigot joints, wet sealed and bolted. Gutters and fittings are manufactured using modern aluminium casting techniques, whilst retaining a surface texture that echoes the traditional appearance of cast iron.

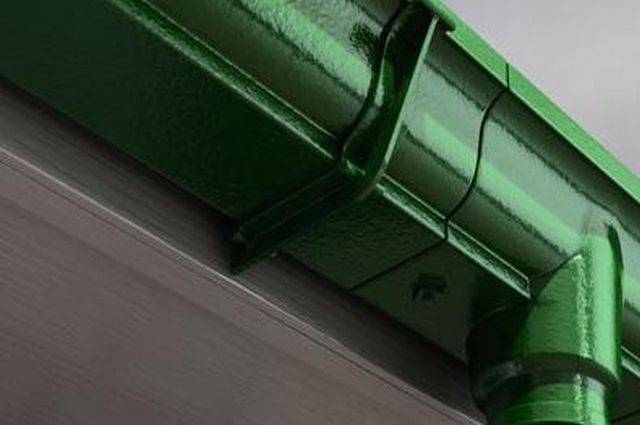

Heritage Moulded spigoted cast aluminium gutters have a sharply featured decorative profile (Moulded ogee no. 46). Three sizes and two gutter lengths are available.

General information

Material

Cast aluminium: From commercial LM2 and LM6 grades of aluminium alloy to BS EN 1559, BS EN 1676 and BS EN 1706

Thickness: 4 mm

Uniclass 2015

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters

Product Reference

Heritage MG1 130 mm Moulded gutter

Colour/ Finish

Plain mill finish

RAL 1011m Brown Beige

Polyester powder-coated.

RAL 1013m Pearl White

Polyester powder-coated.

RAL 1021m Cadmium Yellow

Polyester powder-coated.

RAL 2002m Vermilion

Polyester powder-coated.

RAL 3003m Ruby Red

Polyester powder-coated.

RAL 3005m Wine Red

Polyester powder-coated.

RAL 5003m Sapphire Blue

Polyester powder-coated.

RAL 5010m Flower Blue

Polyester powder-coated.

RAL 6005m Moss Green

Polyester powder-coated.

RAL 6018m Yellow Green

Polyester powder-coated.

RAL 7005m Mouse Grey

Polyester powder-coated.

RAL 7006m Beige Grey

Polyester powder-coated.

RAL 7012m Basalt Grey

Polyester powder-coated; also available in a textured finish.

RAL 7015m Slate Grey

Polyester powder-coated; also available in a textured finish.

RAL 7016m Anthracite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7024m Graphite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7036m Platinum Grey

Polyester powder-coated.

RAL 7037m Dusty Grey

Polyester powder-coated.

RAL 7038m Agate Grey

Polyester powder-coated; also available in a textured finish.

RAL 8017m Chocolate Brown

Polyester powder-coated.

RAL 8019m Grey brown

Polyester powder-coated.

RAL 9006m Metallic Silver

Polyester powder-coated.

RAL 9006g Metallic Silver (80% Gloss)

Polyester powder-coated.

RAL 9016m White

Polyester powder-coated; also available in a textured finish.

RAL 9017m Black (60% Gloss)

Textured Black

Bespoke, RAL or BS

Polyester powder-coated. Consult literature for details and insert requirements.

Gutters

MG1/196, length 1830 mm

MG1/199, length 610 mm

As drawing ___

Contractor's choice

Fittings

-

Union clips

MG1/213

As drawing ___

Contractor's choice

Stop ends

MG1/214 right hand internal stop end

MG1/215 left hand external stop end

As drawing ___

Contractor's choice

Running outlets

MG1/204 single spigot running outlet, 76.5 mm diameter

MG1/205 single spigot running outlet, 63 mm diameter

MG1/253 single spigot running outlet, 102 mm diameter

MG1/358 single spigot running outlet, 72 mm square

MG1/359 single spigot running outlet, 102 x 76 mm rectangular

MG1/360 single spigot running outlet, 102 mm square

As drawing ___

Contractor's choice

Angles

MG1/200 90° external angle

MG1/201 90° internal angle

MG1/202 135° external angle

MG1/203 135° internal angle

As drawing ___

Contractor's choice

Brackets/ Rafter arms

MG1/216 fascia brackets

632915 26° top fix rafter arms

632916 40° top fix rafter arms

632917 26° side fix rafter arms

632918 40° side fix rafter arms

632919 drive in brackets

As drawing ___

Contractor's choice

Standard product features

Material:

  • Cast aluminium: From commercial LM2 and LM6 grades of aluminium alloy to BS EN 1559, BS EN 1676 and BS EN 1706.
  • Thickness: 4 mm.

Dimensions:

  • Internal: Width, 130 mm.
  • External: Width, 139 mm; depth, 102 mm.

Weight:

  • 610 mm length: 1.8 kg.
  • 1830 mm length: 5.4 kg.

Product Options

Colour/ Finish:

Polyester powder coated to BS EN 12206-1: 2004. The standard range of colours is produced with a 30% gloss finish unless otherwise stated. Coating to have BBA certificate.
