Heraklith® Tektalan A2 Smarttec - Soffit Insulation
Verified by manufacturer 2 months ago
Tektalan A2 Smarttec 50 mm
Tektalan A2 Smarttec 50 mm
ISO 9001 Quality Management
Certificate type
Heraklith® Tektalan A2 SmartTec is a rock mineral wool soffit insulation, with a decorative wood wool facing for fire, thermal and acoustic insulation for metal ribdeck and concrete soffits and walls.
Application
Most commonly used in soffit insulation applications such as:

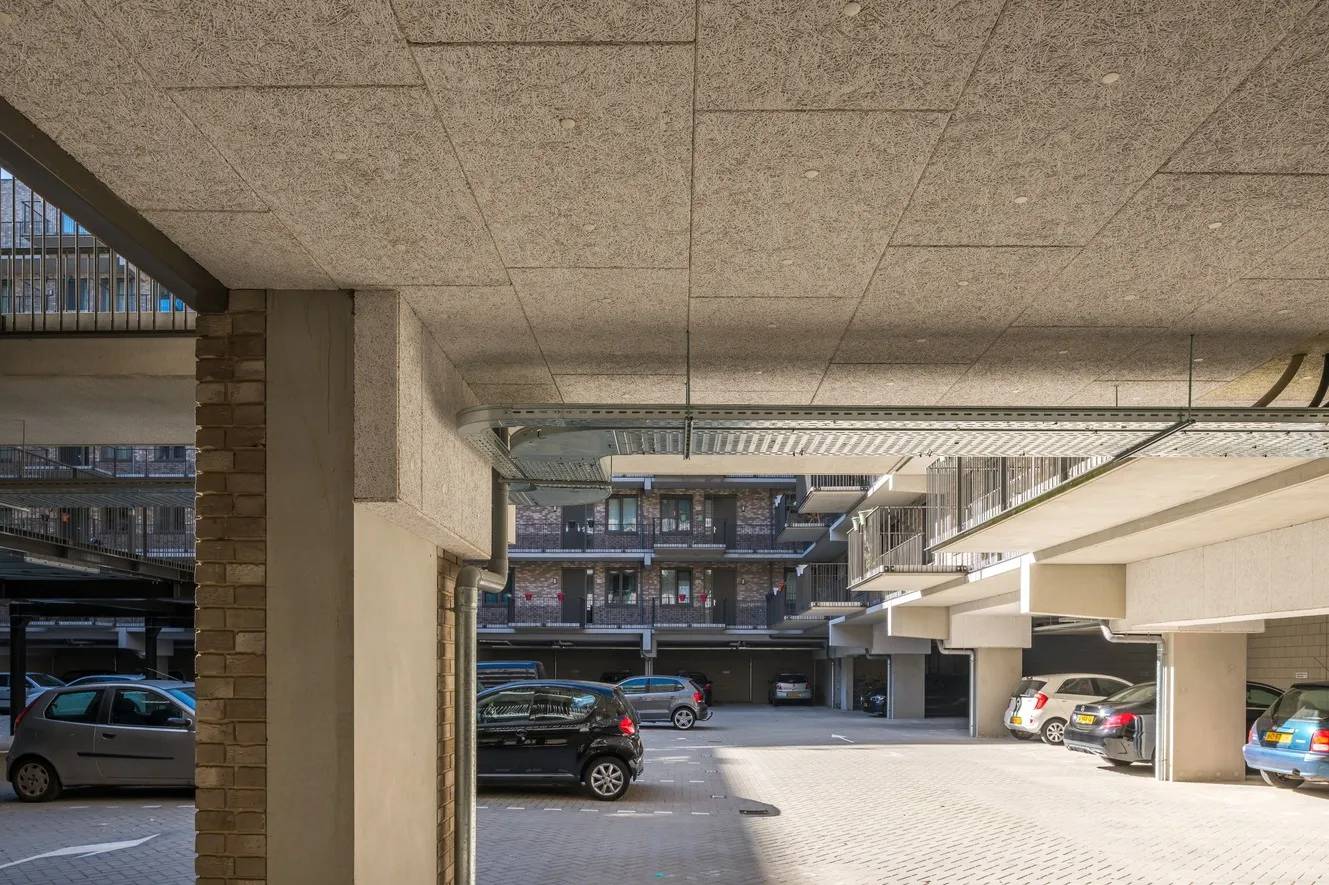

- Underground car parking.
- Loggias and balconies.
- Technical rooms.
- Data centres.
- Infrastructure.
Description
Heraklith® Tektalan A2 SmartTec is a non-combustible soffit insulation board, tested to provide a fire resistance of up to 180 minutes REI to concrete floors. It is non-combustible, with a Euroclass A2-s1, d0 reaction to fire classification.
Features and benefits:
- Provides fire, thermal and acoustic performance.
- Available as standard in a nature tone RAL1015 (Light Ivory), or in any RAL colour upon request.

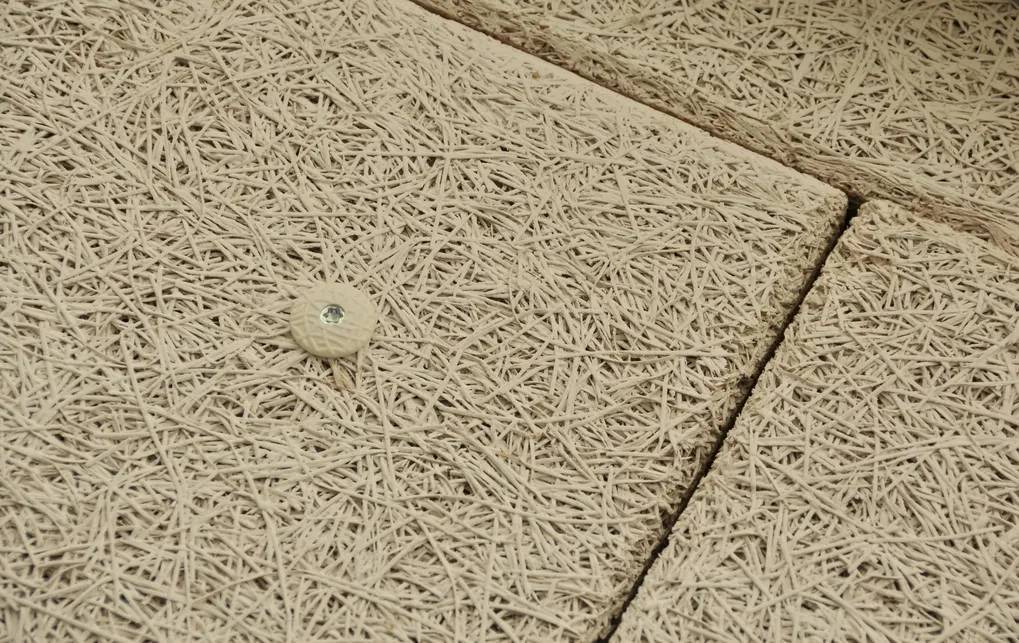

- Aesthetically pleasing; finished with bevelled edges.
- 2 fixings per panel, save cost and install time.
General information
Color | Ivory White Other Manufacturer guidanceNature tone (RAL 1015) as a standard, can be factory finished in any RAL colour. |
Finish | Painted Manufacturer guidanceWood wool bevelled all round, Rock Mineral Wool insulation square sides. |
Material | Rock mineral wool Guidance for specification option: Wood wool and rock mineral wool. |
Shape | Rectangle |
Length | 1000 mm |
Width | 600 mm |
Height | 50 mm 75 mm 100 mm 125 mm 150 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K11/851 Wood wool board/ slab K11/890 Board K11/885 Fire protection board K13/170 Acoustic panel lining P10/185 Soffit insulation K11/60 Board K11/54 Fire protection board K13/170 Acoustic panel lining |
Specification data - Mineral wool slab insulation
Standard | To EN 13168:2012. |
Thickness | 50 mm. |
Facing | Wood wool (10 mm). |
Edges | Bevelled. |
Density | Wood wool: 550–750 kg/m³. |
Thermal conductivity (maximum) | Wood wool: 0.095 W/m·K. |
Fire performance | REI 180 (if treated in accordance with classification Report no. 20859) and Non-Combustible Euroclass A2-s1,d0 to BS EN 13501-1. |
Thermal resistance | 1.25 W/mK. |
Sound absorption coefficient | 0.80 |
Noise reduction coefficient | 0.90 |
Form | Composite panel. |
Purpose | Soffit insulation. |
Sound absorption | Class A to BS EN ISO 11654 / ASTM-C423. |
Reaction to fire | Non-combustible Euroclass A2-s1,d0 to BS EN 13501-1. |
Fire resistance | REI 180 (if treated in accordance with classification report no. 20859) . |
Size (length x width) | 1000 x 600 mm. |
Surface pattern | 2 mm wood fibre. |
Colour | RAL 1015 (Light Ivory). Guidance for specification option: Standard. Manufacturer guidanceTektalan A2 wood wool boards can be factory finished in any RAL colour; consult manufacturer and insert requirements. |
Accessories | 75 mm DDS Plus Concrete Screw. |
Durability | The product will have a life equivalent to that of the structure in which it is incorporated. |
Handling | Heraklith® Tektalan A2 Smarttec is easy to handle and install. Refer to the Installation Guide: https://pim.knaufinsulation.com/files/download/knauf_insulation_heraklith_installation_guide-en-uk_feb23.pdf |
Storage | Heraklith® Tektalan A2 Smarttec is supplied loose on a hood wrapped pallet and should be stored indoors at all times. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany Guidance for specification option: Simbach am Inn |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 8.07 kg CO₂ eq/unit Self declared |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001 Quality Management Systems
Literature

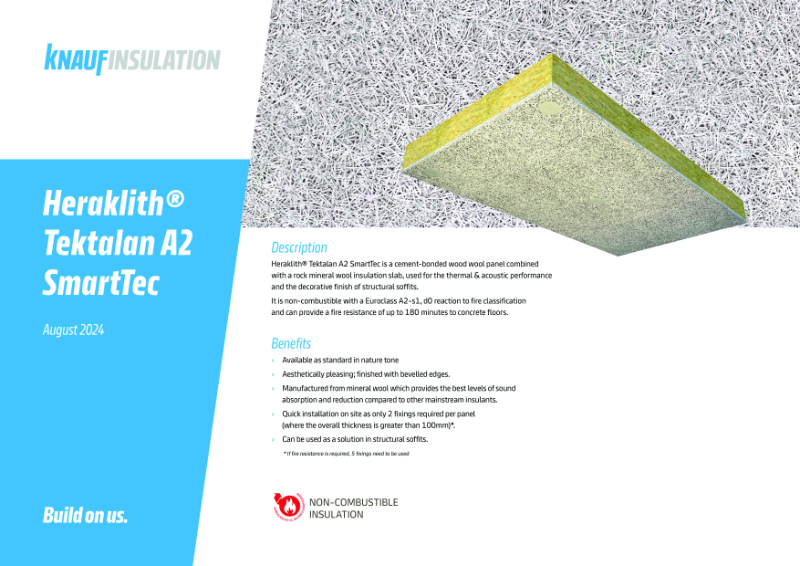

Knauf Insulation Heraklith® A2 SmartTec - Product Datasheet

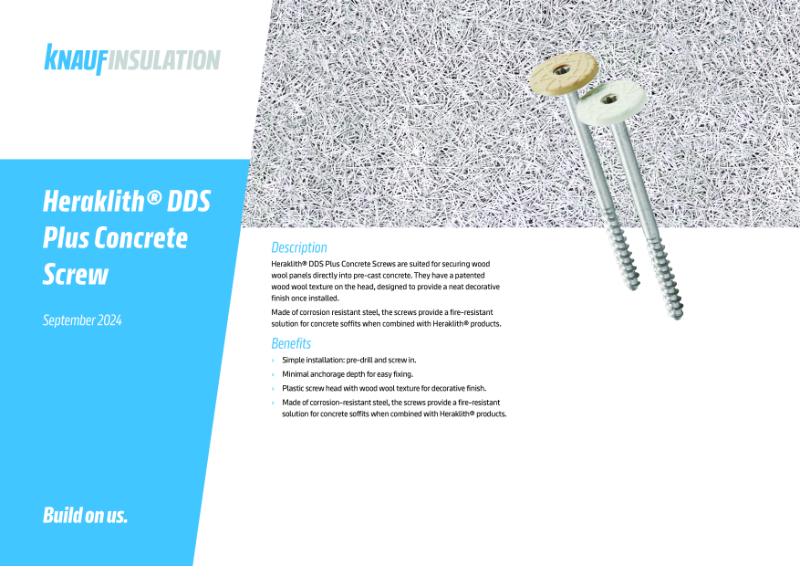

Knauf Insulation Heraklith® DDS Plus Concrete Screw - Product Datasheet
Knauf Insulation Heraklith® Installation Guide
