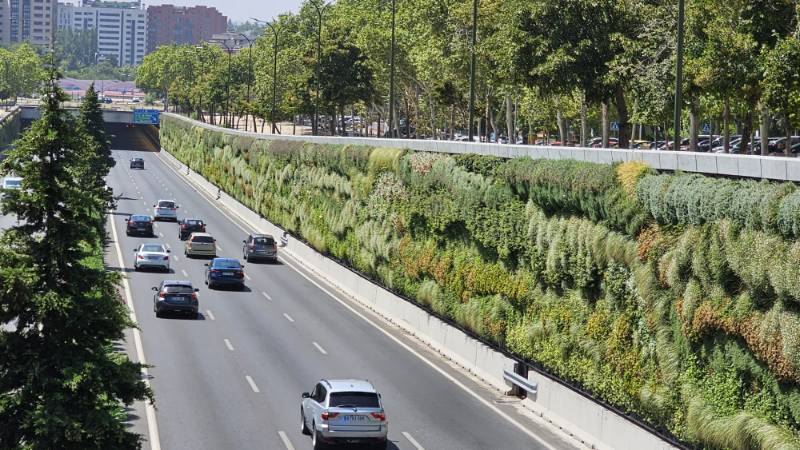

Helping Hand Bracket - Modular Living Green Wall System - Fytotextile - Cladding System
Verified by manufacturer 30 days ago
Product Environment Footprint (PEF)
Certificate type
Certifire Certificate
Certificate type
Certificate of constancy of performance
Certificate type
Modular Living Green Wall System for internal and external applications.
Application
For indoor and outdoor green wall installation.
Description
A Modular Living Green Wall System composed of three flexible, organic and synthetic fabric layers of reduced thickness. All sides are interconnectable and can have a maximum capacity of 36 (6 x 6) or 49 (7 x 7) plants. Each module includes a top flange for assembly and checking the drip irrigation system.
Each module connects with each other using a metallic framework that is attached to an existing resistant wall, creating a ventilated façade.
Waterproof layer:
The waterproof membrane prevents water from penetrating substructures while also protecting them.
Irrigation layer:
The inner layer allows for optimal water distribution for the plants and retains beneficial moisture (2–3 L/m).
Breathable layer:
The exterior layer has good air flow at low speed winds which provides optimal aeration for the roots.
Features and benefits:
- Easy application.
- Bespoke metallic framework designed for each installation.
- Includes an automation and irrigation system designed according to the size and requirement of the application.
- Complies with fire classification B-s2, d0.
- Suitable for Internal and external use.
- Flexible and customisable.
- All modules include a top flange for assembly and checking the drip irrigation system.
- Able to integrate thermal insulation for building facade improvement.
- Available in a maximum capacity of 36 pocket (6 x 6) or 49 pocket (7 x 7) modules.
General information
Color | Black |
Finish | Other |
Material | Steel Fabric Aluminium Soil Other |
Shape | Rectangle Square Circle Other |
Width | 455 mm 520 mm 680 mm 725 mm 1000 mm |
Height | 430 mm 535 mm 695 mm 730 mm 1000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q38/120 Modular green wall system Q32/275 Prefabricated plant containers Q31/292 Prefabricated plant containers |
Specification data - Modular unit vertical planting systems
Secondary support structure | Horizontal carril profile (FYTVOL) fixes the module to the galvanized steel framework. |
Waterproof layer | Integrated waterproofing back layer (FYT-RCF). |
Irrigation | Drip line irrigation system with a required pressure of 1.52 bars.Guidance for specification option:
|
Modular panels | |
Type | Multilayer fabric system, made of a modular matrix of pockets attached to galvanized steel profiles.Guidance for specification option:
|
Growing medium | Organic growing medium. |
Planting | Manufacturer guidance
|
Gutters | 150 x 100 mm gutters (aluminium, steel or plastic) to connect to drainage outlets. |
System accessories | Not required.Remote control monitoring.Recirculated water system. |
Type | Fytotextile-FR®. Guidance for specification option: Module with Class B-s2, d0. Manufacturer guidanceFytotextile® module type. |
Fire performance | B-s2-d0. |
System thickness | 20 mm (module thickness); 130 mm (system thickness). |
Weight | 2.1 kg (module weight without planting). |
Electrical requirements | 220 V/ 16 A. |
Tear strength | 7 kg/ pocket. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Steel Fabric Aluminium Soil Other |
Recyclability | Partially recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 4 |
 IFC | - | 2 |
Third party certifications
Literature
Fytotextile technical data sheet
Relevant projects dossier
Constructive details Fytotextile system
Case studies
Quadrant House
