Helifix TimTie
Verified by manufacturer 4 days ago
New build cavity wall tie for masonry to timber frame constructions
Application
Suitable for securing new build outer leaf of masonry to timber frame or OSB panels constructions
Description

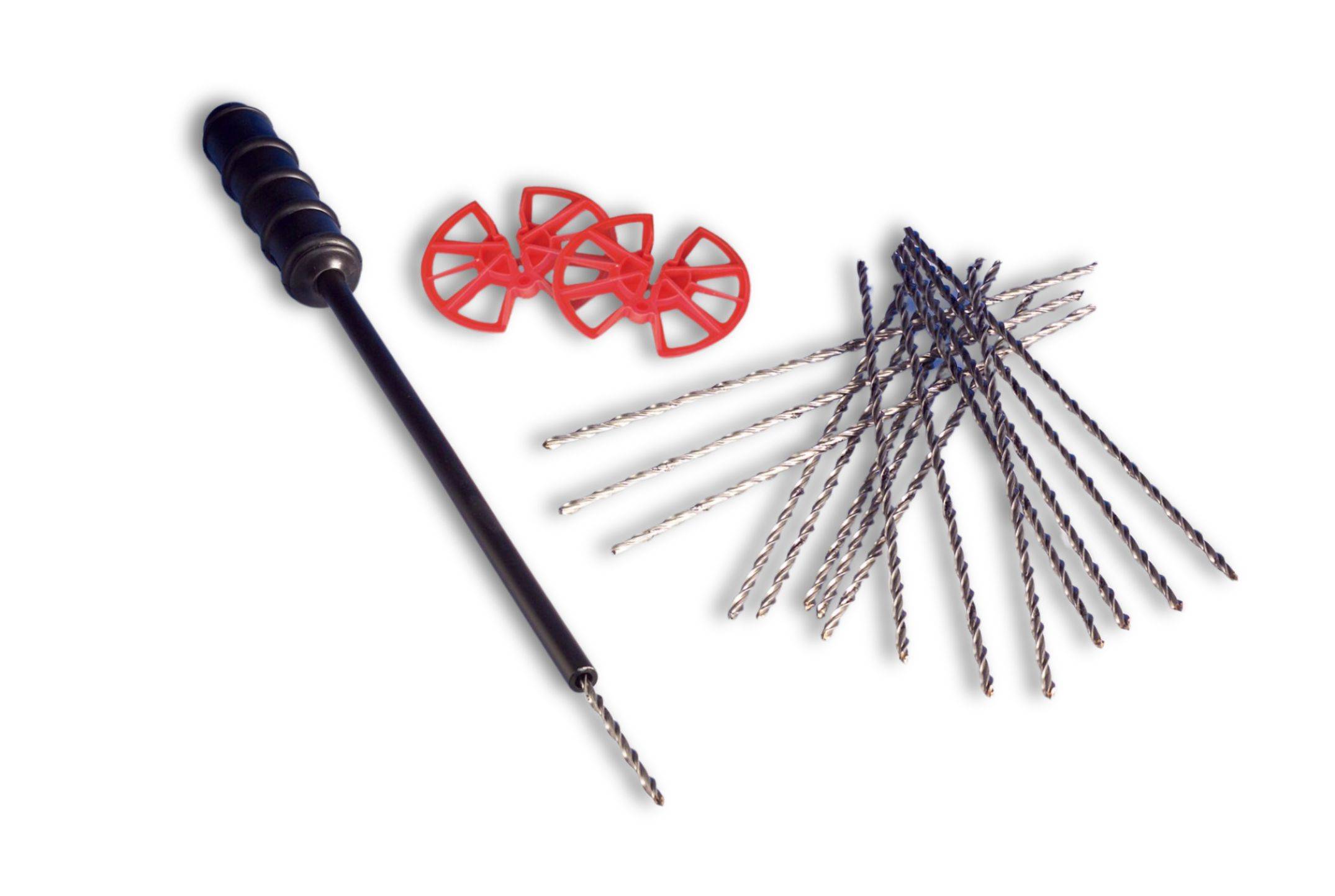

A stainless steel wall tie with self-tapping helical profile. The ties are hammer-driven into the timber studs through a cavity and insulation (if fitted).
Minimum tie density (guide only): 4.4 ties per m².
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option: Available in 304 (as standard) or 316 grades (at a premium price). |
Shape | Other |
Length | Bespoke Guidance for specification option: TimTies should always be scrutinised for their suitability in regard to a differential movement and wind loading Manufacturer guidanceStandard lengths include: 170, 195, 220, 245, 270 and 295mm. Other lengths are available on request. |
Width | 4.5 mm 6 mm Guidance for specification option: These are outside of the UKCA certification therefore a bespoke specification is required prior to supply. |
Height | 4.5 mm 6 mm Guidance for specification option: These are outside of the UKCA certification therefore a bespoke specification is required prior to supply. |
Warranty description | Other |
Uniclass | |
CAWS | F30/220 Wall ties F30/26 Wall ties |
Product range |
Specification data - Stainless steel drive ties
Classification data | |
Designation | Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Diameter | 4.5 mm (nominal). 6 mm (nominal). Guidance for specification option: These are outside of the UKCA certification therefore a bespoke specification is required prior to supply. |
Length | 170 mm. 195 mm. Guidance for specification option: For 50 mm cavity. 220 mm. Guidance for specification option: For 50 mm cavity. 245 mm. Guidance for specification option: For 75 mm cavity. 270 mm. Guidance for specification option: For 100 mm cavity. 295 mm. Guidance for specification option: For 125 mm cavity. Manufacturer guidanceClassification of TimTie, in accordance with BS EN 845-1:2013+A1:2016: Type 6–45 mm timber penetration. For cavities wider than 125 mm consult Helifix Technical Sales Team. For properties of three stories or above please consult with Helifix Sales Office regarding suitability. |
Product Reference | TimTie |
Accessories | None. Insulation retaining clip. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Guidance for specification option: Available in 304 (as standard) or 316 grades (at a premium price). |
Expected Life | 50 year |
