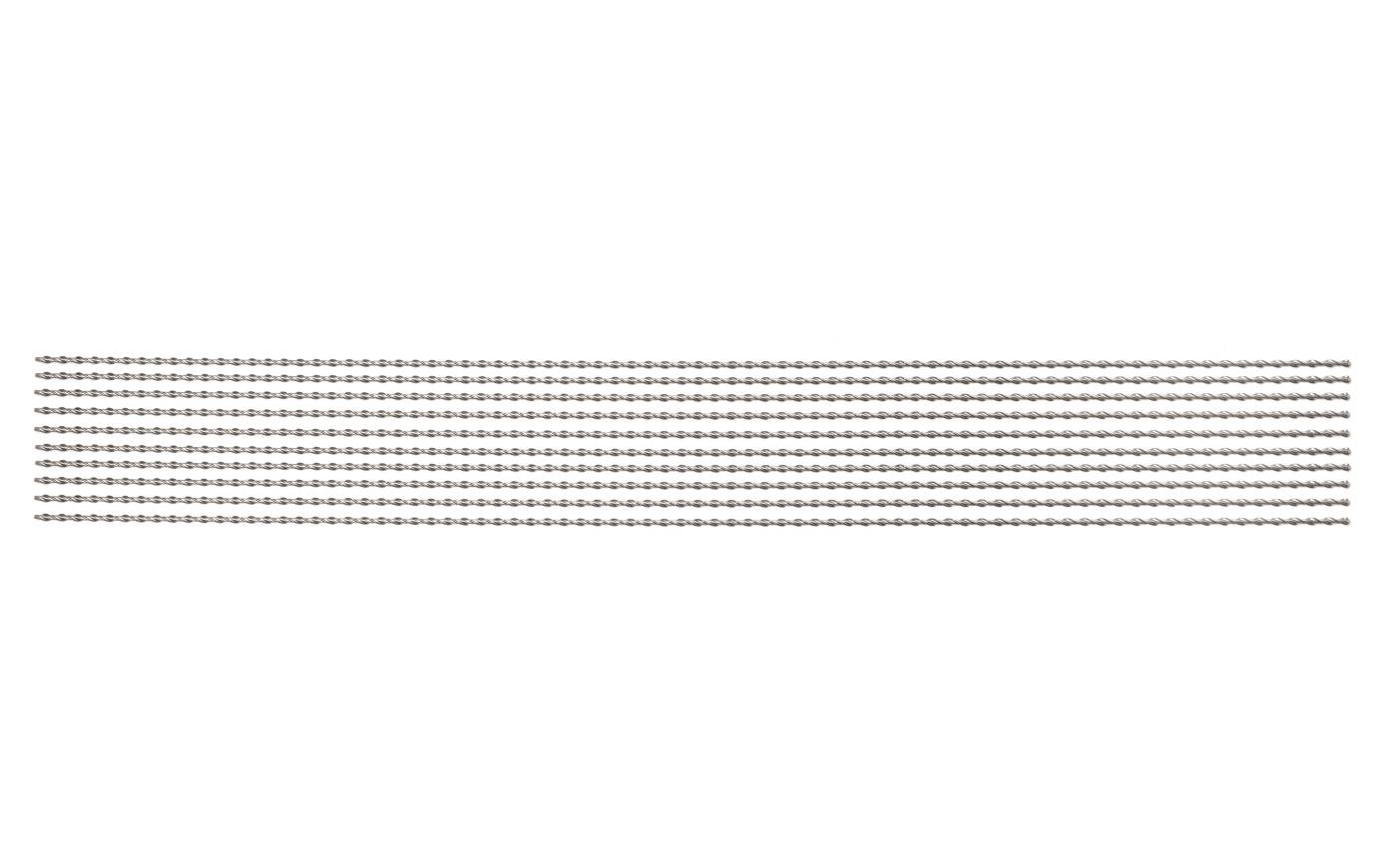

Helifix Movement Joint Tie

Verified by manufacturer 1 day ago

Leviat

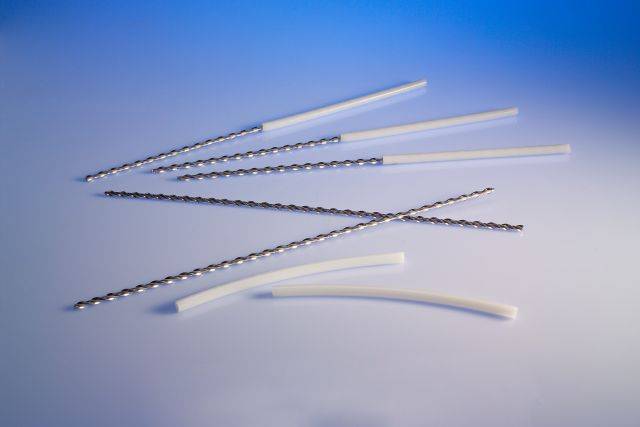

HeliBar 6 x 400mm, c/w a 200mm de-bonding sleeve

Jump to:
+44 (0) 114 275 5224 Website

Application

Providing lateral restraint at the locations of movement joints.

Description

Helical, stainless steel slip tie, designed to provide lateral restraint across movement joints.

Features and benefits:

  • The tie is bedded in mortar at one side of the joint with high performance specialist grout; the other end is fitted into a sleeve, bonded to the other side of the joint, to allow axial movement.
  • Used in lengths of 400 mm
  • Comprises stainless steel helical reinforcing bars
  • Rapid economical solution for securing new created expansion joints
  • Avoids expensive taking down and rebuilding
  • Minimal disruption to building’s fabric
  • Fully concealed once installed

General information

Color

Silver

Finish

Stainless steel

Material

Stainless steel

Manufacturer guidance

Manufactured from grade 1.4301 (304) as standard; also available in 1.4401 (316) grade on request at a premium price.

Shape

Other

Length

400 mm

Width

6 mm

Height

6 mm

Warranty description

Other

Uniclass

Pr_20_85_84_33 General-purpose slip tiesPrimary

CAWS

F30/282 Slip ties

Product range

Accessories

Specification data - General-purpose slip ties

Classification data

Material

Stainless steel, grade 1.4301 (304).
Stainless steel, grade 1.4401 (316).

Length

400 mm.

Guidance for specification option:

Used in 300–400 mm lengths.

Design embedment length (minimum)

400 mm.

Additional requirements

-

Mortar joint thickness (minimum)

10 mm.

Product Reference

HeliBar with De-bonding Sleeve

Grout

Crack Bond TE3.
Epoxy EX1.
Helibond Grout.
PolyPlus.

Diameter

6 mm.

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Stainless steel

Manufacturer guidance

Manufactured from grade 1.4301 (304) as standard; also available in 1.4401 (316) grade on request at a premium price.

Expected Life

50 year

Literature

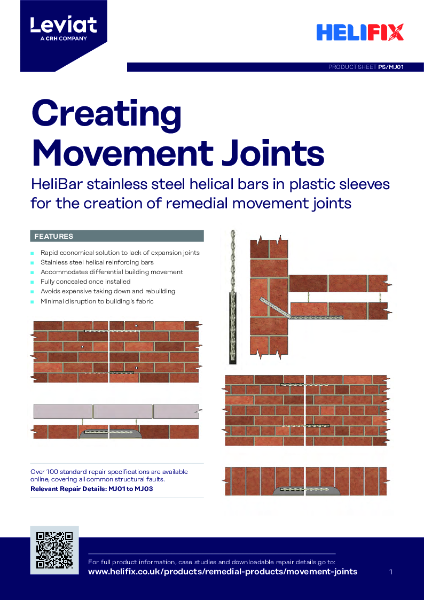

Leviat Helifix Product Sheet - Movement Joints

Leviat Helifix Product Sheet - Movement Joints
