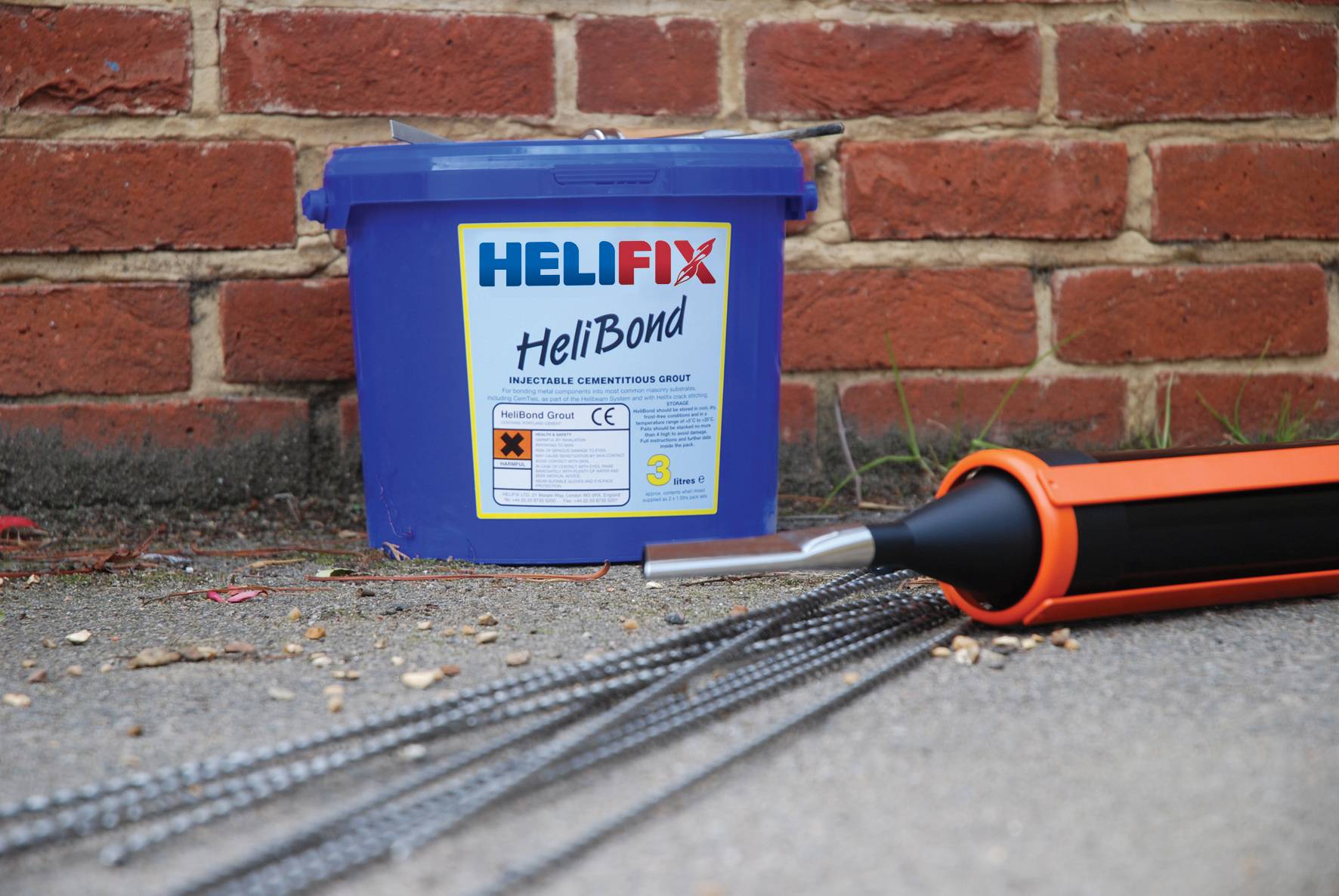

Helifix HeliBar - Helical Bar for Masonry Repair
Verified by manufacturer 26 days ago
EPD
Certificate type
Helical profile bar for masonry repair, strengthening and wall reconnection in both remedial and new build situations.
Application
Suitable for remedial and new build applications.
- Crack stitching.
- Lintel repair and creation.
- Forming deep masonry beams.
- Horizontal structural restraint (when used with BowTie systems).
- Reconnecting separated walls.
- Securing parapet walls.
- Support existing masonry when creating new openings.
- Creating movement joints.
- Reinforcing new build masonry.
- Seismic upgrades for existing masonry.
- Repairing bridges, tunnels and arches.
Description
A helical stainless steel reinforcing bar for masonry repair and strengthening.
Features and benefits:
- Available in 1000 mm, 1500 mm, 2000 mm and 7000 mm (for approved installers only) lengths.
- Available in the following diameters: 4.5 mm, 6 mm, 8 mm, 10 mm, 12mm.
- Austenitic stainless steel grade 304 (1.4301) or 316 (1.4401).
- Combines great axial strength with flexibility.
- Accommodates differential building movement.
- No additional stresses introduced into structure.
- Generates high tensile strength with mortar (new build only) or HeliBond grout.
- Extremely economical compared with alternative methods.
- May remove or reduce the need for mass underpinning.
- Fully concealed once installed.
- Avoids expensive taking down and rebuilding.
- Minimal disruption to building’s fabric or occupants.
- Spreads structural loads to avoid secondary cracking.
- Reduces the potential for cracking in shrinkable materials.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Other Guidance for specification option: Helical. |
Length | 1000 mm 1500 mm 2000 mm 7000 mm Guidance for specification option: 7000mm - Available for Helifix approved installers only. |
Width | 4.5 mm 6 mm 8 mm 10 mm 12 mm Manufacturer guidanceDiameter. |
Height | 4.5 mm 6 mm 8 mm 10 mm 12 mm Manufacturer guidanceDiameter. |
Warranty description | Other |
Uniclass | |
CAWS | C41/530 Proprietary mortar repairs C41/530 Proprietary mortar repairs |
Specification data - Stainless steel ribbed bar reinforcement
Classification data | |
Designation | 1.4301. 1.4401. Manufacturer guidanceAustenitic stainless steel. |
Diameter | 4.5 mm. 6 mm. 8 mm. 10 mm. 12 mm. |
Length | 1000 mm. 1500 mm. 2000 mm. 7000 mm. Guidance for specification option: Available for Helifix approved installers only. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel |
Expected Life | 50 year |
Product certifications
Product certifications
EPD
EPD - Helifix Remedial Products
Literature

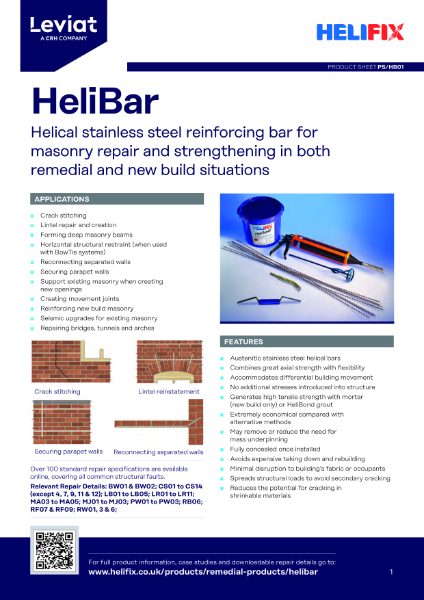

Leviat Helifix Product Sheet - HeliBar
