Height Adjustable Industrial Drain

Application

For concrete, tiled, epoxy or vinyl floors in:

  • Industrial areas.
  • Commercial kitchens.
  • Supermarkets, restaurants, airports, etc.

Description

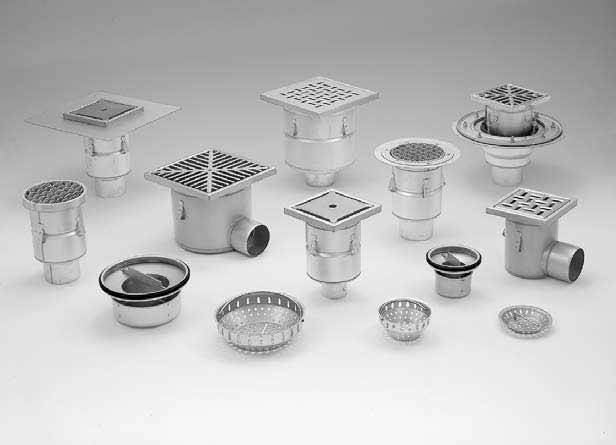

Square or circular floor drains for use with concrete, tiled, epoxy or vinyl floors. Comes with removable water trap, filter basket and sand bucket.

Features:

  • Square or circular reinforced frame.
  • Vertical or horizontal 110 mm outlet.
  • Flow capacities from 3.3–7.8 L/s.
  • For floors with liquid waterproofing membrane, sheet waterproofing membrane or no waterproofing membrane.
  • Filter unit for solid waste collection.
  • 20 mm frame height, impervious filled.
  • Gratings suitable for any load class.
  • Trap and filter basket removable to cleaning and maintenance.
  • Manufactured from stainless steel grade 1.4301 (AISI 304) as standard, 1.4404 (AISI 316L) is also available.
  • Load class according to BS EN 1253.

Applications:

For concrete, tiled, epoxy or vinyl floors in:

  • Industrial areas.
  • Commercial kitchens.
  • Supermarkets, restaurants, airports, etc.

Construction:

  • Grating.
  • Upper part.
  • Filter basket.
  • Water trap.
  • Lower part.

General information

Features

Square or circular reinforced frame

Vertical or horizontal 110 mm outlet

Flow capacities from 3.3–7.8 L/s

For floors with liquid waterproofing membrane, sheet waterproofing membrane or no waterproofing membrane

Filter unit for solid waste collection

Show more

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Height Adjustable Industrial Drain

Drain

-

Upper part

774.402.000

Floor: concrete and tiled. Frame: 200 x 200 mm, material: stainless steel grade 1.4301 (304).

774.403.000

Floor: concrete and tiled. Frame: 300 x 300 mm, material: stainless steel grade 1.4301 (304).

774.502.000

Floor: resin. Frame: 195 mm diameter, material: stainless steel grade 1.4301 (304).

774.503.000

Floor: resin. Frame: 295 mm diameter, material: stainless steel grade 1.4301 (304).

774.602.000

Floor: vinyl. Frame: 232 mm diameter, material: stainless steel grade 1.4301 (304).

774.603.000

Floor: vinyl. Frame: 332 mm diameter, material: stainless steel grade 1.4301 (304).

Lower part

Insert requirement from 'Options' below.

Grating

Insert requirement from 'Options' below.

Product Options

Drain:

To specify 1.4404 (AISI 316L), rather than 1.4301 (AISI 304), suffix S to the part number, e.g. 110.300.050 S. Consult manufacturer for details.

- Lower part, without membrane flange:

  • 760.002.110: Lower part - no membrane flange; outlet: 110 mm diameter - vertical; material: stainless steel.
  • 760.003.110: Lower part - no membrane flange; outlet: 110 mm diameter - vertical; material: stainless steel.
  • 760.003.160: Lower part - no membrane flange; outlet: 160 mm diameter - vertical; material: stainless steel.
  • 763.002.110: Lower part - no membrane flange; outlet: 110 mm diameter - horizontal; material: stainless steel.
  • 763.003.110: Lower part - no membrane flange; outlet: 110 mm diameter - horizontal; material: stainless steel.

- Lower part, with liquid membrane flange:

  • 774.002.110: Lower part - liquid membrane flange; outlet: 110 mm diameter - vertical; material: stainless steel.
  • 774.003.110: Lower part - liquid membrane flange; outlet: 110 mm diameter - vertical; material: stainless steel.
  • 774.003.160: Lower part - liquid membrane flange; outlet: 160 mm diameter - vertical; material: stainless steel.
  • 769.002.110: Lower part - liquid membrane flange; outlet: 110 mm diameter - horizontal; material: stainless steel.
  • 769.003.110: Lower part - liquid membrane flange; outlet: 110 mm diameter - horizontal; material: stainless steel.

- Lower part, with clamping flange:

  • 775.002.110: Lower part - clamping flange; outlet: 110 mm diameter - vertical; material: stainless steel.
  • 775.003.110: Lower part - clamping flange; outlet: 110 mm diameter - vertical; material: stainless steel.
  • 775.003.160: Lower part - clamping flange; outlet: 160 mm diameter - vertical; material: stainless steel.
  • 771.002.110: Lower part - clamping flange; outlet: 110 mm diameter - horizontal; material: stainless steel.
  • 771.003.110: Lower part - clamping flange; outlet: 110 mm diameter - horizontal; material: stainless steel.

Grating:

- For square drain 200 x 200 mm:

  • 790.168.000.10: Square slot grating; size: 170 x 170 mm, material: stainless steel: Load 5.000 kg.
  • 790.168.000.22: Square mesh grating; size: 168 x 168 mm, material: stainless steel: Load 1.350 kg.
  • 790.168.000.25: Square ladder grating; size: size: 168 x 168 mm, material: stainless steel: Load 5.000 kg.
  • 790.168.000.28: Square ladder grating; 8 mm thick - fully welded; size: 168 x 168 mm, material: stainless steel: Load 12.000 kg.
  • 790.168.000.60: Square HygienicPro® grating; size: 170 x 170 mm, material: stainless steel grade 1.4308 (304C); Load 7.000 kg.

- For square drain 300 x 300 mm:

  • 790.268.000.10: Square slot grating; size: 270 x 270 mm, material: stainless steel: Load 6.000 kg.
  • 790.268.000.22: Square mesh grating; size: 268 x 268 mm, material: stainless steel: Load 1.600 kg.
  • 790.268.000.25: Square ladder grating; size: 268 x 268 mm, material: stainless steel: Load 10.000 kg.
  • 790.268.000.28: Square ladder grating; 8 mm thick - fully welded; size: 268 x 268 mm, material: stainless steel; Load 7.000 kg.
  • 790.268.000.60: Square HygienicPro® grating; size: 270 x 270 mm, material: stainless steel grade 1.4308 (304C); Load 5.000 kg.

- For round drain 200 mm:

  • 790.173.000.10: Circular slot grating; size: 173 mm diameter, material: stainless steel: Load 10.000 kg.
  • 790.173.000.22: Circular mesh grating; size: 173 mm diameter, material: stainless steel: Load 2.000 kg.
  • 790.173.000.25 S: Circular ladder grating; size: 173 mm diameter, material: stainless steel grade 1.4404 (316L): Load 5.000 kg.
  • 790.173.000.28: Circular ladder grating; 8 mm thick - fully welded; size: 173 mm diameter, material: stainless steel: Load 16.500 kg.
  • 790.173.000.60: Circular HygienicPro® grating; size: 173 mm diameter, material: stainless steel grade 1.4308 (304C): Load 8.250 kg.

- For round drain 300 mm:

  • 790.273.000.10 S: Circular slot grating; size: 273 mm diameter, material: stainless steel grade 1.4404 (316L): Load 8.250 kg.
  • 790.273.000.22: Circular mesh grating; size: 273 mm diameter, material: stainless steel : Load 1.000 kg.
  • 790.273.000.25 S: Circular ladder grating; size: 273 mm diameter, material: stainless steel grade 1.4404 (316L): Load 3.250 kg.
  • 790.273.000.28: Circular ladder grating; 8 mm thick - fully welded; size: 273 mm diameter, material: stainless steel: Load 10.000 kg.
  • 790.273.000.60: Circular HygienicPro® grating; size: 273 mm diameter, material: stainless steel grade 1.4308 (304C): Load 5.000 kg.
